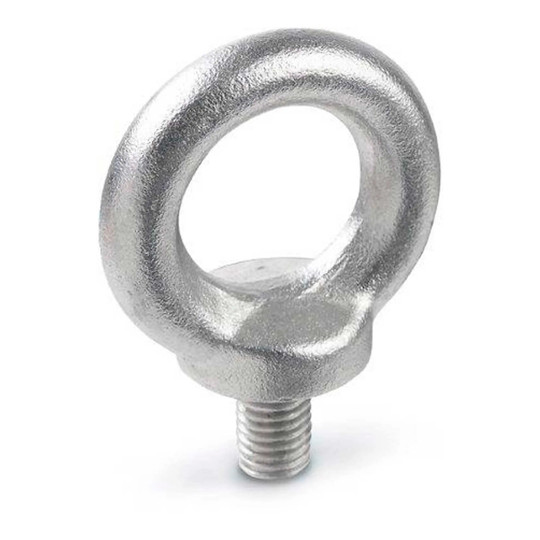

This M12 lifting eye bolt provides a threaded attachment point for buyers who need to position or lift equipment and components. Its eye ring and threaded stem support secure installation when the stem is fully seated against the mounting surface.
Constructed from 304 stainless steel with a silver finish, this DIN 580 eye bolt has a threaded M12 stem. The ring measures 2-1/16 inches high and 1/2 inch thick, and the stem length is 13/16 inch. Complete contact between the threaded stem and mounting surface is required to achieve maximum load.
Key Features:
Choose this DIN 580 M12 eye bolt when your application calls for a stainless steel threaded lifting point with the listed ring dimensions and full surface contact during installation.
| Country of Origin: | Import |
| Material: | 304 Stainless Steel, Drop-Forged |
| Product Depth: | 6" |
| Product Height: | 4" |
| Product Type: | Eye Bolts |
| Product Width: | 6" |
| Quantity Included: | 1 |
| Shipping Weight: | 4 lbs |
| Manufacturer Part Number: | 580-M12-NI |
| Eye Inside Dimension: | 1-3/16" |
| Eye Outside Dimension: | 2-1/8" |
| Safe Working Load: | 764lbs |
| Shank Diameter & Thread: | M12 |
| Shank Length: | 20.5mm in |
| Thread Length: | 13/16 in |
| Brand: | J.W. Winco |
| Finish: | Matte |
| Manufacturers Part Number: | 580-M12-NI |
| Package Quantity: | 1 |
| Pattern: | Shoulder |
| Width: | 6.00 in |
| Height: | 4.00 in |
| Depth: | 6.00 in |
