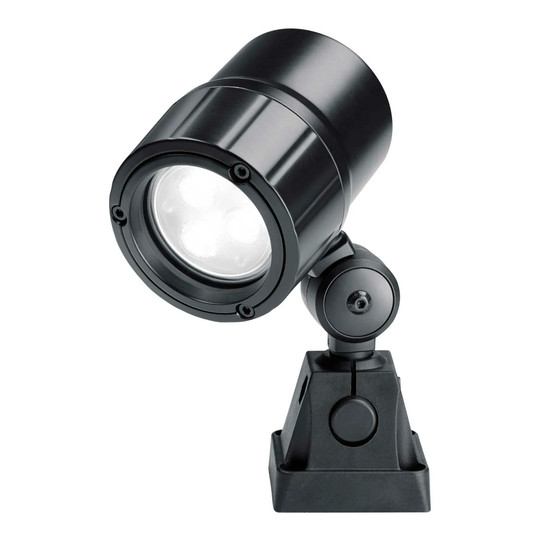

This LED machine spot light is designed for commercial and industrial buyers who need directed lighting at machinery. Its pivoting head helps users position the beam where illumination is needed.
The light operates on 22-26V DC and produces a 30-degree beam. It has a pivoting head, a sealed die-cast aluminum housing rated IP67, and a black finish. Overall dimensions are 7 in. W x 13 in. D x 6 in. H, and the unit weighs 2.9 lb.
Key Features:
- Pivoting head: Allows the light beam to be aimed toward the desired area.
- 30-degree beam: Provides focused spot illumination.
- 22-26V DC operation: Supports compatibility with 22-26V DC electrical systems.
- Sealed IP67 housing: Provides a sealed lighting enclosure.
- Die-cast aluminum construction: Provides a durable housing for machine-lighting applications.
Choose this LED spot light when a compact, pivoting machine light with 22-26V DC operation and a focused 30-degree beam fits your lighting requirements.
| Color/Finish: |
Black |
| Country of Origin: |
CN |
| Material: |
Aluminum/ Plastic/ Glass |
| Product Depth: |
7" |
| Product Height: |
6" |
| Product Type: |
Machine Lighting |
| Product Width: |
13" |
| Quantity Included: |
1 |
| Shipping Weight: |
2.9 lbs |
| Voltage: |
22-26 DC V |
| Manufacturer Part Number: |
113259000-00641174 |
| Color: |
Black |
| Length: |
3.2 in |
| Width: |
3.2 in |
| Height: |
6.3 in |
| Cord Length: |
3 ft |
| Average Life: |
50000 hr |
| Beam Angle: |
30 ° |
| Brand: |
Waldmann Lighting |
| Bulb Type: |
LED |
| CRI: |
>70 |
| Color Temperature: |
5000 K |
| Description: |
Raptor LED Spot Light, Pivoting Head, 22-26V DC, 30 Degree Beam |
| Lens: |
Glass |
| Lumens: |
460 |
| Manufacturers Part Number: |
113259000-00641174 |
| Mounting Style: |
Screw-down Flange |
| Package Quantity: |
1 |
| Type: |
Machine Light |
| Wattage: |
5 W |
| Warranty: |
5 yr |
| Certifications: |
UL, ETL/cETL, MET |
| Width: |
7.00
in
|
| Height: |
6.00
in
|
| Depth: |
13.00
in
|
