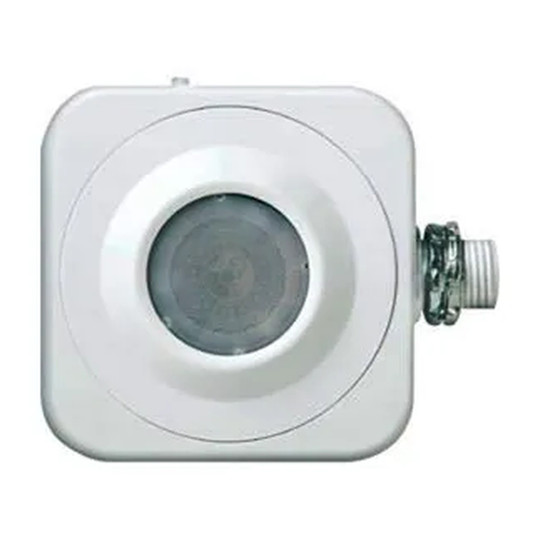

High Bay 360° Fixture-Mount PIR Occupancy Sensor

This high-bay occupancy sensor is for facility teams managing individual on/off control of T5 and T8 fluorescent lighting. It detects occupancy through passive infrared sensing to help automate lighting operation at the fixture.

The line-powered sensor switches line voltage and provides 360° coverage up to 45 ft. It mounts to the end of a lighting fixture through an extended 1/2-inch chase nipple, or installs in a 1/2-inch knockout in a fixture or junction box. A self-contained relay eliminates the need for a separate power pack, and the unit includes adjustable time delay, a 100-hour lamp burn-in timer, and a green LED indicator.

Key Features:

• 360° PIR Detection: Provides occupancy detection coverage around the mounted fixture.
• Up to 45 ft Coverage: Supports coverage for high-bay lighting control applications.
• Line-Voltage Switching: Allows the sensor to switch line voltage directly.
• Self-Contained Relay: Avoids the need for a separate power pack.
• Adjustable Time Delay: Lets users set the delay before lighting switches off.
• Fixture or Junction Box Mounting: Installs through a 1/2-inch fixture or junction-box knockout.

Choose this fixture-mount PIR sensor for individual on/off control of compatible T5 or T8 fluorescent lighting where 360° occupancy sensing and line-voltage switching are needed.
