Gray Steel Sloped Control Enclosure - 10.75 W x 13.75 H x 14 D

SKU:
FS-GLO-C12C12
Brand:
Hoffman
Model/MPN:
C12C12
Our Price:
$359.94
Shipping & Availability:
  • Fast Shipping: Lead time: 1 Business Day
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating

Product Specifications:
Color/Finish: Gray
Country of Origin: CN
Material: Steel
Product Depth: 10.75
Product Height: 13.75
Product Type: Steel Boxes
Product Width: 14
Quantity Included: 1
Color: Gray

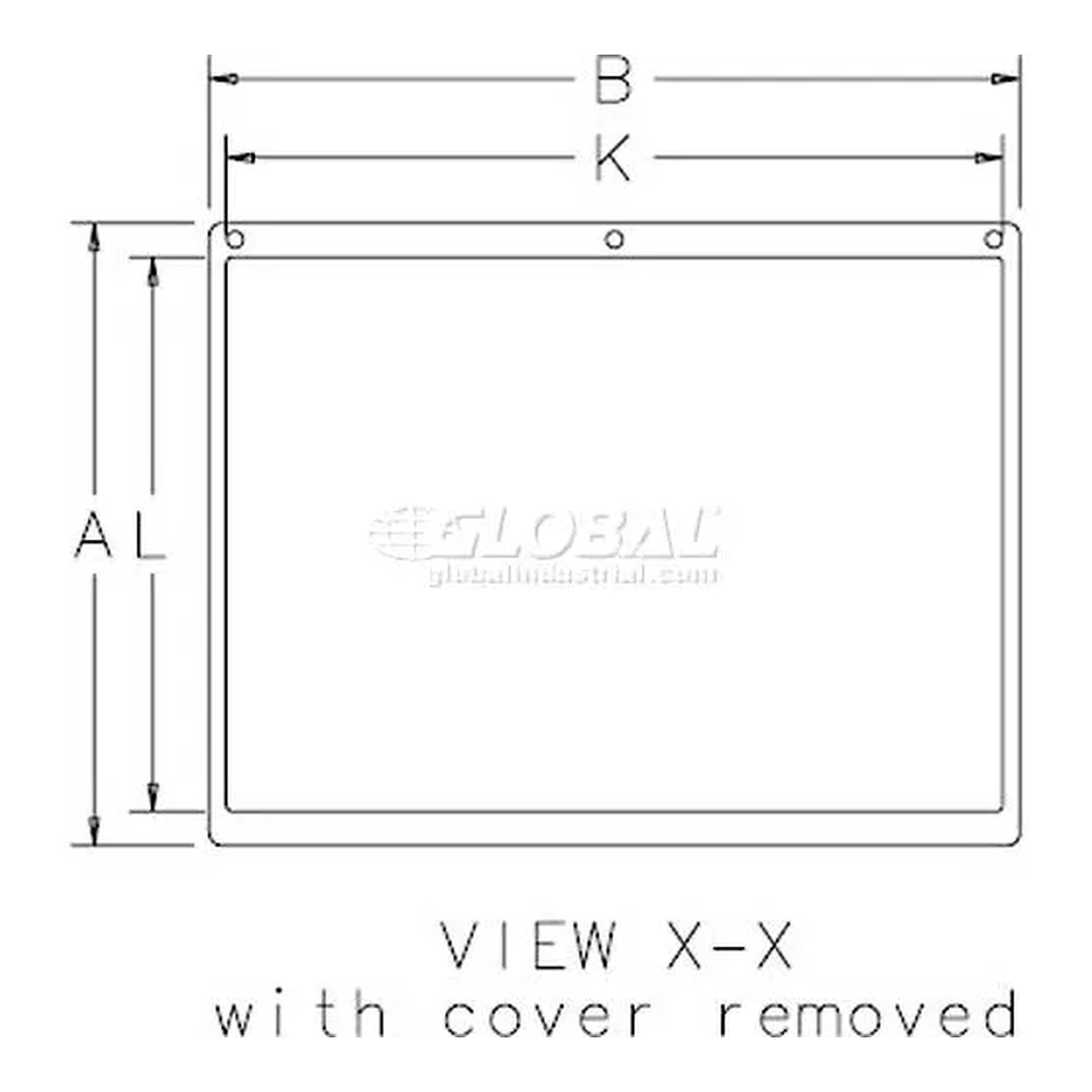

A x B x C: 12 x 12 x 9-1/16 in
Dimension E: 7.62 in
Dimension H: 12.28 in
Dimension K: 11.5 in
Dimension L: 10.62 in
Dimension N: 10.91 in
J Dimension: 12.28 in
Description: Consolet
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .

Product Specifications:
Color/Finish: Gray
Country of Origin: CN
Material: Steel
Product Depth: 10.75
Product Height: 13.75
Product Type: Steel Boxes
Product Width: 14
Quantity Included: 1
Color: Gray
A x B x C: 12 x 12 x 9-1/16 in
Dimension E: 7.62 in
Dimension H: 12.28 in
Dimension K: 11.5 in
Dimension L: 10.62 in
Dimension N: 10.91 in
J Dimension: 12.28 in
Description: Consolet
Shipping Method: Parcel

This gray steel sloped control enclosure is for installers and equipment users mounting small control or instrumentation devices. Its angled access surface helps position devices for convenient operation on desktops, pedestals, and other flat surfaces.

The enclosure is made of 14-gauge steel with continuously welded, smooth-ground seams. It measures 10.75 inches wide, 14 inches deep, and 13.75 inches high. It has no holes or knockouts, can be mounted on either of two sides, and supports a 30- or 60-degree access surface. The cover uses captive screws that thread into sealed wells, includes a bonding provision and oil-resistant gasket, and has a control panel attached by a continuous hinge along the bottom edge.


Key Features:

  • Sloped access surface: Provides an angled mounting area for small controls or instrumentation devices.
  • Two-side mounting: Allows placement on a desktop, pedestal, or other flat surface in either of two orientations.
  • Welded steel construction: Continuously welded and smooth-ground seams create a finished enclosure exterior.
  • No holes or knockouts: Lets buyers configure openings based on their installation requirements.
  • Hinged control panel: The continuous bottom hinge supports access to the attached control panel.
  • Sealed cover hardware: Captive cover screws thread into sealed wells, while the oil-resistant gasket helps seal the cover.

Choose this enclosure for small control or instrumentation installations that need a gray steel housing with a sloped operating surface and flexible flat-surface placement.

Color/Finish: Gray
Country of Origin: CN
Material: Steel
Product Depth: 10.75
Product Height: 13.75
Product Type: Steel Boxes
Product Width: 14
Quantity Included: 1
Color: Gray
A x B x C: 12 x 12 x 9-1/16 in
Dimension E: 7.62 in
Dimension H: 12.28 in
Dimension K: 11.5 in
Dimension L: 10.62 in
Dimension N: 10.91 in
J Dimension: 12.28 in
Description: Consolet
Shipping Method: Parcel
Width: 10.75 in
Height: 13.75 in
Depth: 14.00 in
