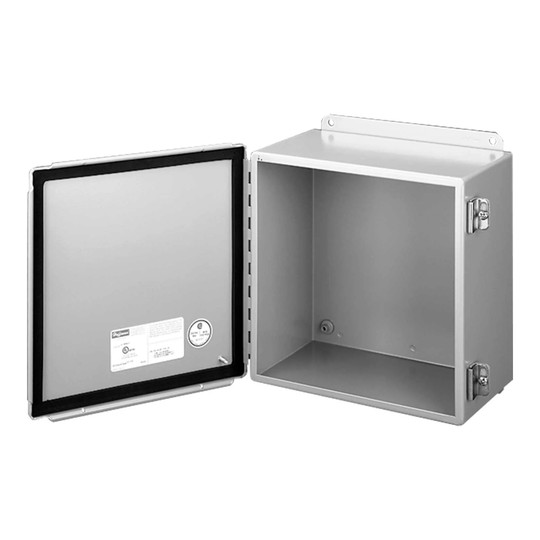

Gray steel continuous-hinge electrical enclosure with external screw clamps

Type 12 Gray Steel Continuous-Hinge Enclosure with Screw Clamps

SKU:
FS-GLO-A8066CH
Brand:
Hoffman
Model/MPN:
A8066CH
Our Price:
$155.94
BBB Accredited Business Badge
Shipping & Availability:
  • Fast Shipping: Lead time: 2 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Color/Finish: Gray
Country of Origin: CN
Material: Steel
Product Depth: 6
Product Height: 6
Product Type: Steel Boxes
Product Width: 8.75
Quantity Included: 1
Color: Gray
A x B x C: 8 x 6 x 6 in
Dimension F: 5.53 in
Dimension K: 0.56 in
Dimension P: 1 in
Dimension T: 5 in
Dimension V: 0.25 in
Dimension Y: 0.62 in
Gauge: 14 ga
J Dimension: 5.62 in
Mounting G x H: 8.75 x 4.00 in
Overall L x W: 9.50 x 6.94 in
Panel Size (D x E): 6.75 x 4.88 in
Conductive Panel: A8P6G
Description: Continuous Hinge With Clamps
Panel: A8P6
Type: 12
UL Listed: 50, 50E
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Product Specifications:
Color/Finish: Gray
Country of Origin: CN
Material: Steel
Product Depth: 6
Product Height: 6
Product Type: Steel Boxes
Product Width: 8.75
Quantity Included: 1
Color: Gray
A x B x C: 8 x 6 x 6 in
Dimension F: 5.53 in
Dimension K: 0.56 in
Dimension P: 1 in
Dimension T: 5 in
Dimension V: 0.25 in
Dimension Y: 0.62 in
Gauge: 14 ga
J Dimension: 5.62 in
Mounting G x H: 8.75 x 4.00 in
Overall L x W: 9.50 x 6.94 in
Panel Size (D x E): 6.75 x 4.88 in
Conductive Panel: A8P6G
Description: Continuous Hinge With Clamps
Panel: A8P6
Type: 12
UL Listed: 50, 50E
Shipping Method: Parcel

This gray steel enclosure is for electrical installers and maintenance teams that need a wall-mountable housing for electrical components. Its continuous-hinge door and screw-down clamps provide a practical closure arrangement for a range of electrical enclosure applications.

The enclosure measures 6 x 8.75 x 6 in. and features continuously welded, smooth-ground seams, a continuous hinge, external screw clamps, an oil-resistant gasket, and a bonding provision on the door. External wall-mounting brackets and weldnuts are included for mounting optional panels and terminal block kits where applicable.

Key Features:

  • Continuous hinge: Provides a full-length hinged door for straightforward opening.
  • External screw clamps: Allow the enclosure door to be secured and operated from the outside.
  • Welded smooth seams: Delivers a finished enclosure construction with continuously welded seams.
  • Oil-resistant gasket: Adds an oil-resistant gasket at the door closure.
  • Wall-mounting brackets: Supports wall-mounted installation.
  • Door bonding provision: Provides a designated bonding point on the door.

Choose this Type 12 steel enclosure when a compact, gray wall-mountable enclosure with a continuous-hinge door and external screw clamps fits your electrical installation requirements.

Color/Finish: Gray
Country of Origin: CN
Material: Steel
Product Depth: 6
Product Height: 6
Product Type: Steel Boxes
Product Width: 8.75
Quantity Included: 1
Color: Gray
A x B x C: 8 x 6 x 6 in
Dimension F: 5.53 in
Dimension K: 0.56 in
Dimension P: 1 in
Dimension T: 5 in
Dimension V: 0.25 in
Dimension Y: 0.62 in
Gauge: 14 ga
J Dimension: 5.62 in
Mounting G x H: 8.75 x 4.00 in
Overall L x W: 9.50 x 6.94 in
Panel Size (D x E): 6.75 x 4.88 in
Conductive Panel: A8P6G
Description: Continuous Hinge With Clamps
Panel: A8P6
Type: 12
UL Listed: 50, 50E
Shipping Method: Parcel
Width: 6.00 in
Height: 6.00 in
Depth: 8.75 in
!
