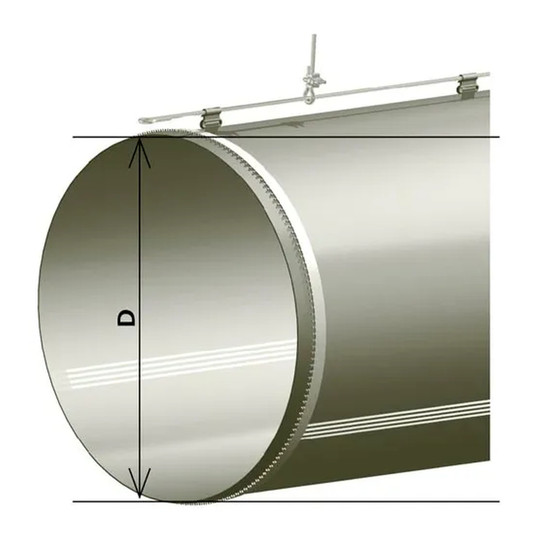

Gray 24-Inch Fabric Duct Straight Section with Vents, 333 CFM

This gray fabric duct straight section is for commercial ventilation system installers building or extending a duct run. It provides a 10-foot section for moving and distributing airflow along the run.

The 24-inch straight section is sized for 333 CFM at 0.50 inch W.G. system static pressure. Laser-cut holes run the length of the section at the 4 and 8 o’clock positions. Built-in zippers connect it to adjacent components, and fabric loops accommodate cable hooks. A complete run also requires suspension hardware, an inlet section, and an endcap.

Key Features:

• 10-foot straight section: Adds a defined length of fabric duct to a compatible duct run.
• 333 CFM sizing: Supports system planning for runs designed at 333 CFM and 0.50 inch W.G. static pressure.
• Laser-cut vent holes: Provides airflow outlets along the section at the 4 and 8 o’clock positions.
• Built-in zippers: Connects directly to the preceding and following duct components.
• Fabric suspension loops: Accommodates cable hooks for supported installation.

Choose this gray 24-inch fabric duct section when a 10-foot, vented straight segment is needed for a 333 CFM duct run.
