24-Inch Gray Fabric Duct Straight Section with Vents, 400 CFM

This gray fabric duct straight section is designed for commercial ventilation systems that need to distribute air along a duct run. It gives facility and HVAC teams a 10-foot section with integrated vents to support airflow delivery.

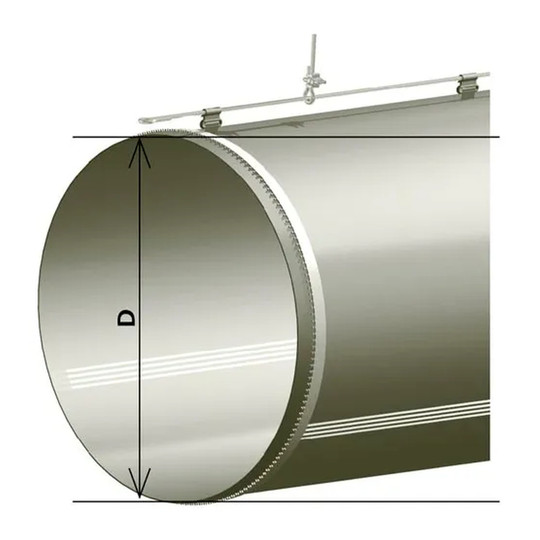

The 24-inch-diameter duct section measures 10 feet long and is sized for 400 CFM at 0.50 in. w.g. system static pressure. Laser-cut holes run the length of the section at the 4 and 8 o’clock positions. Built-in zippers connect it to adjacent components, and fabric loops provide attachment points for cable hooks. A complete duct run requires suspension hardware, an inlet section, and an endcap.

Key Features:

• 400 CFM sizing: Supports duct runs designed for 400 CFM airflow at 0.50 in. w.g. system static pressure.
• Laser-cut vent holes: Distributes air through openings positioned at 4 and 8 o’clock along the section.
• Built-in zipper connections: Allows the section to join with the preceding and following duct components.
• Fabric suspension loops: Provides attachment points for cable hooks used with suspension hardware.
• 10-foot straight section: Adds a defined length of ventilated fabric duct to a compatible run.

Choose this 24-inch gray straight section when building a 400 CFM fabric duct run that requires vented air distribution and zipper-connected components.
