Eye Bolts

Eye bolts are threaded fasteners with an integrated eye connection point for equipment, hardware, maintenance, fabrication, and assembly work. Commercial buyers use them where a compatible threaded mounting location and an eye-style attachment point are needed as part of an assembly.

Product Display:
Helpful Buying Guide

Eye Bolt Buying Guide

Compare eye bolts by the thread required by the mating part, the shank length needed for the installation, and the pattern, material, and finish specified for the assembly. The available selection includes shoulder-pattern options with fully threaded shanks in inch and metric sizes.

Visual Guide

Popular examples in this category

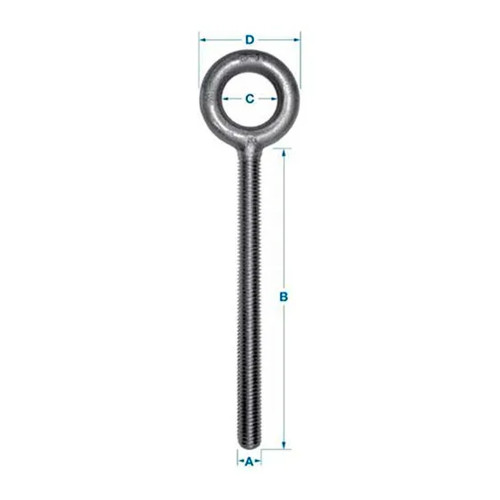

Carbon Steel Shoulder Eye Bolt, 3/4-16 x 2 in. ShankCarbon Steel Shoulder Eye Bolt, 3/4-16 x 2 in. ShankWBB1957877Drop-Forged Carbon Steel Eye Bolt, 5/8-11 x 6 in. ShankDrop-Forged Carbon Steel Eye Bolt, 5/8-11 x 6 in. ShankWBB1958133Shoulder Eye Bolt, 1/2-13 Thread, 4-1/2 in. ShankShoulder Eye Bolt, 1/2-13 Thread, 4-1/2 in. ShankWBB1957951M10 x 1.50 Shoulder Pattern Metric Eye BoltM10 x 1.50 Shoulder Pattern Metric Eye BoltWBB1957971
Use Cases

Add an eye connection point

Use an eye bolt when an equipment, hardware, maintenance, fabrication, or assembly setup requires an eye-style connection point at a compatible threaded location.

How to Choose

Start with thread compatibility

Match the thread designation to the receiving location or mating component. Available examples include inch threads such as 5/16-18, 3/8-16, 1/2-13, 5/8-11, 3/4-16, and metric threads from M6 x 1.00 through M22 x 2.50.

Applications

Plan around the assembly

Maintenance crews, fabricators, shop teams, and commercial hardware buyers can select a shoulder eye bolt for compatible threaded equipment and hardware assemblies.

Additional Info

Review material and finish

Most represented options are drop-forged carbon steel. Selected choices include galvanized or zinc-plated carbon steel, self-colored carbon steel, and 316 stainless steel with a passivated and electropolished finish.

M6–M22Metric thread range

Represented metric sizes span M6 x 1.00 through M22 x 2.50.

5/16–3/4 in.Inch thread sizes

Represented inch-thread options range from 5/16-18 to 3/4-16.

1-1/8–6 in.Listed shank lengths

Listed shank lengths span from 1-1/8 in. to 6 in. on selected products.

2 materialsConstruction choices

The summaries represent drop-forged carbon steel and 316 stainless steel.

Comparison Guide

Compare Eye Bolt Selection Factors

Use this overview to organize the main differences represented in the product summaries before confirming the exact thread, shank length, material, and finish needed.

Selection factorRepresented optionsWhat to verify
Thread systemInch and metricMatch the mating threaded location.
Shank length1-1/8 in. to 6 in. on selected productsConfirm the length specified for installation.
Material and finishCarbon steel or 316 stainless steel; selected galvanized, zinc-plated, self-colored, or passivated and electropolished finishesChoose the listed construction and finish required by the assembly.
ConfigurationShoulder-pattern eye bolts with fully threaded shanksConfirm the shoulder pattern and threaded engagement requirement.
Planning Guide

Plan the right fit before choosing

Thread and fit

Confirm the thread before selecting

The thread is the primary fit factor. Choose an inch-thread eye bolt only for a matching inch-threaded location, or select a metric option for a compatible metric-threaded component. Listed thread forms include UNC-2A and UNF-2A on selected inch sizes.

  • Match the nominal thread size and pitch or threads-per-inch.
  • Confirm whether the assembly calls for an inch or metric thread.
  • Check the listed thread class when it is specified for the application.
Shank and pattern

Choose the shank length and shoulder configuration

The represented products use fully threaded shanks, allowing engagement along the shank length. Where a shank length is listed, compare it with the installation requirement; available examples range from 1-1/8 in. to 6 in. Shoulder-pattern eye bolts are represented across both inch and metric thread selections.

  • Select the stated shank length required for the installation.
  • Use a shoulder-pattern configuration when that is specified for the assembly.
  • Review the full-threaded shank requirement for the intended mounting location.
Material and finish

Match the listed construction to purchasing requirements

Drop-forged carbon steel is the primary construction represented in this category. Some carbon steel eye bolts have galvanized, zinc-plated, or self-colored finishes, while one represented shoulder eye bolt is made from 316 stainless steel and has a passivated and electropolished finish. One carbon steel option identifies ASTM A489.

  • Compare carbon steel and 316 stainless steel construction options.
  • Select galvanized, zinc-plated, self-colored, or passivated and electropolished finishes only when specified.
  • Use the ASTM A489 listing as an identification detail for the applicable represented option.
FAQ

Common questions before buying

What should I check first when choosing an eye bolt?

Start by matching the thread size and type to the compatible threaded mounting location or mating part.

Are metric eye bolts available?

Yes. Represented metric options include M6 x 1.00, M10 x 1.50, M16 x 2.00, and M22 x 2.50.

Are the represented eye bolts fully threaded?

Yes. The product summaries identify fully threaded shanks across the represented selection.

What materials are represented?

The summaries include drop-forged carbon steel options and a 316 stainless steel shoulder eye bolt. Selected carbon steel options have galvanized, zinc-plated, or self-colored finishes.

!
