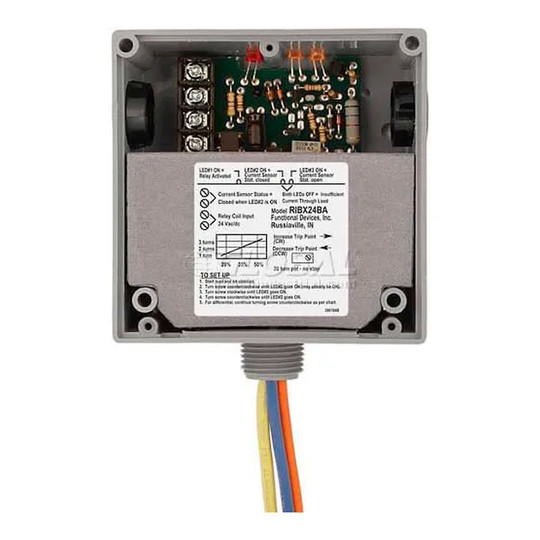

This enclosed AC current sensor and relay combination is for electrical professionals who need to sense current and control connected loads. It handles loads up to 20 amps while eliminating the need for an external current ring, helping simplify installation.
The unit combines an internal AC current sensor with an SPDT relay in an enclosed design. It has an adjustable current-sensing trigger point, supports up to 20 amp loads, and operates on 24VAC/DC. Overall dimensions are 4 in. wide, 4 in. deep, and 1.8 in. high.
Key Features:
Choose this combination current sensor and relay when an adjustable AC sensing point, SPDT relay operation, and 24VAC/DC compatibility are required in a compact enclosed unit.
| Country of Origin: | US |
| Product Depth: | 4" |
| Product Height: | 1.8" |
| Product Type: | Relays |
| Product Width: | 4" |
| Quantity Included: | 1 |
| Shipping Weight: | 918 lbs |
| Manufacturer Part Number: | RIBX24BA |
| Length: | 4 in |
| Width: | 4 in |
| Height: | 1.8 in |
| Wire Size: | 16 in |
| Amperage: | 20 A |
| Brand: | RIB |
| Contact Type: | SPDT |
| Description: | Enclosed Internal AC Sensor W/Relay |
| Expected Relay Life: | 10 Million Cycles Minimum Mechanical |
| Humidity Range: | 5 To 95 Percent (Noncondensing) |
| Manufacturers Part Number: | RIBX24BA |
| Number of Relays: | 1 |
| Operating Temperature: | -30° To 140°F |
| Threshold: | Adjustable |
| Voltage: | 24VAC/DC V |
| Wire Rating: | 600V |
| Warranty: | 1 yr |
| Certifications: | UL/cUL |
| Width: | 4.00 in |
| Height: | 1.80 in |
| Depth: | 4.00 in |
No additional information available.
