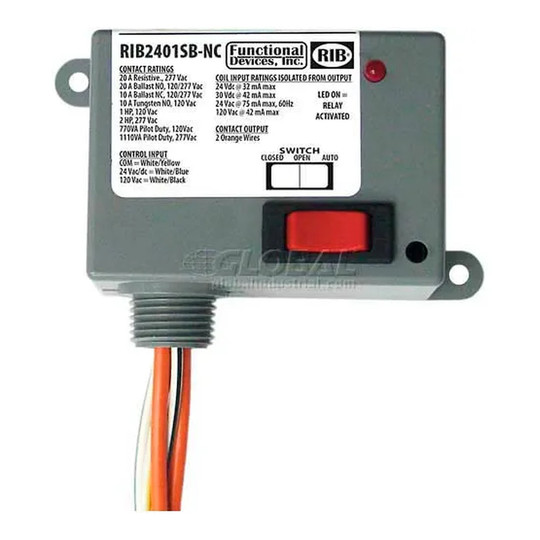

Enclosed 20A SPST-NC Power Relay with Override

SKU:
FS-GLO-RIB2401SB-NC
Brand:
RIB
Model/MPN:
RIB2401SB-NC
Our Price:
$60.94
Shipping & Availability:
  • Fast Shipping: Lead time: 7 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating

Product Specifications:
Country of Origin: US
Product Depth: 3.2
Product Height: 1.8
Product Type: Relays
Product Width: 2.3
Quantity Included: 1
Length: 2.3 in
Wire Size: 16 in
Amperage: 20 A
Contact Type: SPST-N/C
Description: Enclosed Power Relay W/Override
Expected Relay Life: 10 Million Cycles Minimum Mechanical
Humidity Range: 5 To 95 Percent (Noncondensing)
Number of Relays: 1
Operating Temperature: -30° To 140°F
Voltage: 24VAC/DC 120VAC V
Wire Rating: 600V
Warranty: 1 yr
Certifications: UL/cUL
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .

Product Specifications:
Country of Origin: US
Product Depth: 3.2
Product Height: 1.8
Product Type: Relays
Product Width: 2.3
Quantity Included: 1
Length: 2.3 in
Wire Size: 16 in
Amperage: 20 A
Contact Type: SPST-N/C
Description: Enclosed Power Relay W/Override
Expected Relay Life: 10 Million Cycles Minimum Mechanical
Humidity Range: 5 To 95 Percent (Noncondensing)
Number of Relays: 1
Operating Temperature: -30° To 140°F
Voltage: 24VAC/DC 120VAC V
Wire Rating: 600V
Warranty: 1 yr
Certifications: UL/cUL
Shipping Method: Parcel

This enclosed power relay is for installers who need a packaged relay assembly for electrical control work. Its normally closed SPST configuration and override capability provide a practical option for controlling connected circuits.

The relay is rated for 20A and uses an SPST normally closed contact arrangement. It supports 24VAC/DC and 120VAC operation and includes an override. The packaged assembly includes a relay, LED indicator, socket, mounting rail, transient protection, and housing. Overall dimensions are 3.2 in. wide x 2.3 in. deep x 1.8 in. high.


Key Features:

  • 20A rating: Provides the stated current capacity for compatible relay control applications.
  • SPST-NC contacts: Supplies a single-pole, normally closed switching arrangement.
  • Multi-voltage operation: Supports 24VAC/DC and 120VAC operation.
  • Built-in override: Adds override capability to the relay assembly.
  • Packaged assembly: Combines the relay, LED indicator, socket, mounting rail, transient protection, and housing in one package.

Choose this enclosed relay when a 20A SPST-NC unit with 24VAC/DC or 120VAC operation, override capability, and integrated assembly components fits the installation.

Country of Origin: US
Product Depth: 3.2
Product Height: 1.8
Product Type: Relays
Product Width: 2.3
Quantity Included: 1
Length: 2.3 in
Wire Size: 16 in
Amperage: 20 A
Contact Type: SPST-N/C
Description: Enclosed Power Relay W/Override
Expected Relay Life: 10 Million Cycles Minimum Mechanical
Humidity Range: 5 To 95 Percent (Noncondensing)
Number of Relays: 1
Operating Temperature: -30° To 140°F
Voltage: 24VAC/DC 120VAC V
Wire Rating: 600V
Warranty: 1 yr
Certifications: UL/cUL
Shipping Method: Parcel
Width: 3.20 in
Height: 1.80 in
Depth: 2.30 in
