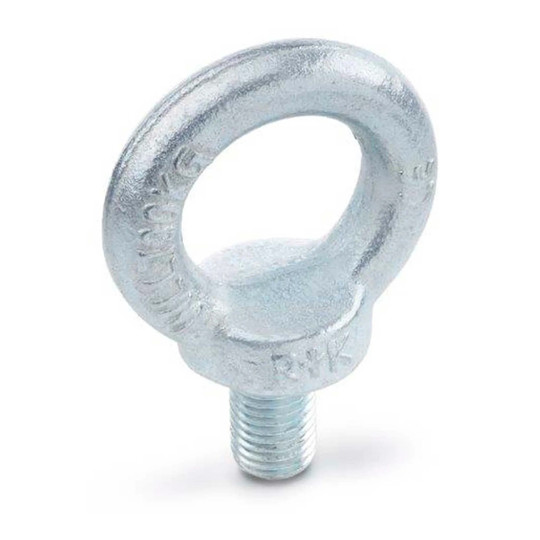

This DIN 580 lifting eye bolt is a threaded lifting attachment for commercial and industrial users who need a secure connection point on compatible equipment or surfaces. Its shoulder-style eye provides a ring for lifting-related attachment applications.
Made from forged steel, this lifting eye bolt has an M30 threaded stem and a silver zinc-plated finish. The ring measures 4-5/16 in. high and 15/16 in. thick. Complete threaded-stem contact with the mounting surface is required to achieve the maximum load.
Key Features:
Choose this M30 DIN 580 lifting eye bolt when your installation calls for a forged steel, shouldered eye with the stated ring dimensions and full threaded-stem surface contact.
| Country of Origin: | Import |
| Material: | Carbon Steel, Drop-Forged |
| Product Depth: | 6" |
| Product Height: | 4" |
| Product Type: | Eye Bolts |
| Product Width: | 6" |
| Quantity Included: | 1 |
| Shipping Weight: | 34 lbs |
| Manufacturer Part Number: | 580-M30-ST |
| Eye Inside Dimension: | 2-3/8" |
| Eye Outside Dimension: | 4-1/4" |
| Safe Working Load: | 7194lbs |
| Shank Diameter & Thread: | M30 |
| Shank Length: | 45mm in |
| Thread Length: | 1-3/4 in |
| Brand: | J.W. Winco |
| Finish: | Zinc Plated |
| Grade: | C15E |
| Manufacturers Part Number: | 580-M30-ST |
| Package Quantity: | 1 |
| Pattern: | Shoulder |
| Width: | 6.00 in |
| Height: | 4.00 in |
| Depth: | 6.00 in |
