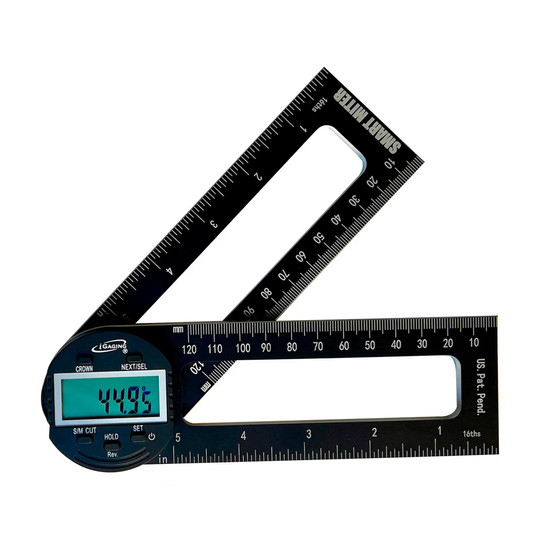

Digital Miter Protractor with 7-Inch Aluminum Blades

This digital miter protractor helps carpenters, trim installers, and shop professionals measure angles and calculate miter and compound cuts. It combines an angle-reading display with built-in calculation functions to support layout work for miter joints and crown molding.

The tool has black anodized aluminum blades measuring 7 inches (175 mm), with 5-inch (120 mm) scales marked in 1/16-inch and 1 mm increments. A large LCD displays measurements in degrees. Rear locking screws hold the selected position, while zero-at-any-position and reverse-reading functions support different measurement orientations.

Key Features:

• Digital angle display: Shows angle readings in degrees for clear measurement reference.
• Built-in cut calculations: Helps determine miter joint and compound-cut settings during layout.
• 7-inch aluminum blades: Provides a stable measuring surface for angle work.
• Laser-etched scales: Offers high-contrast inch and metric markings that are easy to read.
• Position locking screws: Helps keep the blades at the selected angle while transferring measurements.
• Zero and reverse reading functions: Supports angle measurement from different starting positions and orientations.

Choose this digital protractor for angle measurement and cut-layout tasks where miter and compound-cut calculations, readable scales, and adjustable blade positioning are needed.
