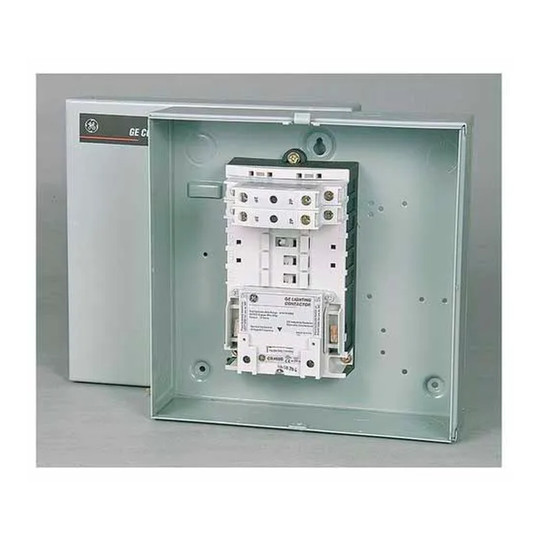

30A 2-Pole Lighting Contactor Panel with NEMA 1 Enclosure

This lighting contactor panel is for electrical professionals who need to control lighting loads. Its electrically held magnetic contactor uses a 120VAC coil to operate two normally open poles in a compact enclosed assembly.

The panel has a 30A full-load rating, two poles, and two normally open contacts. It includes a NEMA 1 enclosure and operates at 50/60 Hz. Overall dimensions are 7.4 in. high, 4.2 in. wide, and 3.9 in. deep. Listed motor ratings include up to 1 HP at 120V single phase, 2 HP at 240V single phase, 3 HP at 208V three phase, 5 HP at 240V three phase, 10 HP at 480V three phase, and 15 HP at 575V three phase.

Key Features:

• 30A Full-Load Rating: Supports applications requiring a 30A lighting contactor.
• Two Normally Open Poles: Provides two normally open contact poles for controlled switching.
• 120VAC Coil: Matches control systems designed for a 120VAC coil voltage.
• Electrically Held Design: Keeps the contactor engaged through electrical coil operation.
• NEMA 1 Enclosure: Provides an enclosed panel configuration with a NEMA 1 enclosure.

Choose this panel when your lighting control requirements call for a 30A, 2-pole electrically held contactor with a 120VAC coil and NEMA 1 enclosure.
