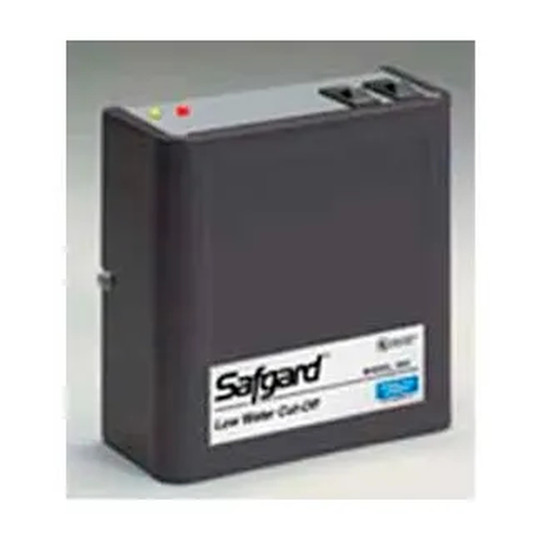

Commercial 120V Low Water Cut-Off with Manual Reset

This low water cut-off is designed for commercial boiler applications where burner power must be interrupted when a low-water condition is detected. It helps boiler operators and maintenance teams monitor water level conditions and prevent the burner circuit from operating when water remains below the probe.

This 120V control has a short probe, manual reset, and black finish. It interrupts power immediately during a low-water condition and locks out the burner circuit when water remains below the probe for 30 seconds. A test button checks control operation and the lockout function without lowering the water level. The manual reset does not trip because of power failures. It can also be used as a secondary cut-off on steam boilers. Dimensions are 5.5 in. wide x 7 in. deep x 9.5 in. high; shipping weight is 4 lb.

Key Features:

• Low-Water Power Interruption: Stops burner power immediately when a low-water condition is detected.
• 30-Second Lockout: Locks out the burner circuit if water stays below the probe for 30 seconds.
• Manual Reset: Provides a reset function that will not trip during a power failure.
• Built-In Test Button: Lets users check burner-circuit control and lockout operation without reducing the water level.
• Secondary Cut-Off Use: Can serve as a secondary cut-off on steam boilers.

Choose this 120V low water cut-off for commercial boiler systems requiring a short-probe control with manual reset, test-button operation, and burner-circuit lockout capability.
