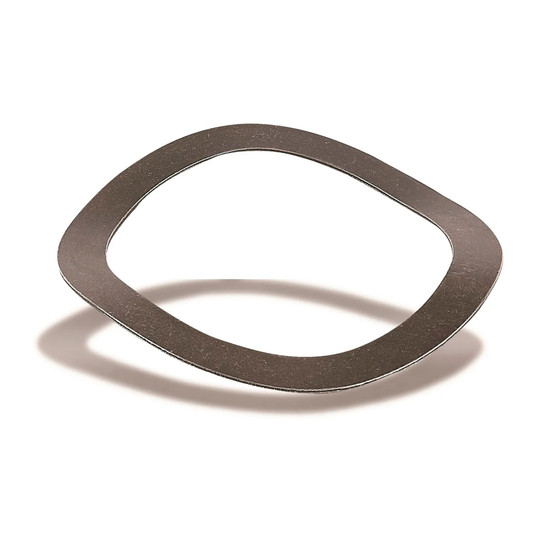

This carbon steel wave spring is for maintenance and assembly professionals who need to reduce axial end play in ball bearing applications. It provides light to medium load support where limited deflection is required or available.
The spring has a 3.917 in. outside diameter, 3.047 in. inside diameter, 0.042 in. thickness, and 0.258 in. height. Its wave design provides contact points corresponding to the number of waves on one side and expands less under load than a curved spring. Sold individually.
Key Features:
Choose this wave spring when your application requires a carbon steel spring with the listed diameters, thickness, and height for managing axial end play and limited deflection.
| Country of Origin: | Made in USA |
| Material: | 1074 High Carbon Steel |
| Product Depth: | 4" |
| Product Height: | 0.38" |
| Product Type: | Wave Springs |
| Product Width: | 4.5" |
| Quantity Included: | 1 |
| Surface Thickness: | 0.042" |
| Manufacturer Part Number: | MW3917-042 |
| Height: | 0.258 in |
| Deflection: | 0.128 in |
| Diameter: | 3.917 in |
| Inside Diameter: | 3.047 in |
| Load at Deflection: | 98-142 lbs |
| Thickness: | 0.042" |
| Unit of Measurement: | Inch (Imperial) |
| Brand: | Gardner Spring |
| Finish: | Plain |
| Manufacturers Part Number: | MW3917-042 |
| Package Quantity: | 1 |
| Width: | 4.00 in |
| Height: | 38.00 in |
| Depth: | 4.50 in |
