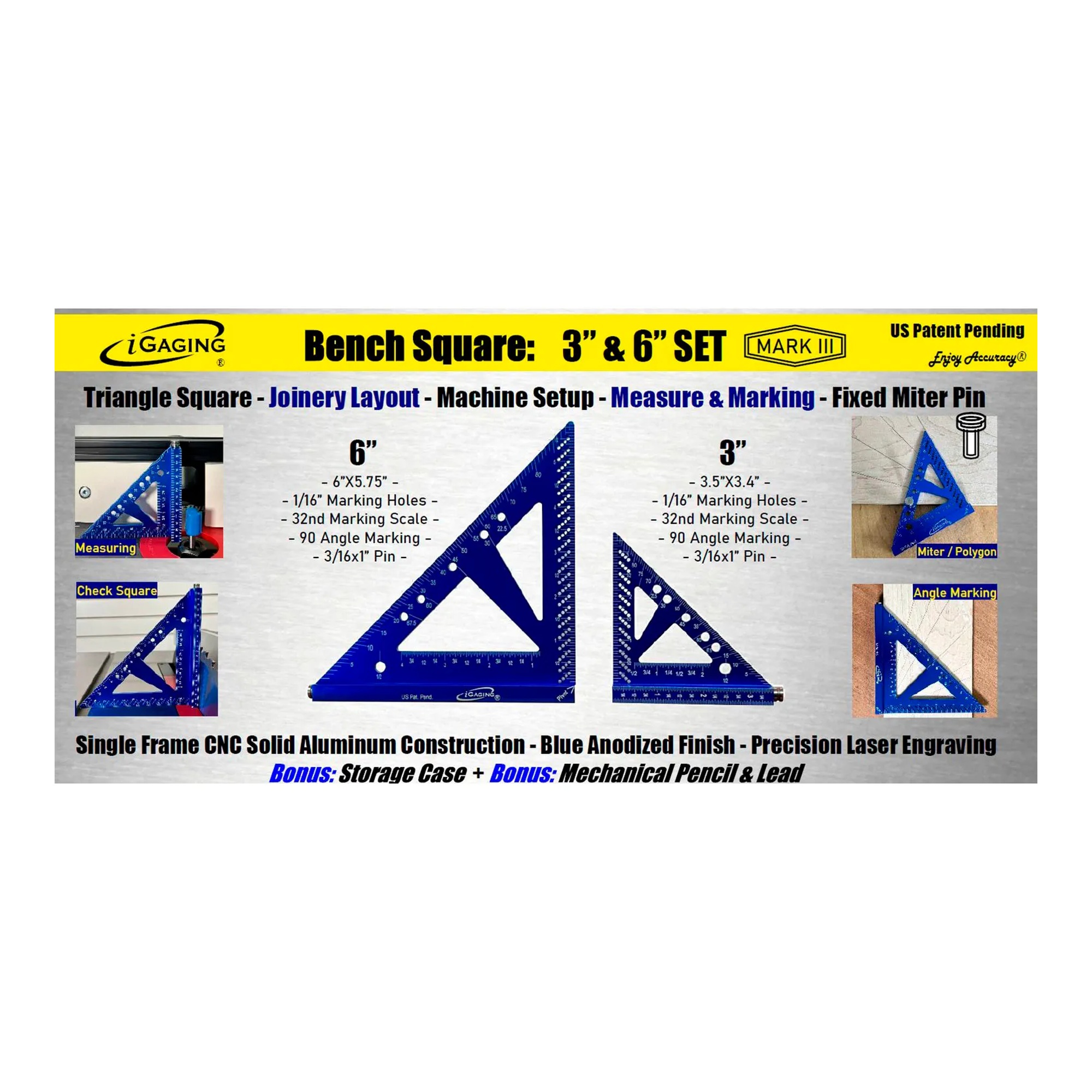

Blue Anodized Aluminum Bench Squares, 3 in. and 6 in.

These bench squares help woodworkers, machinists, and layout professionals mark and check angles during measuring and layout work. The 3 in. and 6 in. squares provide graduated references for precise scribing and angle marking.

CNC-machined from solid aluminum with a blue anodized, non-glare finish, these squares feature laser-engraved markings on both sides. They include 0° to 90° markings in 1° graduations, 1/16 in. scribe holes, 3/16 in. pin holes with an included pin, and center-cutout angle references at 22.5°, 30°, 45°, 60°, and 67.5°. The 3 mm thick blades offset at 1/4 in. and 3/8 in.; the 3/4 in. tall base includes a 1/32 in. scale. Scale accuracy is ±0.005 in.

Key Features:

• Dual square sizes: Provides both 3 in. and 6 in. references for varied layout tasks.
• Laser-engraved graduations: Makes angle and scribe references easy to read from either side of each square.
• Angle-marking holes: Supports repeated scribing in 1/16 in. increments and polygon miter marking with the included pin.
• Offset blade design: Offers 1/4 in. and 3/8 in. offsets for layout positioning.
• Non-glare anodized finish: Helps reduce reflected light while working with the engraved markings.

Choose these aluminum bench squares for compact, graduated references for angle checking, scribing, and layout work. A mechanical pencil, lead refills, and a protective case are included.
