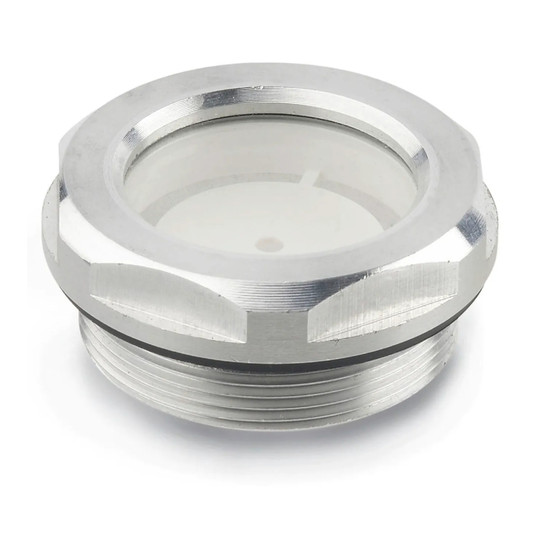

Aluminum fluid level sight glass with reflector and M42 x 1.5 thread

Aluminum Fluid Level Sight Glass with Reflector, M42 x 1.5 Thread

SKU:
WBB2225437
Model/MPN:
743-32-M42X1.5-A
Our Price:
$19.99
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 4
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743-32-M42X1.5-A
Across Flats: 1.81" (46mm)
Diameter: 50mm
Inner Diameter: 32mm
Thread Length: 12mm in
Thread Size: M42 x 1.5 in
Manufacturers Part Number: 743-32-M42X1.5-A
Max Pressure @ 70°F: 180 psi
Reflector Material: Heat-Resistant Technopolymer Plastic (Polysulfon)
Seal Material: NBR Rubber (Perbunan)
Series: GN743
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: Natural Glass
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 4
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743-32-M42X1.5-A
Across Flats: 1.81" (46mm)
Diameter: 50mm
Inner Diameter: 32mm
Thread Length: 12mm in
Thread Size: M42 x 1.5 in
Manufacturers Part Number: 743-32-M42X1.5-A
Max Pressure @ 70°F: 180 psi
Reflector Material: Heat-Resistant Technopolymer Plastic (Polysulfon)
Seal Material: NBR Rubber (Perbunan)
Series: GN743
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: Natural Glass
Shipping Method: Parcel

This aluminum fluid level sight glass helps maintenance and equipment professionals visually monitor fluid levels in pressurized oil tanks. Its reflector supports easier viewing of the fluid level during routine equipment checks.

The sight glass features a genuine glass viewing window, an M42 x 1.5 thread, and a peripheral O-ring seal set in a groove rather than against the glass face edge. This seal arrangement is designed to remain in place during tightening and is not affected by axial pressure. The NBR seal has a maximum heat resistance of 212°F. For mounting walls thinner than 4 mm, a compatible mounting nut is required.

Key Features:

  • M42 x 1.5 Thread: Provides a defined threaded connection for compatible equipment openings.
  • Reflector: Helps make the fluid level easier to see through the viewing window.
  • Glass Viewing Window: Offers a stable, scratch-resistant surface for visual level checks.
  • Grooved Peripheral O-Ring: Keeps the seal retained during installation and supports reliable sealing.
  • NBR Seal: Handles temperatures up to 212°F for applicable oil-tank installations.

Choose this threaded aluminum sight glass with reflector for compatible pressurized oil tanks where clear, direct fluid-level observation is needed.

Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 4
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743-32-M42X1.5-A
Across Flats: 1.81" (46mm)
Diameter: 50mm
Inner Diameter: 32mm
Thread Length: 12mm in
Thread Size: M42 x 1.5 in
Manufacturers Part Number: 743-32-M42X1.5-A
Max Pressure @ 70°F: 180 psi
Reflector Material: Heat-Resistant Technopolymer Plastic (Polysulfon)
Seal Material: NBR Rubber (Perbunan)
Series: GN743
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: Natural Glass
Shipping Method: Parcel
Width: 6.00 in
Height: 4.00 in
Depth: 6.00 in
!
