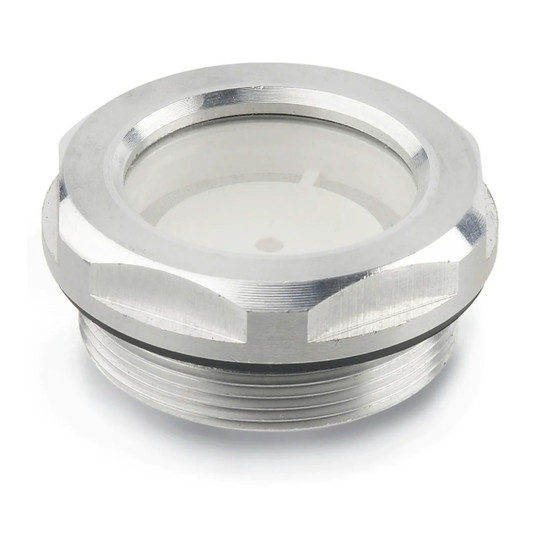

Aluminum fluid level sight glass with reflector and M16 x 1.5 thread

Aluminum Fluid Level Sight Glass with Reflector, M16 x 1.5 Thread

SKU:
WBB2225447
Model/MPN:
743-11-M16X1.5-A
Our Price:
$10.74
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 4
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743-11-M16X1.5-A
Across Flats: .79" (20mm)
Diameter: 22mm
Inner Diameter: 11mm
Thread Length: 8mm in
Thread Size: M16 x 1.5 in
Manufacturers Part Number: 743-11-M16X1.5-A
Max Pressure @ 70°F: 725 psi
Reflector Material: Heat-Resistant Technopolymer Plastic (Polysulfon)
Seal Material: NBR Rubber (Perbunan)
Series: GN743
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: Natural Glass
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 4
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743-11-M16X1.5-A
Across Flats: .79" (20mm)
Diameter: 22mm
Inner Diameter: 11mm
Thread Length: 8mm in
Thread Size: M16 x 1.5 in
Manufacturers Part Number: 743-11-M16X1.5-A
Max Pressure @ 70°F: 725 psi
Reflector Material: Heat-Resistant Technopolymer Plastic (Polysulfon)
Seal Material: NBR Rubber (Perbunan)
Series: GN743
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: Natural Glass
Shipping Method: Parcel

This aluminum fluid level sight glass helps equipment operators visually check oil levels in pressurized oil tanks. Its reflector supports easier fluid-level viewing during routine equipment inspection and maintenance.

The sight glass features an M16 x 1.5 thread, genuine scratch-resistant glass, and an aluminum body. Its NBR O-ring seals around the glass perimeter in a recessed groove rather than at the glass face edge. The NBR seal has a maximum heat resistance of 212°F. For mounting on walls thinner than 4 mm, use a compatible mounting nut.

Key Features:

  • Reflector: Helps make the fluid level easier to see during visual checks.
  • Perimeter O-Ring Seal: Supports sealing that is not affected by axial pressure on the glass.
  • Recessed Seal Groove: Helps retain the seal and reduce extrusion during tightening.
  • Scratch-Resistant Glass: Provides a durable viewing surface for fluid-level observation.
  • M16 x 1.5 Thread: Supports installation in equipment with a matching threaded opening.

Choose this fluid level sight glass for oil-tank applications requiring a threaded visual level indicator with a reflector and perimeter-sealed glass design.

Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 4
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743-11-M16X1.5-A
Across Flats: .79" (20mm)
Diameter: 22mm
Inner Diameter: 11mm
Thread Length: 8mm in
Thread Size: M16 x 1.5 in
Manufacturers Part Number: 743-11-M16X1.5-A
Max Pressure @ 70°F: 725 psi
Reflector Material: Heat-Resistant Technopolymer Plastic (Polysulfon)
Seal Material: NBR Rubber (Perbunan)
Series: GN743
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: Natural Glass
Shipping Method: Parcel
Width: 6.00 in
Height: 4.00 in
Depth: 6.00 in
!
