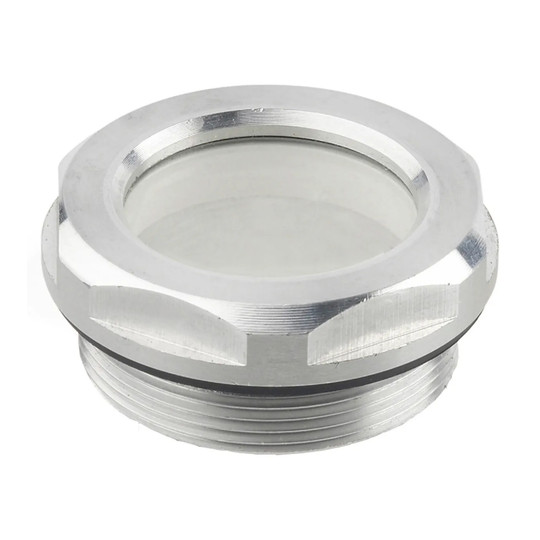

Aluminum fluid level sight glass with M16 x 1.5 thread

Aluminum Fluid Level Sight Glass with M16 x 1.5 Thread

SKU:
WBB2225526
Model/MPN:
743.1-11-M16X1.5-B
Our Price:
$13.49
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 4
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743.1-11-M16X1.5-B
Across Flats: .79" (20mm)
Diameter: 22mm
Inner Diameter: 11mm
Thread Length: 8mm in
Thread Size: M16 x 1.5 in
Manufacturers Part Number: 743.1-11-M16X1.5-B
Max Pressure @ 70°F: 725 psi
Seal Material: FPM Rubber (Viton®)
Series: GN743.1
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: ESG Glass
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 4
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743.1-11-M16X1.5-B
Across Flats: .79" (20mm)
Diameter: 22mm
Inner Diameter: 11mm
Thread Length: 8mm in
Thread Size: M16 x 1.5 in
Manufacturers Part Number: 743.1-11-M16X1.5-B
Max Pressure @ 70°F: 725 psi
Seal Material: FPM Rubber (Viton®)
Series: GN743.1
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: ESG Glass
Shipping Method: Parcel

This aluminum fluid level sight glass helps maintenance and equipment professionals visually check fluid levels in pressurized oil tanks. Its threaded design supports installation where a direct view of the fluid level is needed.

The sight glass has an M16 x 1.5 thread and a glass viewing window without a reflector. An O-ring seal is positioned around the perimeter in a groove rather than at the glass face edge. The seal arrangement is designed to remain in place during tightening and is not affected by axial pressure. The seal has a maximum heat resistance of 356°F.

Key Features:

  • Aluminum body: Provides a metal housing for the fluid-level viewing window.
  • Glass viewing window: Allows visual monitoring of fluid level without a reflector.
  • M16 x 1.5 thread: Supports threaded installation in compatible equipment openings.
  • Peripheral O-ring seal: Helps create a seal around the window while keeping the O-ring retained in its groove.
  • 356°F maximum heat resistance: Supports applications operating within the stated seal temperature limit.

Choose this threaded fluid level sight glass for compatible pressurized oil tank installations that require a direct view of fluid level and a perimeter-sealed glass window.

Country of Origin: Import
Material: Aluminum
Product Depth: 6
Product Height: 4
Product Type: Sight Glasses
Product Width: 6
Quantity Included: 1
Manufacturer Part Number: 743.1-11-M16X1.5-B
Across Flats: .79" (20mm)
Diameter: 22mm
Inner Diameter: 11mm
Thread Length: 8mm in
Thread Size: M16 x 1.5 in
Manufacturers Part Number: 743.1-11-M16X1.5-B
Max Pressure @ 70°F: 725 psi
Seal Material: FPM Rubber (Viton®)
Series: GN743.1
Sight Glass Body Material: Aluminum w/ Matte Shot-Blast Finish
Sight Glass Material: ESG Glass
Shipping Method: Parcel
Width: 6.00 in
Height: 4.00 in
Depth: 6.00 in
!
