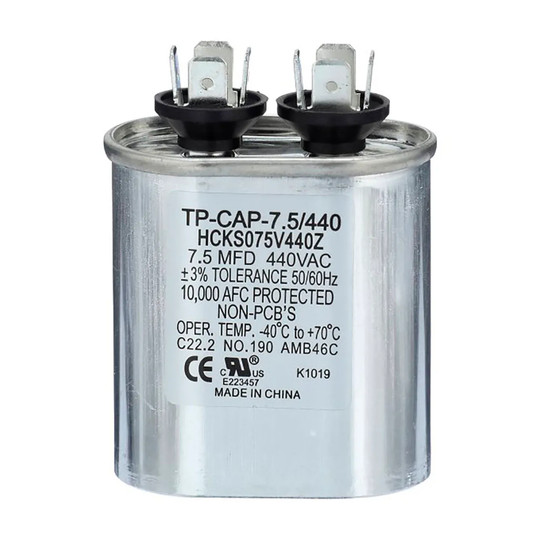

Oval Run Capacitor, 7.5 MFD, 440V

This oval run capacitor is for HVAC professionals and service technicians working on motor systems. It provides 7.5 MFD capacitance at 440V to support motor-run operation during service or replacement work.

The capacitor has an oval form factor and measures 2.13 in. wide, 2.64 in. deep, and 2.13 in. high. It is rated for operation from 40°C to 70°C (40°F to 158°F), with a stated 60,000-hour life at rated temperature. Construction includes a vacuum-sealed design, 7-micrometer film, a 1.5 mm plastic cup, and a protective insulating sleeve around the film rolls.

Key Features:

• 7.5 MFD, 440V rating: Helps buyers select the specified capacitance and voltage for their motor-run application.
• Oval profile: Provides the oval form factor needed for compatible replacement locations.
• Vacuum-sealed construction: Helps prevent leaks and contaminants from reaching internal components.
• 10,000 AFC protection: Provides the stated available fault current protection level.
• Tested to EIA-456-A: Supports consistent electrical performance requirements.
• UL/CSA recognized and VDE approved: Offers source-stated electrical recognition and approval credentials.

Choose this 7.5 MFD, 440V oval run capacitor when the required electrical rating, oval configuration, and compact 2.13 x 2.64 x 2.13 in. size match the equipment specification.
