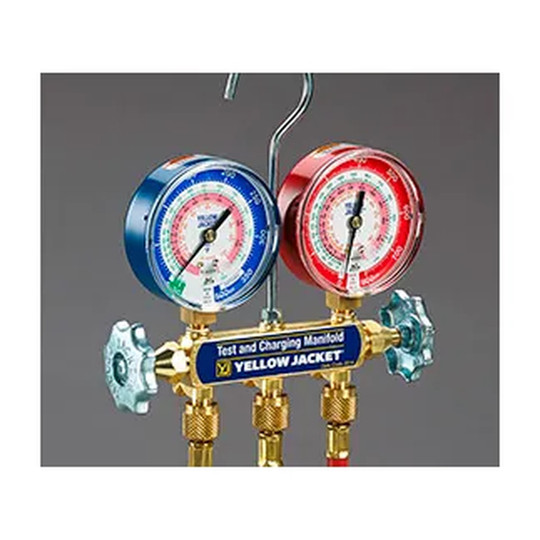

41 Series HVAC Manifold with 2-1/2 in. Gauges

This HVAC manifold helps service technicians monitor system readings and operate connected hoses during HVAC service work. It combines accessible valves and clearly sized gauges for practical control and observation at the job site.

The manifold has a forged solid-brass body with full porting, full-size metal valve handles, and hose anchors forged into the back at a 45-degree angle. Its sliding double O-ring pistons are designed to reduce wear. Two 2-1/2 in. steel-case gauges provide Class B 3-2-3 accuracy, while a surge protector and silicone-dampened movement help reduce needle pulsation. Overall dimensions are 13 x 13 x 4 in.

Key Features:

• Forged brass body: Provides a durable manifold body for routine service work.
• Full porting: Maximizes available capacity through the manifold.
• Full-size metal handles: Makes valve operation easier for technicians.
• 45-degree hose anchors: Positions hose anchors at the back of the body for organized connections.
• Dampened gauge movement: Helps minimize needle pulsation for easier reading.
• 2-1/2 in. steel-case gauges: Gives users clear, Class B 3-2-3 accuracy readings.

This 41 Series manifold is a practical choice for HVAC technicians who need durable valve control, hose connection points, and easy-to-read gauges in one service tool.
