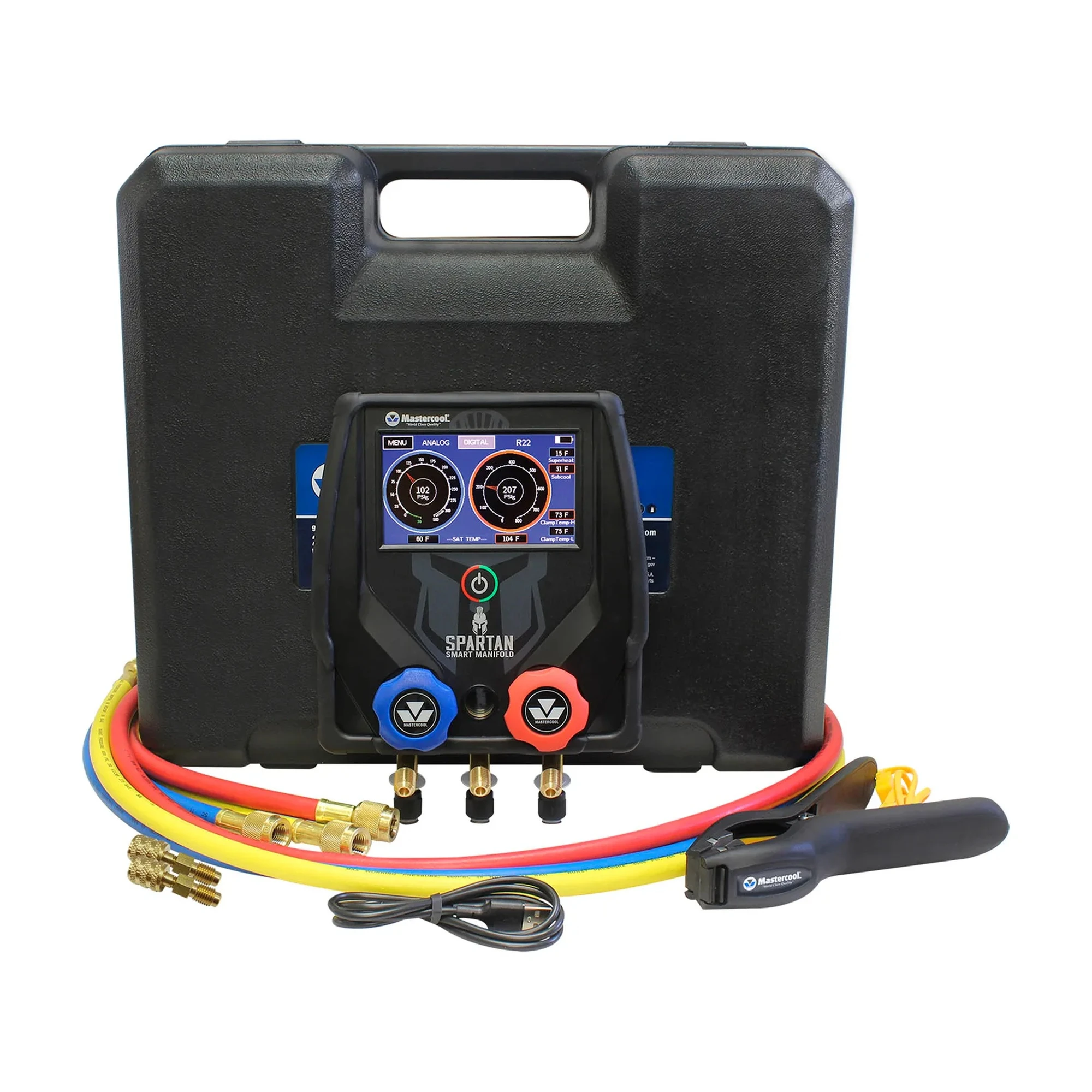

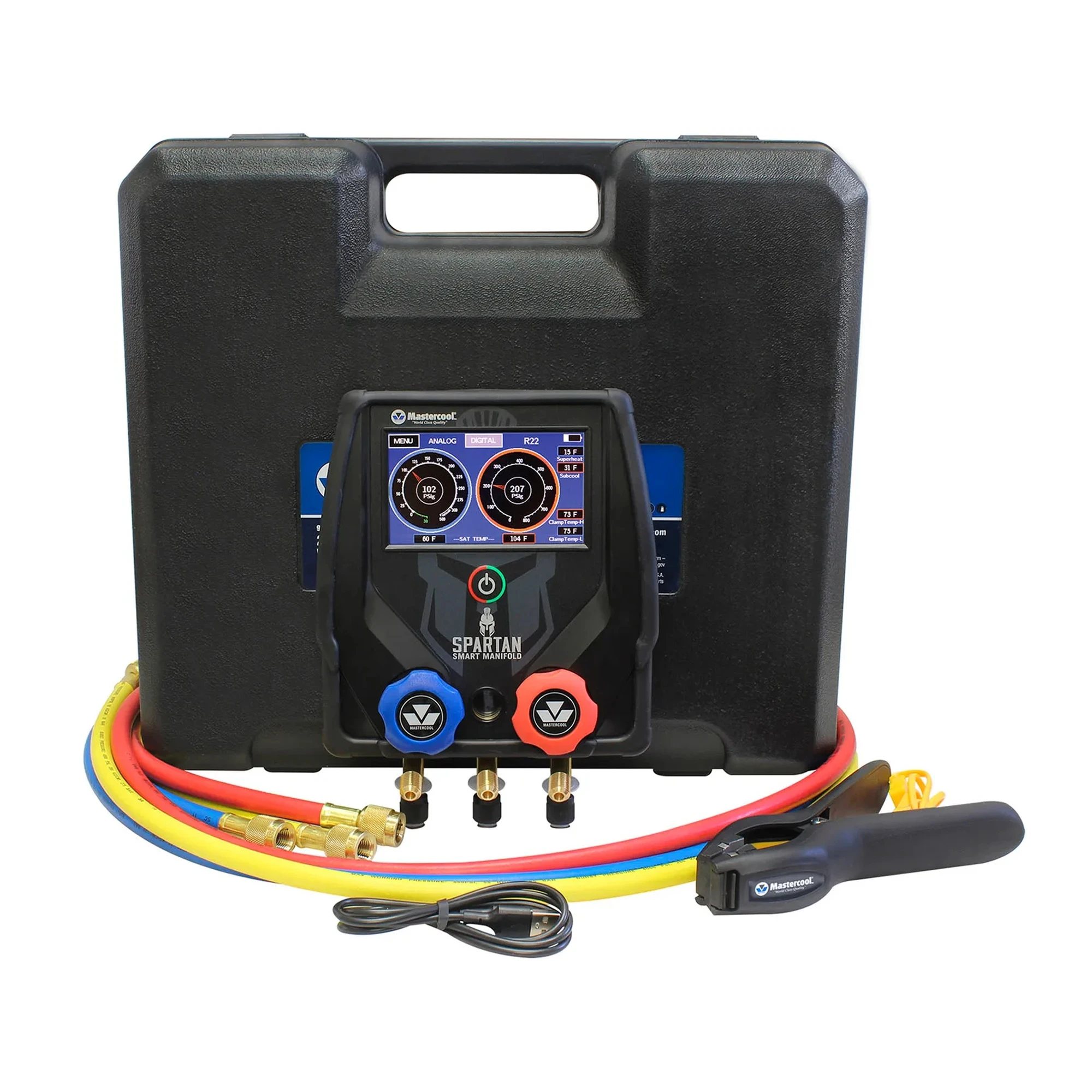

2-Way Smart HVAC Manifold with Clamps

This 2-way smart manifold is for HVAC service technicians diagnosing and servicing A/C systems. It combines system readings, vacuum measurement, and calculated values in one handheld service tool to help users monitor operating conditions during maintenance work.

The black manifold measures 8 in. wide x 12 in. deep x 6 in. high and weighs 7 lb. Its 4.3 in. color touchscreen supports swipe navigation, while a built-in vacuum sensor provides accuracy down to 1 micron. The unit displays pressure, vacuum, and temperature, automatically calculates superheat and subcooling, and includes data logging, leak-test timers, alarms, wireless connectivity, and clamps. It includes refrigerant selections for the supplied list, including R-12, R-22, R-134a, R-410A, and R-744.

Key Features:

• 4.3 in. color touchscreen: Lets technicians move through screens and options with swipe navigation.
• Built-in vacuum sensor: Provides vacuum measurement with accuracy down to 1 micron without requiring an additional vacuum sensor.
• Automatic calculations: Calculates superheat and subcooling from displayed system readings.
• Data logging and alarms: Helps users capture activity and monitor leak-test timing during service work.
• Wireless device viewing: Allows activity to be viewed on compatible handheld devices.

Choose this 2-way manifold for A/C service work requiring pressure, vacuum, and temperature readings along with built-in calculations, logging, and wireless viewing.
