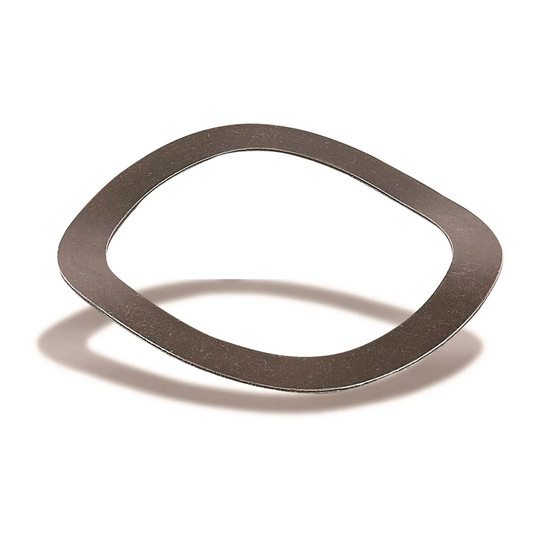

This 302 stainless steel wave spring is for equipment assemblers and maintenance professionals who need to help reduce axial end play, particularly in ball bearing applications. It provides light to medium spring loading where limited deflection is required or available.
Each wave spring has a 0.305 in. outside diameter, 0.243 in. inside diameter, 0.0066 in. thickness, and 0.03 in. height. Wave springs expand less during loading than curved springs, and the number of waves corresponds to the number of contact points on one side. Pack includes 25 springs.
Key Features:
Choose this wave spring when your application calls for a compact stainless steel spring to manage axial end play with limited deflection.
| Country of Origin: | Made in USA |
| Material: | 302 Stainless Steel |
| Product Depth: | 4" |
| Product Height: | 0.2" |
| Product Type: | Wave Springs |
| Product Width: | 4.5" |
| Quantity Included: | 1 |
| Surface Thickness: | 0.0066" |
| Manufacturer Part Number: | MW0305-007-S |
| Height: | 0.03 in |
| Deflection: | 0.015 in |
| Diameter: | 0.243 in |
| Load at Deflection: | 0.5-1 lbs |
| Outside Diameter: | 0.305 in |
| Thickness: | 0.0066" |
| Unit of Measurement: | Inch (Imperial) |
| Brand: | Gardner Spring |
| Finish: | Plain |
| Manufacturers Part Number: | MW0305-007-S |
| Package Quantity: | 25 |
| Width: | 4.00 in |
| Height: | 2.00 in |
| Depth: | 4.50 in |
