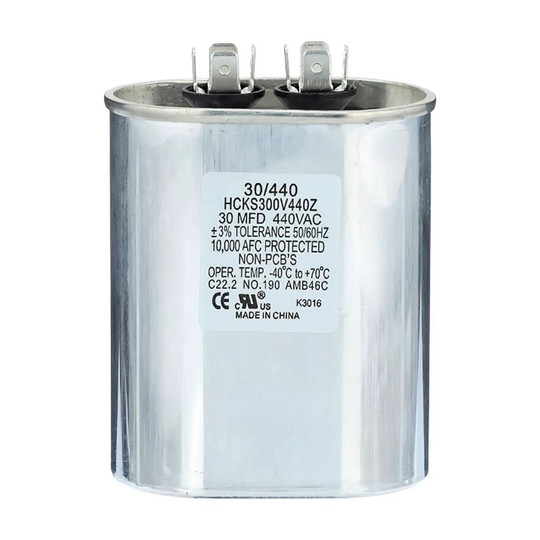

30 MFD 440V Oval Motor Run Capacitor

This oval motor-run capacitor is for HVAC service professionals and maintenance teams who need a 30 MFD, 440V replacement component to support motor operation in compatible equipment.

The capacitor has a 30 MFD rating and 440V rating in an oval form. It measures 2.9 inches wide, 3.82 inches deep, and 2.9 inches high. Its construction includes 7-micrometer film, a vacuum-sealed design, a 1.5 mm plastic cup supporting the film rolls, and a Nomex sleeve that protects and insulates the film rolls. Rated operating temperature is 40°F to 158°F.

Key Features:

• 30 MFD, 440V Rating: Helps buyers match the electrical rating required for a compatible motor-run capacitor replacement.
• Oval Profile: Provides the stated oval configuration for applications that require this capacitor shape.
• Vacuum-Sealed Construction: Helps limit leaks and contaminants within the capacitor assembly.
• Protected Film Roll Design: Uses a plastic cup and insulating Nomex sleeve to support and protect the film rolls.
• Extended Rated-Life Testing: Specified for a 60,000-hour life at rated temperature and tested for 2,000 hours at 125% rated voltage and 80°C.

Choose this capacitor when the required replacement calls for a 30 MFD, 440V oval motor-run design and the listed dimensions fit the installation.
