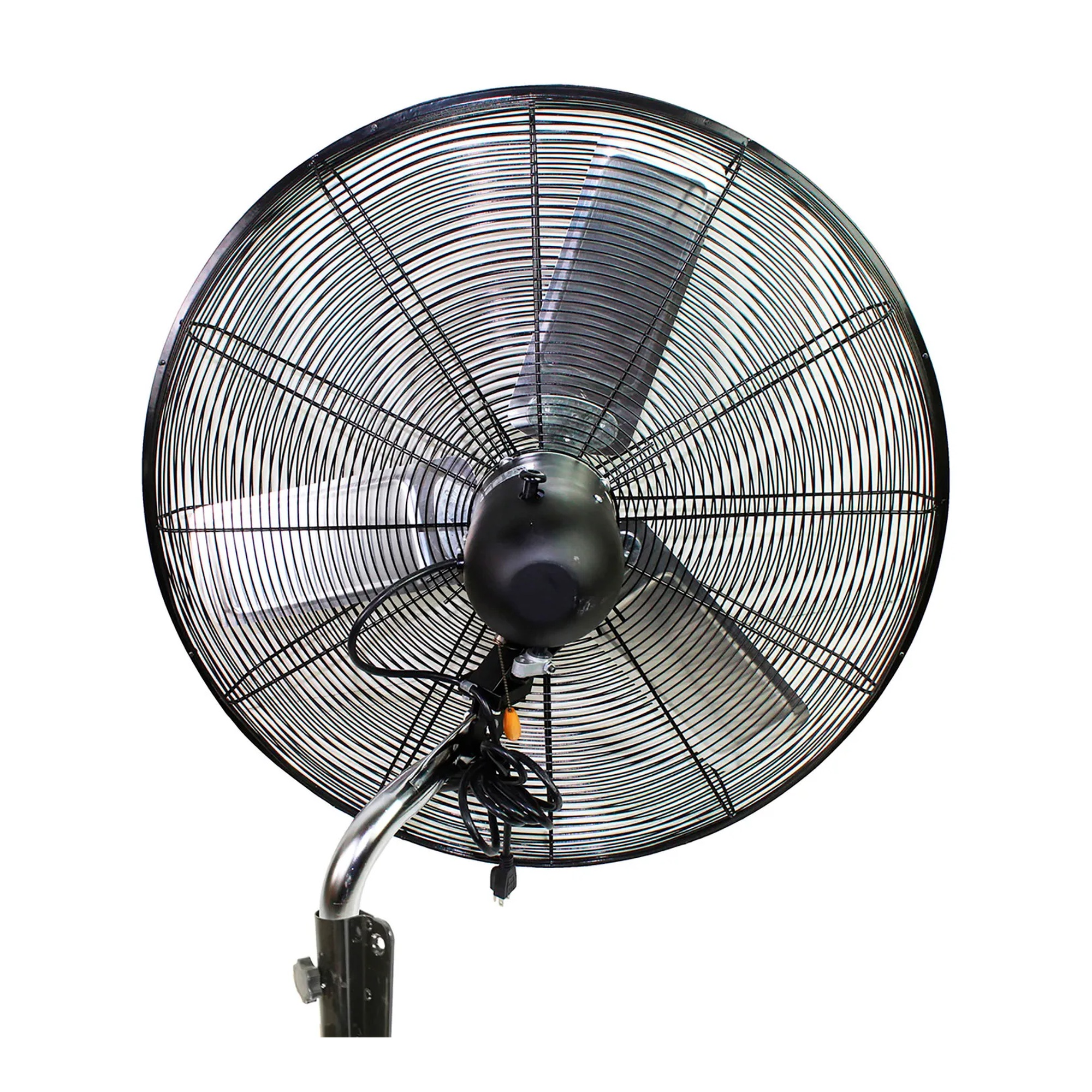

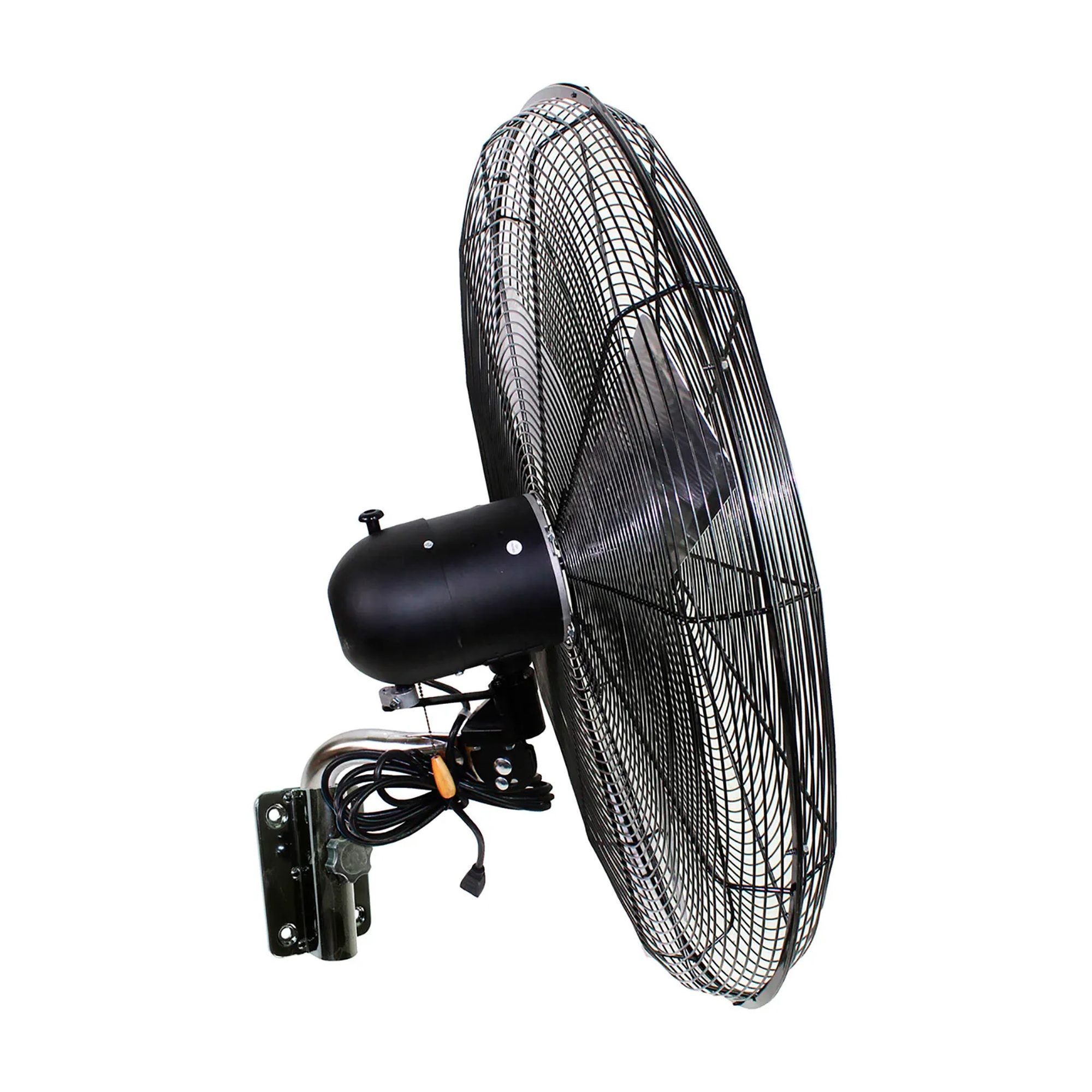

This 30-inch industrial wall-mount fan helps warehouse, shop, garage, gym, and commercial facility teams circulate air in large indoor spaces. Its oscillating design and high-velocity airflow provide broad-area cooling while keeping the floor clear.
The black powder-coated steel fan delivers airflow up to 4,800 CFM with a 1/5 HP motor and three pull-chain-controlled speeds. A wall bracket with pre-punched mounting holes is included. The fan has a tilting head, swivel adjustment arm, and 90-degree oscillation with an on/off puller on the motor. Overall dimensions are 41 inches wide, 7 inches deep, and 34 inches high; weight is 42 lb.
Key Features:
- High-velocity airflow: Moves up to 4,800 CFM to help circulate air across large indoor work areas.
- 90-degree oscillation: Sweeps airflow across a wider area instead of concentrating it in one direction.
- Three-speed pull-chain control: Lets users select an airflow level from within reach of the wall-mounted unit.
- Adjustable fan position: The tilting head and swivel arm help direct airflow where it is needed.
- Wall-mount bracket included: Pre-punched holes help simplify mounting to compatible surfaces.
- Powder-coated steel construction: Provides a durable black-finish fan housing for indoor use.
Choose this wall-mounted oscillating fan for indoor industrial or commercial areas that need adjustable, wide-sweeping air circulation without taking up floor space.
| Airflow (CFM): |
4,800 CFM |
| Certifications: |
UL, cUL Listed |
| Color/Finish: |
Black |
| Country of Origin: |
MX |
| Material: |
Steel |
| Motor: |
1/5 HP |
| Number of Speeds: |
3 |
| Product Depth: |
41" |
| Product Height: |
34" |
| Product Type: |
Wall Fans |
| Product Width: |
7" |
| Quantity Included: |
1 |
| Shipping Weight: |
42 lbs |
| Warranty: |
2 yr |
| Manufacturer Part Number: |
HVWM 30 OSC |
| Color: |
Black |
| Length: |
33-1/2 in |
| Width: |
33-1/2 in |
| Depth: |
12 in |
| Height: |
33-1/2 in |
| Weight: |
36 lbs |
| Cord Length: |
6 ft |
| Fan Diameter: |
30 in |
| Amperage: |
2.1 A |
| Assembly Required: |
Yes |
| Blade Type: |
Aluminum |
| Brand: |
Maxx Air |
| CFM: |
4100/4400/4800 CFM |
| CFM High: |
4800 CFM |
| Drive Type: |
Direct Drive |
| Fan Type: |
Industrial |
| Features: |
Pull Chain Operation |
| Hertz: |
60 Hz |
| Horsepower: |
1/5 HP |
| Indoor/Outdoor: |
Indoor |
| Manufacturers Part Number: |
HVWM 30 OSC |
| Motor Type: |
Open Air Over |
| Mounting Location: |
Wall |
| Number of Blades: |
3 |
| Oscillating/Non Oscillating: |
Oscillating |
| Phase: |
1 |
| RPM: |
660/890/1050 rpm |
| Type: |
Industrial Wall Mount Fan |
| Voltage: |
120 V |
| Wattage: |
200 W |
| Width: |
41.00
in
|
| Height: |
34.00
in
|
| Depth: |
7.00
in
|
