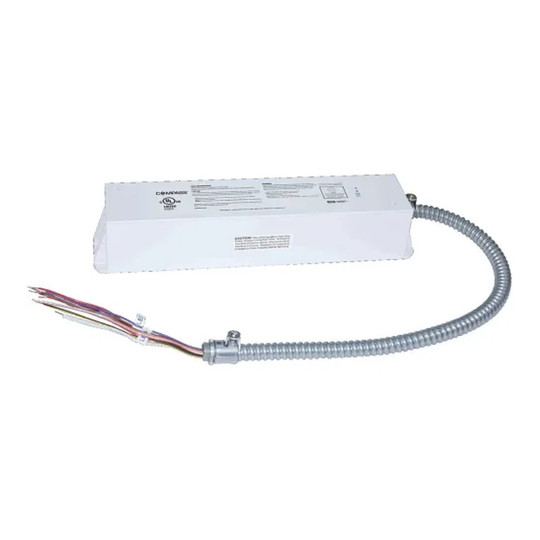

This 25W LED emergency lighting battery pack is for electrical professionals and facility teams maintaining emergency lighting systems. It provides up to 90 minutes of full-lumen output to support emergency illumination when needed.
The white battery pack uses auto-selecting 120/277VAC input/output and is compatible with switched and unswitched loads. It measures 16 in. x 3 in. x 3.5 in., recharges fully in 32 hours, and includes a remote test switch. It is rated for damp locations and 20°C to 40°C operation.
Key Features:
- 90-Minute Output: Provides up to 90 minutes of full-lumen emergency lighting output.
- 120/277VAC Auto-Select: Supports 120/277VAC input/output without manual voltage selection.
- Switched and Unswitched Load Compatibility: Helps accommodate either switched or unswitched load arrangements.
- Remote Test Switch: Allows testing from the included remote switch.
- 32-Hour Recharge: Returns to a full battery charge in 32 hours.
- Damp-Location Operation: Designed for damp locations within a 20°C to 40°C operating range.
Choose this battery pack for compatible 120/277VAC LED emergency lighting installations that need 25W output, remote testing, and damp-location capability.
| Color/Finish: |
White |
| Country of Origin: |
CN |
| Product Depth: |
16" |
| Product Height: |
3.5" |
| Product Type: |
Emergency Lighting Battery Packs |
| Product Width: |
3" |
| Quantity Included: |
1 |
| Shipping Weight: |
3.8 lbs |
| Voltage: |
120-277 V |
| Manufacturer Part Number: |
CPL25 |
| Color: |
White |
| Length: |
15.8 in |
| Width: |
3.3 in |
| Depth: |
2.96 in |
| Height: |
2.96 in |
| Weight: |
8 lbs |
| Batteries Included: |
Yes |
| Brand: |
Hubbell Lighting - Compass |
| Description: |
Hubbell 25-Watt LED Battery Pack, 90 Min of Full Lumen Output, Damp Location |
| Lamp Included: |
No |
| Manufacturers Part Number: |
CPL25 |
| Material: |
Thermoplastic |
| Package Quantity: |
1 |
| Type: |
LED Battery Pack |
| Watts: |
25 W |
| Warranty: |
2 yr |
| Certifications: |
UL |
| Width: |
16.00
in
|
| Height: |
3.50
in
|
| Depth: |
3.00
in
|
