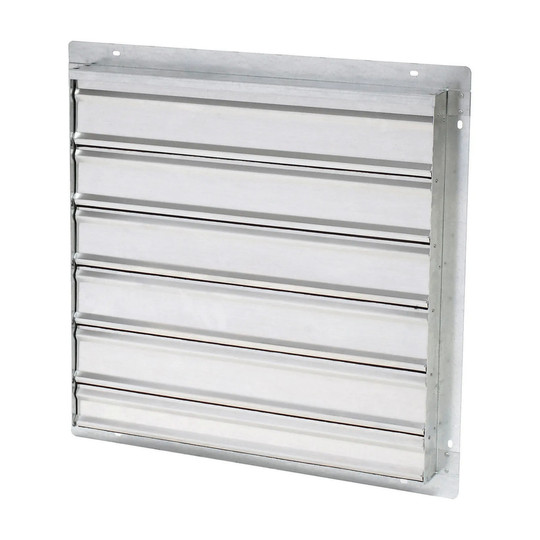

Rear-flange wall exhaust shutter with galvanized frame and aluminum blades

Rear-Flange Wall Exhaust Shutter with Aluminum Blades, 22 in.

SKU:
WBB2224463
Model/MPN:
556-STD 22
Our Price:
$91.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: US
Material: Aluminum/Galvanized Steel
Product Depth: 25"
Product Height: 25"
Product Type: Louvers & Vents
Product Width: 2.5"
Quantity Included: 1
Manufacturer Part Number: 556-STD 22
Length: 2-1/2 in
Width: 25 in
Height: 25 in
Inside Width: 22 in
Inside Height: 22 in
Weight: 10 lbs
Free Area: 2.8 ft³
Inside Dimensions: 2-1/2 (Length) in
Max Pressure In W.G.: 1 in
Max Velocity (per Minute): 2500 ft/min
Rough Opening: 22.5 x 22.5 in
Brand: Air Conditioning Products
Finish: Mill Finish
Flange Style: Rear Flange
For Use With: 22" Exhaust Fans
Manufacturers Part Number: 556-STD 22
Mounting Location: Vertical
Number of Panels: 1
Type: Gravity
Warranty: 1 yr
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: US
Material: Aluminum/Galvanized Steel
Product Depth: 25"
Product Height: 25"
Product Type: Louvers & Vents
Product Width: 2.5"
Quantity Included: 1
Manufacturer Part Number: 556-STD 22
Length: 2-1/2 in
Width: 25 in
Height: 25 in
Inside Width: 22 in
Inside Height: 22 in
Weight: 10 lbs
Free Area: 2.8 ft³
Inside Dimensions: 2-1/2 (Length) in
Max Pressure In W.G.: 1 in
Max Velocity (per Minute): 2500 ft/min
Rough Opening: 22.5 x 22.5 in
Brand: Air Conditioning Products
Finish: Mill Finish
Flange Style: Rear Flange
For Use With: 22" Exhaust Fans
Manufacturers Part Number: 556-STD 22
Mounting Location: Vertical
Number of Panels: 1
Type: Gravity
Warranty: 1 yr

This rear-flange wall exhaust shutter is for commercial buyers installing vertical exhaust ventilation. Used with compatible exhaust fans, it opens during fan operation and closes to help protect the wall opening when the fan is not running.

The shutter has a galvanized steel frame and mill-finish aluminum blades. Each blade includes a galvanized reinforcement strip along its top edge for strength and counterbalancing efficiency, plus a felt leading-edge seal for quieter closing and weather protection. It is designed for vertical mounting with direct-drive or belt-driven exhaust fans. Overall dimensions are 25 in. wide x 2.5 in. deep x 25 in. high.

Key Features:

  • Rear-flange design: Provides a wall-shutter configuration for vertical exhaust installations.
  • Galvanized steel frame: Supports use in areas where corrosion may be a concern.
  • Mill-finish aluminum blades: Creates a lightweight blade assembly within the galvanized frame.
  • Reinforced blades: Galvanized strips add blade strength and support counterbalancing efficiency.
  • Felt blade seals: Helps the blades close more quietly and improves weather protection.
  • Exhaust fan compatibility: Works with direct-drive or belt-driven exhaust fans.

Choose this 22 in. rear-flange shutter for vertical wall exhaust applications requiring aluminum blades, a galvanized frame, and compatibility with direct-drive or belt-driven exhaust fans.

Country of Origin: US
Material: Aluminum/Galvanized Steel
Product Depth: 25"
Product Height: 25"
Product Type: Louvers & Vents
Product Width: 2.5"
Quantity Included: 1
Manufacturer Part Number: 556-STD 22
Length: 2-1/2 in
Width: 25 in
Height: 25 in
Inside Width: 22 in
Inside Height: 22 in
Weight: 10 lbs
Free Area: 2.8 ft³
Inside Dimensions: 2-1/2 (Length) in
Max Pressure In W.G.: 1 in
Max Velocity (per Minute): 2500 ft/min
Rough Opening: 22.5 x 22.5 in
Brand: Air Conditioning Products
Finish: Mill Finish
Flange Style: Rear Flange
For Use With: 22" Exhaust Fans
Manufacturers Part Number: 556-STD 22
Mounting Location: Vertical
Number of Panels: 1
Type: Gravity
Warranty: 1 yr
Width: 25.00 in
Height: 25.00 in
Depth: 2.50 in
!
