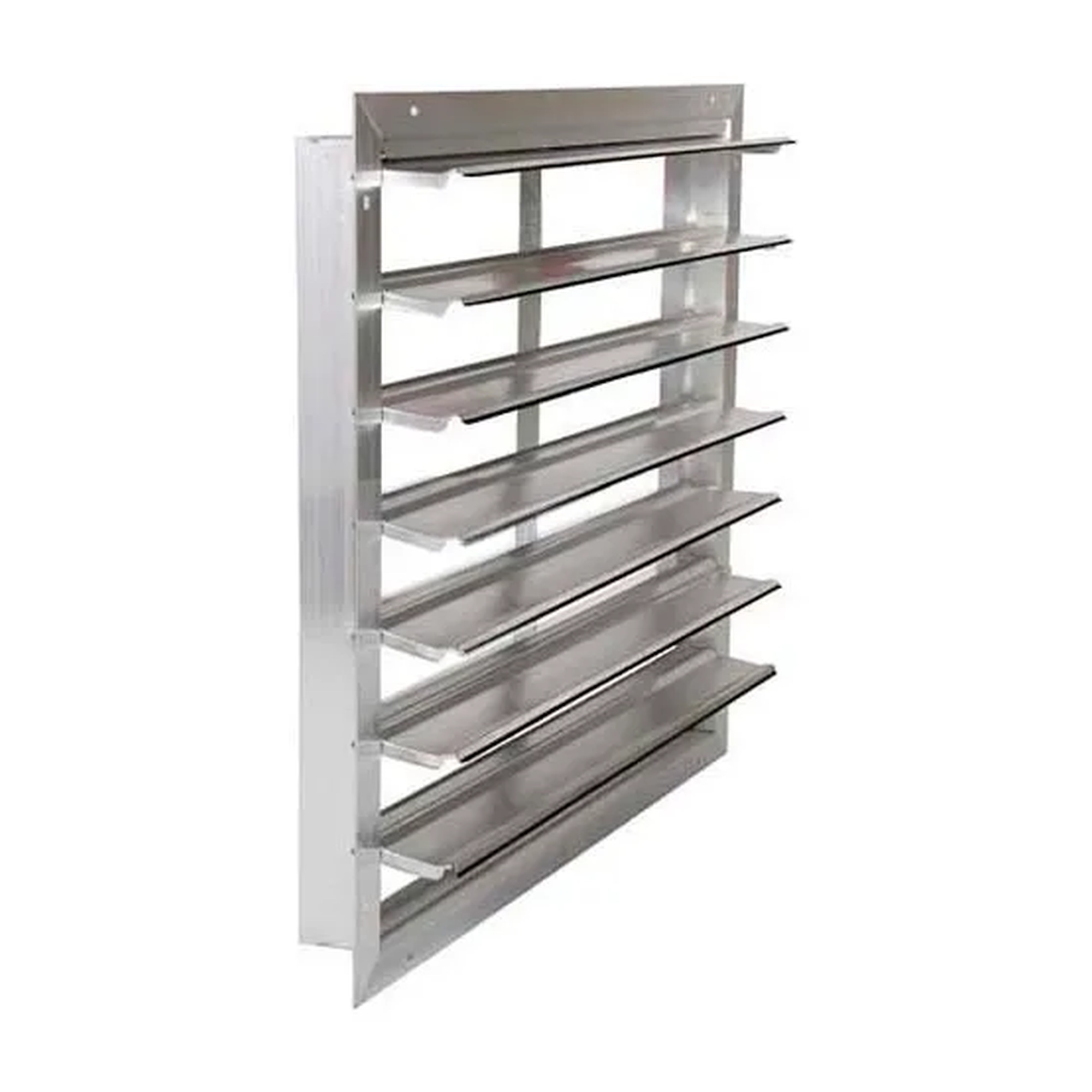

This front-flange aluminum wall exhaust shutter is designed for facility teams and contractors installing vertical exhaust openings. It works with compatible exhaust fans to help manage airflow while providing weather protection when the shutter closes.
The shutter has a mill-finish aluminum frame and blades, with galvanized reinforcement strips across the top of each blade for added strength and counterbalancing. Felt seals on the blade leading edges support quiet closing and weather protection. Overall dimensions are 25 in. wide x 2.5 in. deep x 25 in. high. It is intended for vertical exhaust installations and is compatible with cabinet fans and flush-mount direct-drive or belt-driven exhaust fans.
Key Features:
Choose this shutter for vertical wall exhaust applications requiring a front-flange design, aluminum construction, and compatibility with specified exhaust fan configurations.
| Country of Origin: | US |
| Material: | Aluminum |
| Product Depth: | 25" |
| Product Height: | 25" |
| Product Type: | Louvers & Vents |
| Product Width: | 2.5" |
| Quantity Included: | 1 |
| Shipping Weight: | 9 lbs |
| Manufacturer Part Number: | EASR-MF 22 |
| Length: | 2-1/2 in |
| Width: | 25 in |
| Height: | 25 in |
| Inside Width: | 22 in |
| Inside Height: | 22 in |
| Weight: | 9 lbs |
| Free Area: | 2.8 ft³ |
| Inside Dimensions: | 2-1/2 (Length) in |
| Max Pressure In W.G.: | 1 in |
| Max Velocity (per Minute): | 2500 ft/min |
| Rough Opening: | 22.5 x 22.5 in |
| Brand: | Air Conditioning Products |
| Finish: | Mill Finish |
| Flange Style: | Front Flange |
| For Use With: | 22" Exhaust Fans |
| Manufacturers Part Number: | EASR-MF 22 |
| Mounting Location: | Vertical |
| Number of Panels: | 1 |
| Type: | Gravity |
| Warranty: | 1 yr |
| Width: | 25.00 in |
| Height: | 25.00 in |
| Depth: | 2.50 in |
No additional information available.
