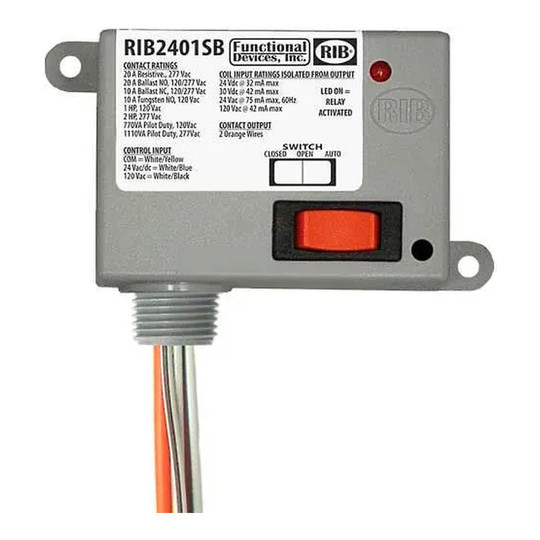

Enclosed 20A SPST-NO power relay with 24VAC/DC and 120VAC operation

Enclosed Power Relay, 20A SPST-NO, 24VAC/DC/120VAC

SKU:
WBB1034393
Our Price:
$59.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: US
Product Depth: 3.2"
Product Height: 1.8"
Product Type: Relays
Product Width: 2.3"
Quantity Included: 1
Shipping Weight: 503 lbs
Manufacturer Part Number: RIB2401SB
Length: 2.3 in
Width: 3.2 in
Height: 1.8 in
Wire Size: 16 in
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: US
Product Depth: 3.2"
Product Height: 1.8"
Product Type: Relays
Product Width: 2.3"
Quantity Included: 1
Shipping Weight: 503 lbs
Manufacturer Part Number: RIB2401SB
Length: 2.3 in
Width: 3.2 in
Height: 1.8 in
Wire Size: 16 in

This enclosed power relay is for installers and electrical professionals who need to control a circuit from compatible 24VAC/DC or 120VAC inputs. Its integrated design helps provide a ready-to-install relay assembly rather than requiring separate components to be assembled on the job or in the shop.

The relay is rated for 20A and uses a single-pole, single-throw normally open (SPST-NO) configuration. It supports 24VAC/DC and 120VAC operation and includes an override. The enclosed assembly includes a relay, LED indicator, socket, mounting rail, transient protection, and housing. It measures 3.2 in. wide, 2.3 in. deep, and 1.8 in. high.

Key Features:

  • 20A relay rating: Supports applications requiring a 20A power relay.
  • SPST-NO configuration: Provides a normally open switching arrangement.
  • Multi-voltage operation: Works with compatible 24VAC/DC or 120VAC control inputs.
  • Integrated enclosure assembly: Combines the relay, LED indicator, socket, mounting rail, transient protection, and housing in one package.
  • Override function: Provides an included override capability.

Choose this enclosed 20A SPST-NO relay when your installation calls for 24VAC/DC or 120VAC operation, an override, and an integrated relay assembly.

Country of Origin: US
Product Depth: 3.2"
Product Height: 1.8"
Product Type: Relays
Product Width: 2.3"
Quantity Included: 1
Shipping Weight: 503 lbs
Manufacturer Part Number: RIB2401SB
Length: 2.3 in
Width: 3.2 in
Height: 1.8 in
Wire Size: 16 in
Amperage: 20 A
Brand: RIB
Contact Type: SPST
Description: Enclosed Power Relay W/Override
Expected Relay Life: 10 Million Cycles Minimum Mechanical
Humidity Range: 5 To 95 Percent (Noncondensing)
Manufacturers Part Number: RIB2401SB
Number of Relays: 1
Operating Temperature: -30° To 140°F
Voltage: 24VAC/DC 120VAC V
Wire Rating: 600V
Warranty: 1 yr
Certifications: UL/cUL
Width: 3.20 in
Height: 1.80 in
Depth: 2.30 in
!
