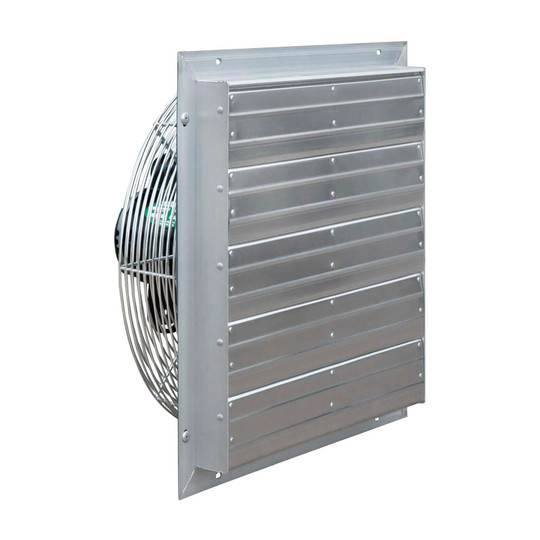

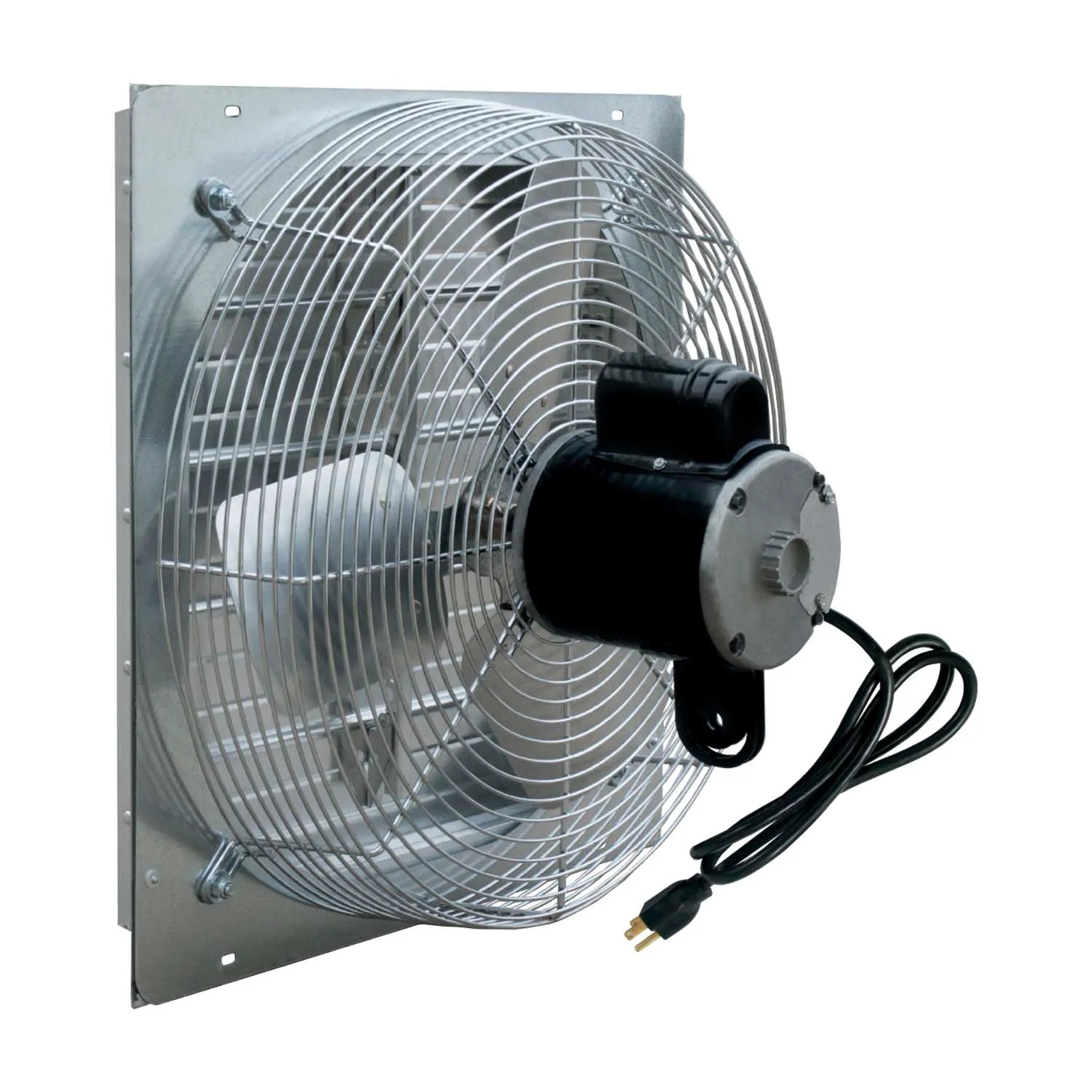

This 20-inch shutter exhaust fan is designed for agricultural and commercial building ventilation. It helps move air out of barns, greenhouses, warehouses, and building peak areas to support practical airflow management.
The fan delivers 3,126 CFM and uses a 1/3 HP, single-phase, 115V motor. It includes a 10-foot, 3-prong grounded power cord and measures 25 inches wide by 25 inches deep by 14 inches high. The aluminum shutter has a tie bar to help reduce wind flapping, while the one-piece venturi adds stability and helps reduce noise. Sealed ball bearings are maintenance-free. Variable-speed operation is available when used with an optional variable-speed control.
Key Features:
A practical choice for buyers needing a 20-inch, corded shutter fan for agricultural or commercial ventilation applications.
| Airflow (CFM): | 3,126 CFM |
| Color/Finish: | Silver |
| Country of Origin: | US |
| Material: | Aluminum |
| Motor: | 1/3 HP |
| Phase: | 1 |
| Product Depth: | 25" |
| Product Height: | 14" |
| Product Type: | Shutter & Guard Mount Fans |
| Product Width: | 25" |
| Quantity Included: | 1 |
| Shipping Weight: | 32 lbs |
| Voltage: | 115 V |
| Warranty: | 2 yr |
| Manufacturer Part Number: | VES20C |
| Color: | Silver |
| Width: | 23 in |
| Depth: | 13 in |
| Height: | 23 in |
| Weight: | 36 lbs |
| Cord Length: | 10 ft |
| Fan Diameter: | 20 in |
| Rough Opening: | 20-1/2 X 20-1/2 in |
| Amperage: | 3.80 A |
| Assembly Required: | No |
| Brand: | J&D Manufacturing |
| CFM: | 3126 CFM |
| CFM High: | 3126 CFM |
| Drive Type: | Direct Drive |
| Fan Type: | Indoor |
| Hertz: | 60 Hz |
| Horsepower: | 1/3 HP |
| Indoor/Outdoor: | Indoor |
| Kilowatts: | 0.402 kW |
| Manufacturers Part Number: | VES20C |
| Motor Type: | Totally Enclosed |
| Mounting Location: | Wall |
| Number of Blades: | 3 |
| Number of Speeds: | 1 |
| Power Cord Included: | Yes |
| RPM: | 1704 rpm |
| Wattage: | 402.5 W |
| Certifications: | OSHA 1910.212(a)(5) |
| Width: | 25.00 in |
| Height: | 14.00 in |
| Depth: | 25.00 in |
