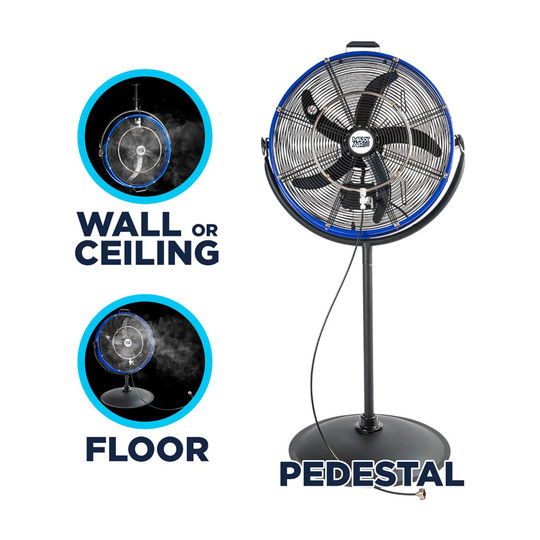

This 20-inch misting pedestal fan is for commercial users who need directed airflow and fine mist cooling in their immediate work area. It can be configured for floor, pedestal, wall, or ceiling use to suit the installation location.
The fan delivers up to 4,600 CFM on high with a 1/10 HP motor and three-speed pull-chain operation. Its metal fan construction includes a low-profile metal shroud, brass nozzles, and a steel misting ring. Connect a standard water hose for continuous misting, controlled by an on/off mist valve. Two pole lengths are included for portable or wall/ceiling-mounted configurations.
Key Features:
- 3-in-1 configuration: Allows floor, pedestal, wall, or ceiling placement to match the available space.
- Up to 4,600 CFM airflow: Provides high-velocity air movement for focused cooling.

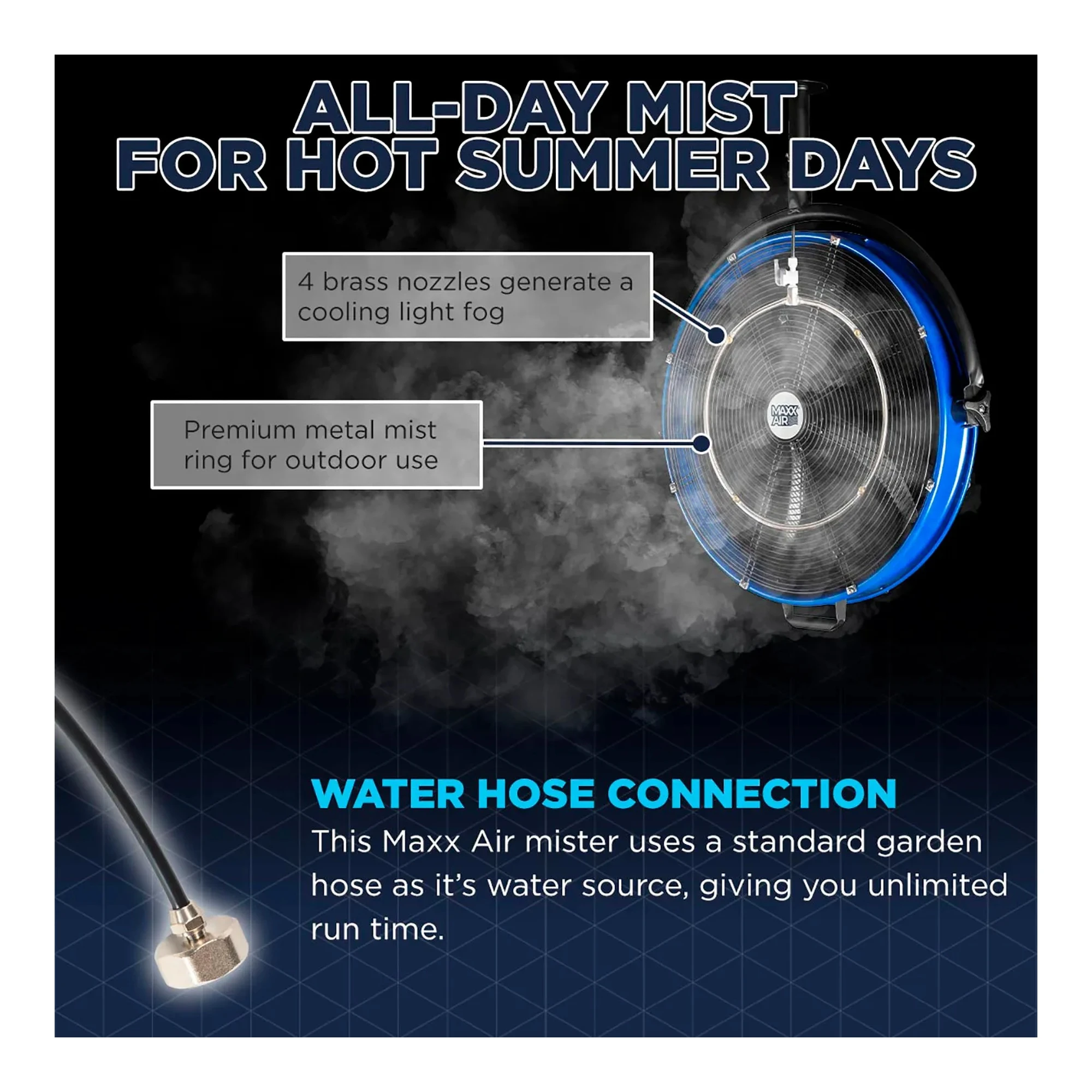

- Standard hose connection: Supports continuous misting from a standard water hose connection.

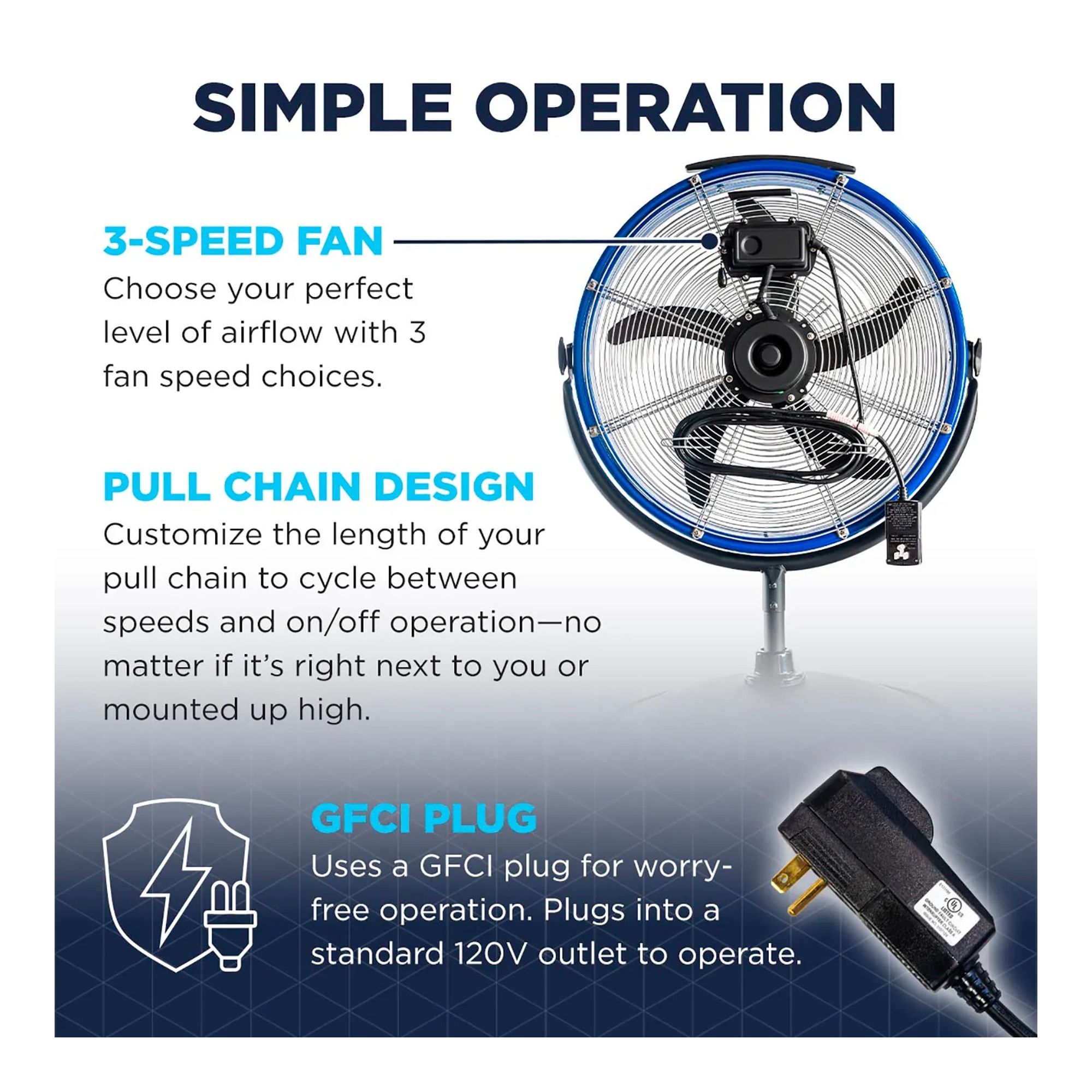

- Three fan speeds: Lets users adjust airflow with a pull-chain control.
- Metal shroud and misting components: Directs airflow outward while distributing fine mist.
- GFCI plug and compliant grilles: Provides built-in electrical and grille safety features.
Choose this blue 20-inch misting fan when you need adjustable airflow, hose-connected misting, and flexible floor, pedestal, wall, or ceiling installation options.
| Airflow (CFM): |
4,600 CFM |
| Assembly: |
Easy Assembly |
| Certifications: |
ETL |
| Color/Finish: |
Blue |
| Country of Origin: |
CN |
| Material: |
Metal |
| Motor: |
1/10 HP |
| Number of Speeds: |
3 |
| Product Depth: |
24" |
| Product Height: |
25.25" |
| Product Type: |
Misting Fans |
| Product Width: |
7.25" |
| Quantity Included: |
1 |
| Shipping Weight: |
24.5 lbs |
| Warranty: |
1 yr |
| Manufacturer Part Number: |
HVPF 20 ORMR |
| Color: |
Blue |
| Width: |
25-1/2 in |
| Depth: |
21-1/2 in |
| Height: |
52 in |
| Weight: |
21 lbs |
| Cord Length: |
9 ft |
| Fan Diameter: |
20 in |
| Amperage: |
1.1 A |
| Assembly Required: |
Yes |
| Blade Type: |
Metal |
| Brand: |
Maxx Air |
| CFM: |
4600 CFM |
| CFM High: |
4600 CFM |
| Fan Type: |
Misting Fan |
| Hertz: |
60 Hz |
| Horsepower: |
1/10 HP |
| Indoor/Outdoor: |
Outdoor |
| Manufacturers Part Number: |
HVPF 20 ORMR |
| Motor Type: |
Totally Enclosed |
| Mounting Location: |
Ceiling or Wall |
| Number of Blades: |
5 |
| Oscillating/Non Oscillating: |
Non Oscillating |
| Phase: |
1 |
| Power Cord Type: |
GFCI Plug |
| Type: |
Outdoor Misting Pedestal Fan |
| Voltage: |
120 V |
| Wattage: |
120 W |
| Width: |
24.00
in
|
| Height: |
25.25
in
|
| Depth: |
7.25
in
|
