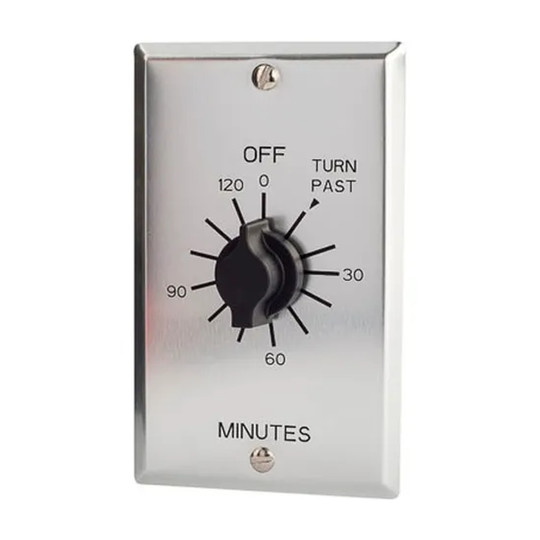

2-Hour Spring-Wound Twist Timer with Metal Wallplate

This spring-wound twist timer is for facility staff and installers who need to set an automatic shutoff for fans, appliances, heat lamps, lighting, or thermostats. Turning the knob starts the timed cycle, helping manage equipment run time without continuous manual attention.

The mechanically spring-wound timer operates without electricity for its timing mechanism. It uses SPDT contacts that close when the knob is turned and open at the end of the timed cycle. The timer provides up to 2 hours of timing, is rated 125-277V, and includes a silver metal wallplate. Overall dimensions are 3 in. W x 4.5 in. D x 2 in. H.

Key Features:

• Spring-wound operation: Provides timed control without requiring electricity to operate the timing mechanism.
• Two-hour timing range: Allows users to set an automatic shutoff cycle for connected loads.
• Automatic circuit break: Opens the circuit at the end of the selected cycle to turn off the load.
• SPDT contacts: Supports switching through single-pole, double-throw contacts.
• Metal wallplate: Provides a finished wall-mounted installation.

Choose this timer for non-precision timed switching of compatible fans, lighting, appliances, heat lamps, and thermostats. It is not intended for precision-timing applications where timing errors could create dangerous consequences.
