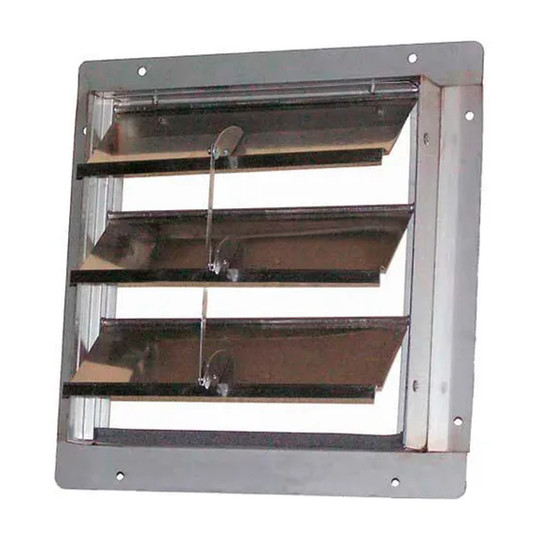

This wall exhaust shutter is designed for chemical plants and food processing operations that need a corrosion-resistant closure for vertical exhaust applications. It works with an exhaust fan to support controlled air discharge through a wall opening.
The shutter has a rear-flanged design and an 18-inch shutter size. Its frame and blades are made of 304 stainless steel, with stainless steel tie rods and hardware. Overall dimensions are 21 inches wide, 2 inches deep, and 21 inches high. It is compatible with direct-drive and belt-driven exhaust fans and is recommended for vertical mounting only.
Key Features:
Choose this 18-inch stainless steel shutter for vertical wall exhaust systems in chemical or food processing operations using a compatible direct-drive or belt-driven fan.
| Country of Origin: | US |
| Material: | Stainless Steel |
| Product Depth: | 21" |
| Product Height: | 21" |
| Product Type: | Louvers & Vents |
| Product Width: | 2" |
| Quantity Included: | 1 |
| Shipping Weight: | 7.5 lbs |
| Manufacturer Part Number: | 304SS 18 |
| Length: | 2 in |
| Width: | 21 in |
| Height: | 21 in |
| Inside Width: | 18 in |
| Inside Height: | 18 in |
| Weight: | 8 lbs |
| Free Area: | 1.82 ft³ |
| Inside Dimensions: | 2 (Length) in |
| Max Pressure In W.G.: | 1 in |
| Max Velocity (per Minute): | 2500 ft/min |
| Rough Opening: | 18.5 x 18.5 in |
| Brand: | Air Conditioning Products |
| Finish: | Mill Finish |
| Flange Style: | Rear Flange |
| For Use With: | 18" Exhaust Fans |
| Manufacturers Part Number: | 304SS 18 |
| Mounting Location: | Vertical |
| Number of Panels: | 1 |
| Type: | Gravity |
| Warranty: | 1 yr |
| Width: | 21.00 in |
| Height: | 21.00 in |
| Depth: | 2.00 in |
