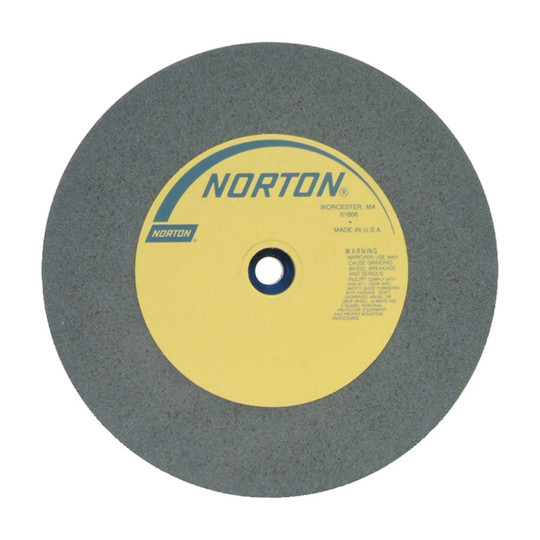

This silicon carbide grinding wheel is designed for operators using bench or pedestal grinders to shape and sharpen carbide tooling and nonferrous materials. Its fine 80-grit abrasive supports controlled offhand grinding work.
The wheel measures 12 inches in diameter by 2 inches thick and has a 1-1/4-inch arbor size. It uses green silicon carbide abrasive in an 80-grit grade for fine shaping and sharpening on carbide tooling and nonferrous materials.
Key Features:
- Silicon carbide abrasive: Supports grinding of carbide tooling and nonferrous materials.
- 80-grit wheel: Provides a fine abrasive grade for shaping and sharpening tasks.
- 12-inch wheel diameter: Fits bench and pedestal grinding applications requiring a 12-inch wheel.
- 1-1/4-inch arbor size: Helps buyers match the wheel to compatible grinder arbor requirements.
Choose this 12-inch, 80-grit silicon carbide wheel for bench or pedestal grinder work involving fine shaping and sharpening of carbide tooling and nonferrous materials.
| Country of Origin: |
US |
| Material: |
Aluminum |
| Product Depth: |
12" |
| Product Height: |
12.6" |
| Product Type: |
Wheel |
| Product Width: |
12" |
| Quantity Included: |
1 |
| Shipping Weight: |
14.85 lbs |
| Manufacturer Part Number: |
66253263360 |
| Center Hole Diameter: |
1-1/4 in |
| Diameter: |
12 in |
| Thickness: |
2 in |
| Abrasive Material: |
Silicon Carbide |
| Brand: |
Norton |
| Converted Form: |
Bench and Pedestal Wheel |
| For Use With: |
Offhand Grinding |
| Grade: |
Medium |
| Grit: |
80 |
| Manufacturers Part Number: |
66253263360 |
| Max RPM: |
2070 rpm |
| Series: |
Gemini |
| Tool Compatibility: |
Bench Grinders |
| Wheel Type: |
Type 1 |
| Warranty: |
1 yr |
| Width: |
12.80
in
|
| Height: |
12.60
in
|
| Depth: |
2.90
in
|
