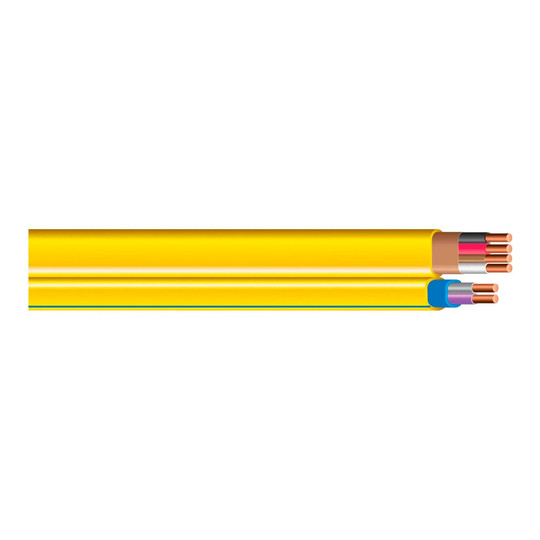

12/3 with Ground and 16/2 NM-B-PCS Duo Cable, 200 ft

This 200 ft NM-B-PCS duo cable is designed for residential wiring professionals installing smart-home lighting controls, including 0-10V DC LED dimming systems. It combines power and control conductors in one cable to support organized wiring installations in normally dry locations.

The nonmetallic-sheathed cable includes 12/3 with ground and 16/2 conductors and has a 600V rating for all conductors. Its yellow jacket provides quick 12 AWG size identification and is designed to pull more easily during installation. The cable is suitable for exposed or concealed work in normally dry locations at temperatures up to 90°C, with ampacity limited to that of 60°C conductors. It may also be run in air voids of masonry block or tile walls that are not wet or damp.

Key Features:

• Duo cable design: Combines 12/3 with ground and 16/2 conductors in a single cable for smart-home lighting-control wiring.
• 200 ft length: Provides a substantial cable length for residential wiring runs.
• Easy-pull jacket: Helps make cable pulling and installation easier.
• Yellow color coding: Allows quick visual identification of the 12 AWG cable size.
• 600V conductor rating: Supports installations requiring cable with 600V-rated conductors.

Choose this NM-B-PCS duo cable for residential smart-lighting wiring where 12/3 with ground and 16/2 conductors are needed in one yellow, easy-pull cable for normally dry locations.
