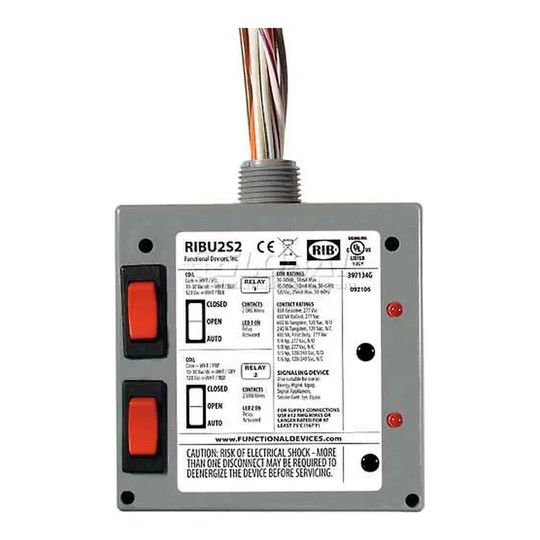

10A dual SPST-NO enclosed relay with override

10A Dual SPST-NO Enclosed Relay with Override

SKU:
WBB1034316
Our Price:
$109.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: US
Product Depth: 4"
Product Height: 1.8"
Product Type: Relays
Product Width: 4"
Quantity Included: 1
Shipping Weight: 87 lbs
Manufacturer Part Number: RIBU2S2
Length: 4 in
Width: 4 in
Height: 1.8 in
Wire Size: 16 in
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: US
Product Depth: 4"
Product Height: 1.8"
Product Type: Relays
Product Width: 4"
Quantity Included: 1
Shipping Weight: 87 lbs
Manufacturer Part Number: RIBU2S2
Length: 4 in
Width: 4 in
Height: 1.8 in
Wire Size: 16 in

This enclosed relay is for electrical installers who need a ready-packaged relay assembly for control work. It combines two normally open SPST relays in an enclosure to reduce the need to source and assemble separate components.

The relay is rated at 10A and has two SPST-NO contacts. It is specified for 10-30 VAC/DC and 120 VAC override. The packaged assembly includes a relay, LED indicator, socket, mounting rail, transient protection, and housing. It measures 4 in. wide by 4 in. deep by 1.8 in. high.

Key Features:

  • Two SPST-NO relays: Provides two normally open relay contacts in one enclosed assembly.
  • 10A rating: Supports applications requiring a 10A relay rating.
  • Integrated components: Includes the relay, LED indicator, socket, mounting rail, transient protection, and housing to reduce separate component purchasing and assembly.
  • Override compatibility: Specified for 10-30 VAC/DC operation with 120 VAC override.

A practical choice for installers seeking a compact, enclosed 10A relay assembly with two SPST-NO contacts and included mounting and protection components.

Country of Origin: US
Product Depth: 4"
Product Height: 1.8"
Product Type: Relays
Product Width: 4"
Quantity Included: 1
Shipping Weight: 87 lbs
Manufacturer Part Number: RIBU2S2
Length: 4 in
Width: 4 in
Height: 1.8 in
Wire Size: 16 in
Amperage: 10 A
Brand: RIB
Contact Type: SPST
Description: Enclosed Relays
Expected Relay Life: 10 Million Cycles Minimum Mechanical
Humidity Range: 5 To 95 Percent (Noncondensing)
Includes: Override
Manufacturers Part Number: RIBU2S2
Number of Relays: 2
Operating Temperature: -30° To 140°F
Voltage: 10-30VAC/DC 120VAC V
Wire Rating: 600V
Warranty: 1 yr
Certifications: UL/cUL
Width: 4.00 in
Height: 1.80 in
Depth: 4.00 in
!
