This 10 mm ratcheting combination wrench is designed for technicians and maintenance professionals who work with metric hex fasteners. It combines an angled open end with a ratcheting box end to help tighten or loosen same-size fasteners in a range of working positions.
Both wrench ends fit 10 mm metric fasteners. The open end is angled 15 degrees from the handle, while the one-way 12-point box end uses a swivel joint that lets the handle move from 0 to 90 degrees to the fastener axis in either direction. The ratcheting head swivels 180 degrees and has a 5-degree take-up angle. Overall length is 160 mm; the open end measures 21.3 mm wide by 5.2 mm thick, and the box end measures 21 mm outside diameter by 7.7 mm thick. Silver finish.
Key Features:
- 10 mm combination profile: Provides open-end and box-end access for the same size metric fastener.
- 15-degree open-end angle: Helps position the wrench on fasteners where handle clearance is limited.
- 12-point ratcheting box end: Allows repeated turning without removing the wrench after each movement.

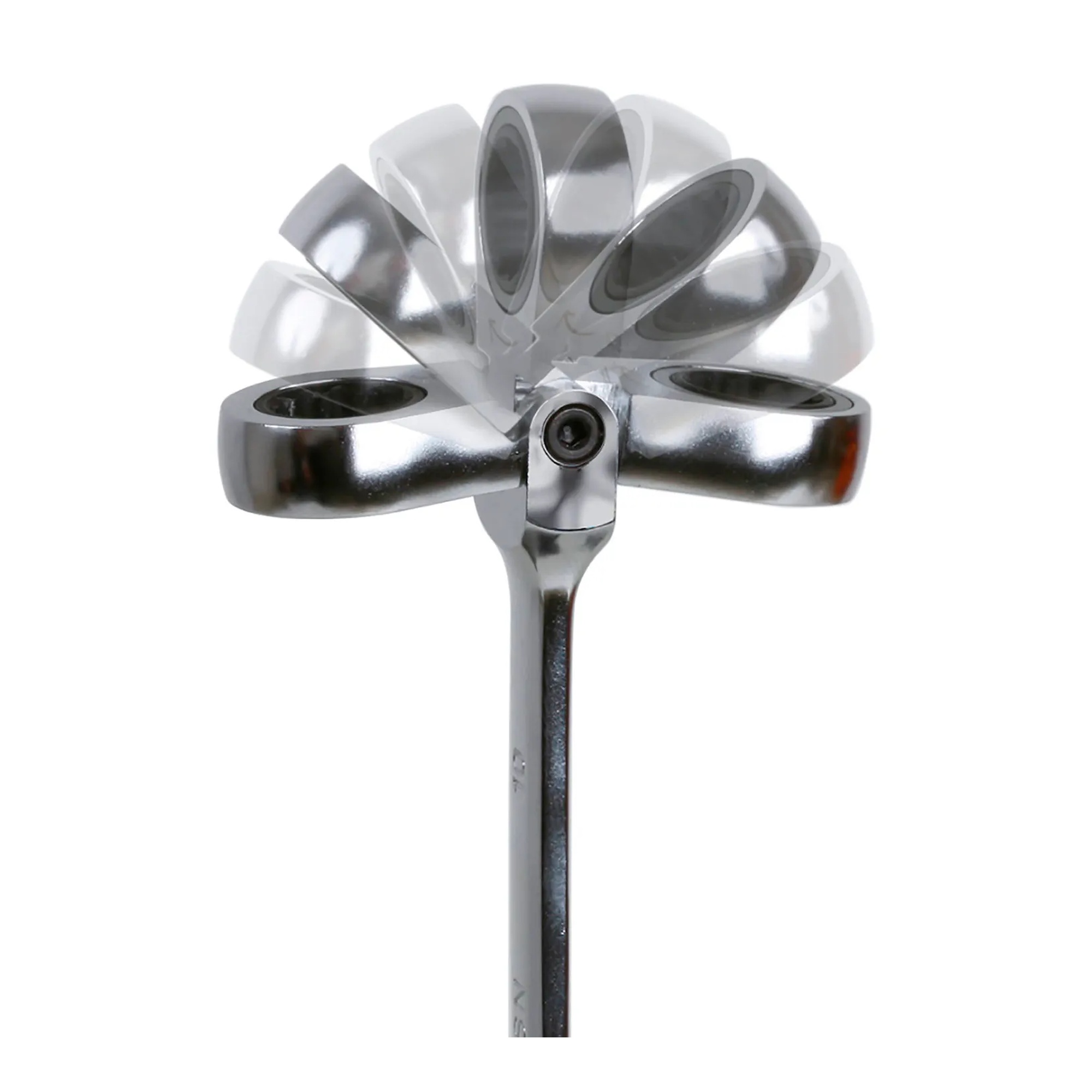

- Flexible swivel head: Lets users adjust the handle angle for access around obstructions.
- 5-degree take-up angle: Supports fastener movement with short handle strokes.
Choose this wrench for 10 mm metric fastening work that benefits from an angled open end, a one-way ratcheting box end, and adjustable head positioning.
| Color/Finish: |
Silver |
| Country of Origin: |
TW |
| Product Depth: |
1.78 |
| Product Height: |
1.38 |
| Product Type: |
Bin |
| Product Width: |
7.88 |
| Quantity Included: |
1 |
| Manufacturer Part Number: |
1420210 |
| Color: |
Silver |
| Length: |
6-5/16 |
| Weight: |
0.1 lbs |
| Opening Size: |
10 in |
| Size: |
10 |
| Manufacturers Part Number: |
001420210 |
| Measuring System: |
Metric (MM) |
| Number of Pieces: |
1 |
| Opening Type: |
Open/Box |
| Ratcheting: |
Yes |
| Socket/Wrench Points: |
12 |
| Type: |
Combination Wrench |
| Shipping Method: |
Parcel |
| Width: |
1.78
in
|
| Height: |
1.38
in
|
| Depth: |
7.88
in
|
