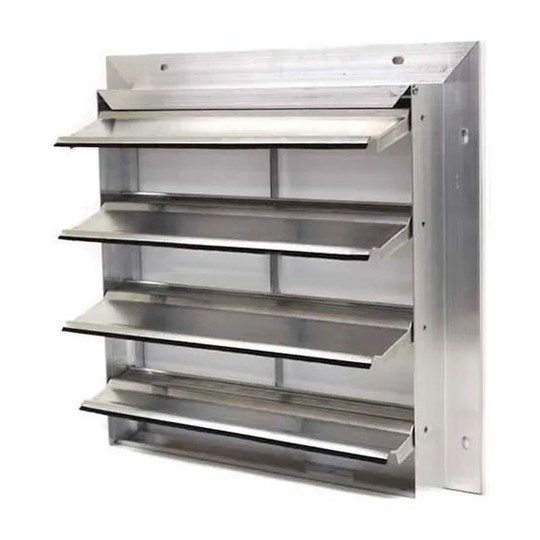

This rear-flanged aluminum wall exhaust shutter is for commercial buyers installing vertical exhaust ventilation. It works with direct-drive or belt-driven exhaust fans to cover the wall opening and provide a shuttered exhaust outlet.
The shutter has a mill-finish aluminum frame and blades, with galvanized reinforcement strips along the top of each blade. Felt seals on the blade leading edges support quieter closing and added weather protection. Overall dimensions are 13 inches wide by 2.5 inches deep by 13 inches high. For vertical exhaust mounting only.
Key Features:
Choose this 10-inch rear-flanged shutter for vertical wall exhaust applications using compatible direct-drive or belt-driven fans.
| Country of Origin: | US |
| Material: | Aluminum |
| Product Depth: | 13" |
| Product Height: | 13" |
| Product Type: | Louvers & Vents |
| Product Width: | 2.5" |
| Quantity Included: | 1 |
| Shipping Weight: | 4 lbs |
| Manufacturer Part Number: | EAS-MF 10 |
| Length: | 2-1/2 in |
| Width: | 13 in |
| Height: | 13 in |
| Inside Width: | 10 in |
| Inside Height: | 10 in |
| Weight: | 4 lbs |
| Free Area: | 0.57 ft³ |
| Inside Dimensions: | 2-1/2 (Length) in |
| Max Pressure In W.G.: | 1 in |
| Max Velocity (per Minute): | 2500 ft/min |
| Rough Opening: | 10.5 x 10.5 in |
| Brand: | Air Conditioning Products |
| Finish: | Mill Finish |
| Flange Style: | Rear Flange |
| For Use With: | 10" Exhaust Fans |
| Manufacturers Part Number: | EAS-MF 10 |
| Mounting Location: | Vertical |
| Number of Panels: | 1 |
| Type: | Gravity |
| Warranty: | 1 yr |
| Width: | 13.00 in |
| Height: | 13.00 in |
| Depth: | 2.50 in |
