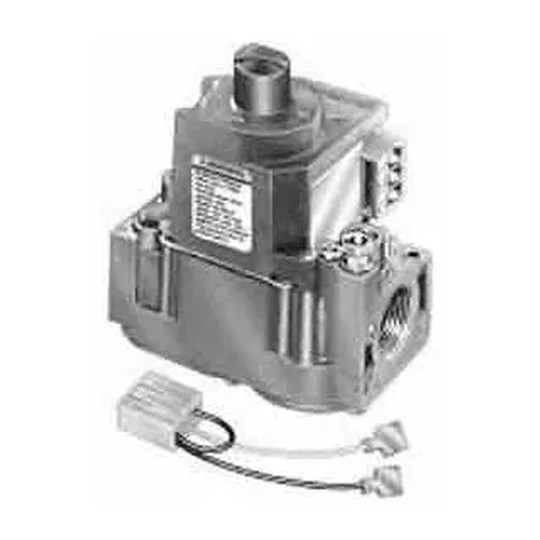

Two-Stage 24 VAC Combination Gas Valve with 3/4 in. Ports

This two-stage combination gas valve is for professionals working with 24 VAC gas-fired appliances. It combines gas control functions to support direct spark, hot-surface, or intermittent-pilot ignition systems.

The valve has 3/4 in. inlet and outlet connections, a 1.7 in. WC low and 3.5 in. WC high pressure regulator setting, and a 30 to 415 CFH capacity range. Its control includes a manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug, and ignition adapter. It is compatible with natural, manufactured, or LP gas and includes a conversion kit for adapting from natural gas to LP gas. Top-accessible adjustments and wiring connections, a 4 in. swing radius, a keyed terminal block, and an internal inlet screen are included.

Key Features:

• Two-stage operation: Supports low and high regulator settings for compatible 24 VAC gas-fired equipment.
• Multiple ignition compatibility: Works with direct spark, hot-surface, and intermittent-pilot ignition systems.
• LP conversion kit: Provides the components needed to adapt the valve from natural gas to LP gas.
• Top-access connections: Keeps adjustments and wiring connections accessible during installation or service.
• Internal inlet screen: Helps block gas-line contaminants from entering the valve.

Choose this combination gas valve for compatible 24 VAC gas-fired appliances requiring two-stage control, 3/4 in. connections, and support for common electronic ignition methods.
