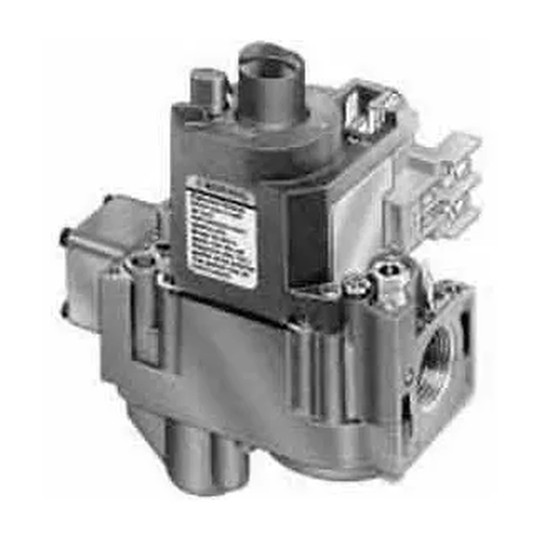

This 24 VAC dual standing-pilot gas valve is a combination gas control for technicians servicing gas-fired standing-pilot appliances. It manages gas flow during a thermostat call for heat while providing manual shutoff, pilot adjustment, pressure regulation, and automatic valve operation.
Designed for 24 VAC gas-fired standing-pilot appliances with capacities from 30 to 300 CFH, this valve has 1/2 in. and 3/4 in. inlet/outlet connections, a standard opening, and a 3.5 in. WC regulator setting. It measures 5.1 in. wide x 6.2 in. deep x 3.2 in. high. The first solenoid-operated automatic valve opens on a thermostat heat call and closes when the call ends; the second diaphragm-operated valve is regulator-controlled and closes if gas or power is interrupted. It is compatible with an ECO connector and uses an OFF-PILOT-ON lighting sequence.
Key Features:
Choose this compact combination gas control for compatible 24 VAC standing-pilot appliances requiring 1/2 in. x 3/4 in. connections and dual automatic gas-valve operation.
| Country of Origin: | MX |
| Product Depth: | 5.1" |
| Product Height: | 3.2" |
| Product Type: | Gas Valves |
| Product Width: | 6.2" |
| Quantity Included: | 1 |
| Shipping Weight: | 2.45 lbs |
| Manufacturer Part Number: | VR8300A3518 |
| Inlet Size: | 1/2 in |
| Outlet Size: | 3/4 in |
| BTU/hr Max: | 190000 |
| BTU/hr Min: | 30000 |
| Brand: | Honeywell |
| Description: | Dual Standing Pilot Gas Valve |
| Fuel Type: | Natural Gas |
| Ignition Type: | Standing Pilot |
| Manufacturers Part Number: | VR8300A3518 |
| Max Operating Pressure: | 1/2 psi |
| Opening Type: | Standard |
| Type: | Straight Through w/ Integral Tapping and Flange |
| Warranty: | 1 yr |
| Width: | 5.10 in |
| Height: | 3.20 in |
| Depth: | 6.20 in |
