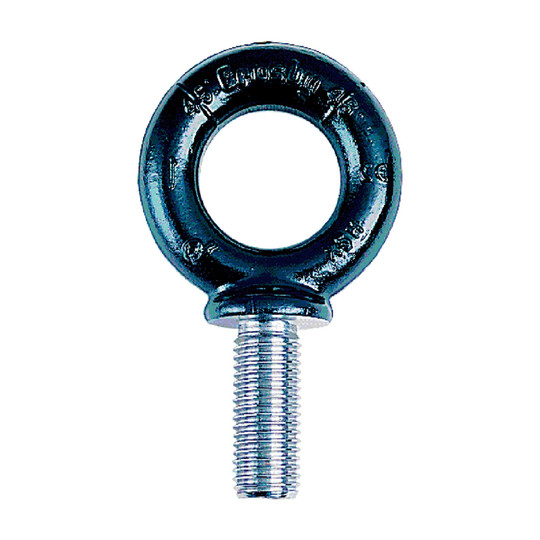

This shoulder machinery eye bolt is a threaded lifting attachment for professionals who need a secure connection point for in-line pulling applications. Its eye provides a practical attachment location where an in-line pull is required.
Constructed of forged steel that is quenched and tempered, this eye bolt has 3/8 in. UNC threads and a 1-1/4 in. length. It is fatigue rated and meets ASME B30.26 requirements. The stated working load limit applies only to in-line pulls; capacity is reduced when used with angular loads.
Key Features:
Choose this 3/8 in. x 1-1/4 in. shoulder eye bolt for compatible threaded applications that call for an in-line pulling attachment point. Use it according to its stated in-line loading guidance.
| Certifications: | UL |
| Country of Origin: | US |
| Material: | Forged Steel |
| Product Depth: | 6" |
| Product Height: | 6" |
| Product Type: | Eye Bolts |
| Product Width: | 6" |
| Quantity Included: | 1 |
| Shipping Weight: | 65 lbs |
| Manufacturer Part Number: | CR-9900208 |
| Weight: | 0.2 |
| Eye Inside Dimension: | 1" |
| Eye Outside Dimension: | 1-5/8" |
| Rated Weight Capacity: | 1,550 WLL lbs |
| Shank Diameter & Thread: | 3/8 - 16 |
| Shank Length: | 1-1/4 in |
| Size: | 3.07"L X 1.62"W |
| Brand: | Crosby |
| Finish: | Black Oxide |
| Manufacturers Part Number: | 9900208 |
| Pattern: | Shoulder |
| Width: | 6.00 in |
| Height: | 6.00 in |
| Depth: | 6.00 in |
