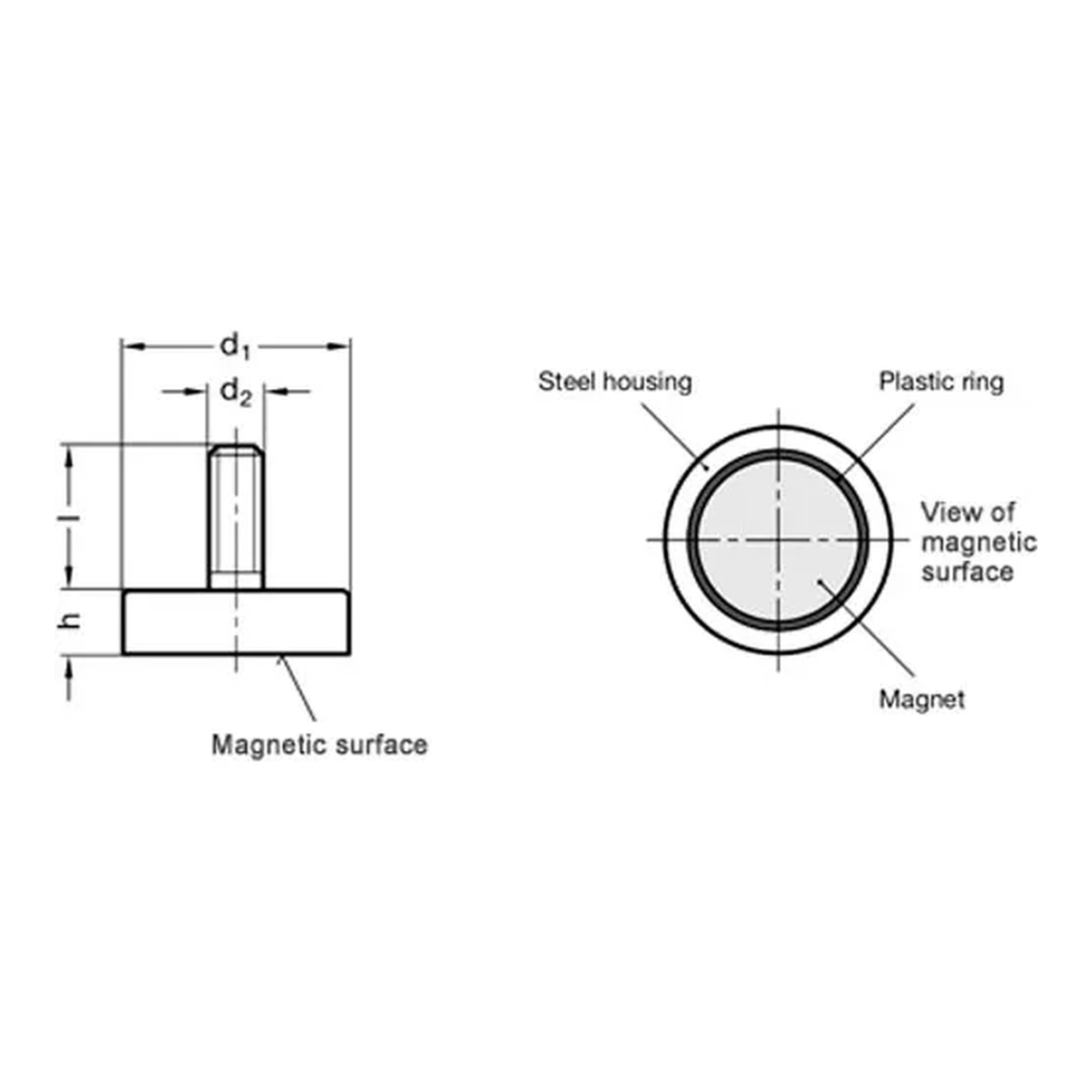

Shielded disc retaining magnet assembly with threaded stud

Shielded Disc Retaining Magnet Assembly with Threaded Stud, 0.98 in. Diameter

SKU:
WBB2157429
Our Price:
$7.39
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: DE
Material: Zinc Plated Steel
Product Depth: 1"
Product Height: 6"
Product Type: Magnets
Product Width: 10"
Quantity Included: 1
Shipping Weight: 42 lbs
Manufacturer Part Number: 50.3-HF-25-M4
Body Thickness (H): 0.28 in
Diameter: 0.98 in
Thread Length (L): 0.31 in
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: DE
Material: Zinc Plated Steel
Product Depth: 1"
Product Height: 6"
Product Type: Magnets
Product Width: 10"
Quantity Included: 1
Shipping Weight: 42 lbs
Manufacturer Part Number: 50.3-HF-25-M4
Body Thickness (H): 0.28 in
Diameter: 0.98 in
Thread Length (L): 0.31 in

This shielded disc retaining magnet assembly is for maintenance and assembly teams that need a threaded magnetic component to retain or position magnetic items. Its threaded stud supports mounting within compatible equipment or assemblies.

The assembly has a disc-shaped, shielded magnetic design with a threaded stud. It uses hard ferrite SrFe material, measures 0.98 inch in diameter, and is temperature resistant to 390°F (200°C).

Key Features:

  • Shielded magnetic assembly: Provides a contained magnetic assembly for retaining applications.
  • Threaded stud: Supports mounting into compatible threaded locations or assemblies.
  • Hard ferrite material: Delivers the specified magnetic material construction.
  • 390°F temperature resistance: Supports use where elevated temperature resistance is required.

Choose this disc-shaped retaining magnet assembly when a shielded hard-ferrite magnet with a threaded stud and 0.98-inch diameter suits the mounting and temperature requirements of your assembly.

Country of Origin: DE
Material: Zinc Plated Steel
Product Depth: 1"
Product Height: 6"
Product Type: Magnets
Product Width: 10"
Quantity Included: 1
Shipping Weight: 42 lbs
Manufacturer Part Number: 50.3-HF-25-M4
Body Thickness (H): 0.28 in
Diameter: 0.98 in
Thread Length (L): 0.31 in
Brand: J.W. Winco
Magnet Construction: Hard Ferrite SrFe (HF type)
Nominal Pulling Force: 40 N
Thread (D2): M4 x .7
Type: With Threaded Stud
Width: 1.00 in
Height: 6.00 in
Depth: 10.00 in
!
