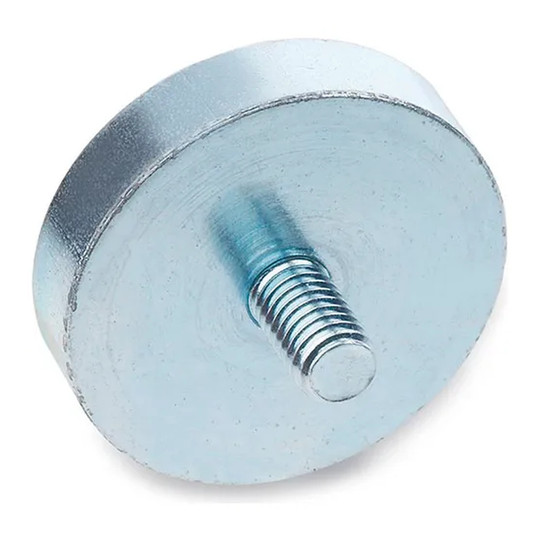

Disc-shaped retaining magnet assembly with threaded stud

Disc Retaining Magnet Assembly with Threaded Stud, 1.26 in. Diameter

SKU:
WBB2157431
Our Price:
$8.19
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: DE
Material: Zinc Plated Steel
Product Depth: 1"
Product Height: 6"
Product Type: Magnets
Product Width: 10"
Quantity Included: 1
Shipping Weight: 66 lbs
Manufacturer Part Number: 50.3-HF-32-M4
Body Thickness (H): 0.28 in
Diameter: 1.26 in
Thread Length (L): 0.31 in
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: DE
Material: Zinc Plated Steel
Product Depth: 1"
Product Height: 6"
Product Type: Magnets
Product Width: 10"
Quantity Included: 1
Shipping Weight: 66 lbs
Manufacturer Part Number: 50.3-HF-32-M4
Body Thickness (H): 0.28 in
Diameter: 1.26 in
Thread Length (L): 0.31 in

This disc-shaped retaining magnet assembly is for maintenance and assembly professionals who need a threaded mounting magnet to help hold components in place. Its threaded stud supports secure attachment where a compact retaining magnet is needed.

The assembly has a shielded magnetic design with a hard ferrite SrFe magnet. It measures 1.26 inches in diameter and is temperature resistant to 390°F (200°C).

Key Features:

  • Threaded Stud: Provides a mounting point for attaching the magnet assembly.
  • Shielded Magnetic Assembly: Delivers a contained magnetic assembly design for retaining applications.
  • Hard Ferrite Magnet: Uses hard ferrite SrFe magnetic material.
  • 390°F Temperature Resistance: Supports use in environments with temperatures up to 390°F (200°C).

Choose this disc retaining magnet assembly when a shielded, threaded-stud magnet with a 1.26-inch diameter fits your attachment and retention requirements.

Country of Origin: DE
Material: Zinc Plated Steel
Product Depth: 1"
Product Height: 6"
Product Type: Magnets
Product Width: 10"
Quantity Included: 1
Shipping Weight: 66 lbs
Manufacturer Part Number: 50.3-HF-32-M4
Body Thickness (H): 0.28 in
Diameter: 1.26 in
Thread Length (L): 0.31 in
Brand: J.W. Winco
Magnet Construction: Hard Ferrite SrFe (HF type)
Nominal Pulling Force: 80 N
Thread (D2): M4 x .7
Type: With Threaded Stud
Width: 1.00 in
Height: 6.00 in
Depth: 10.00 in
!
