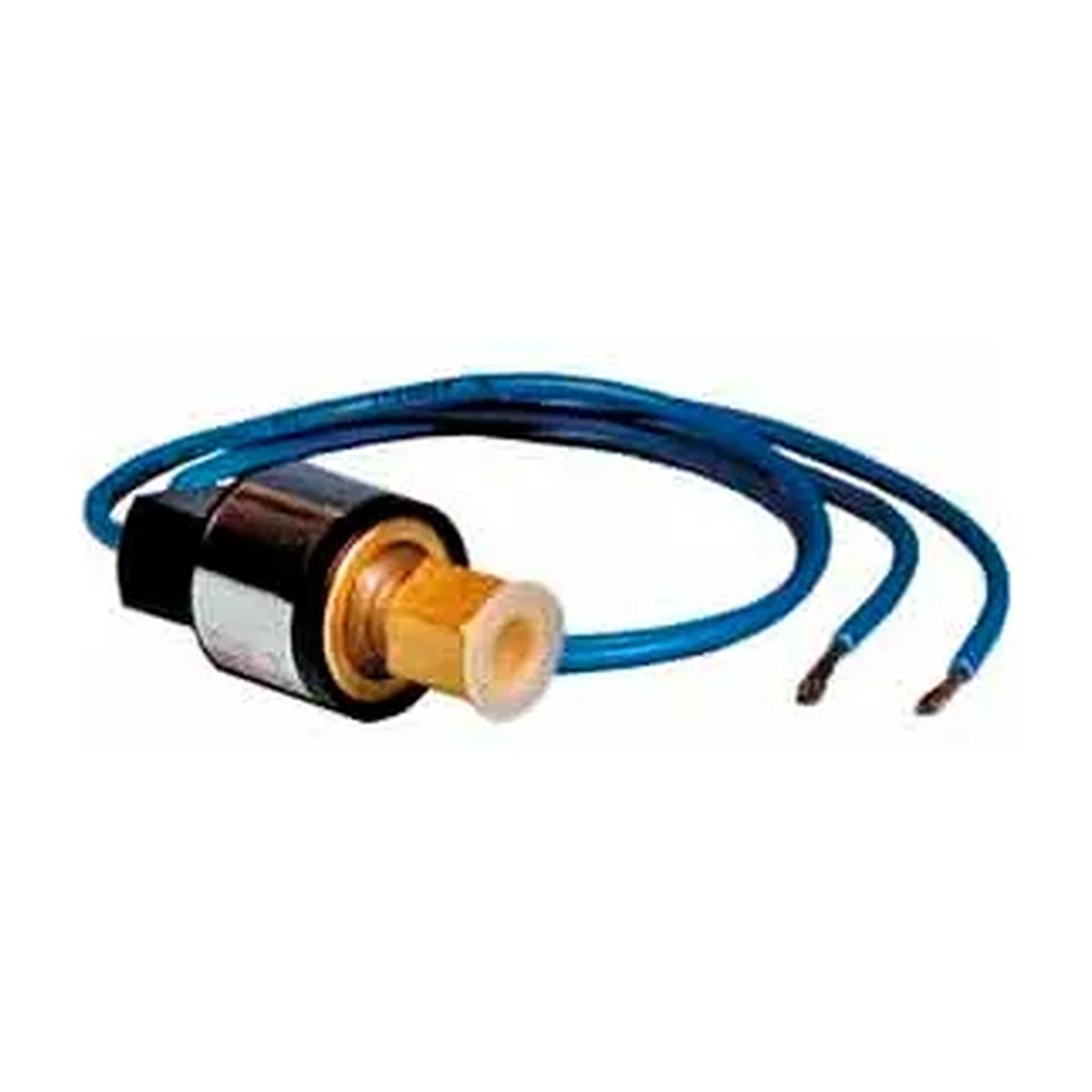

Low-Pressure SPST Switch, 10 PSI Open/25 PSI Closed

This low-pressure SPST switch is for HVAC technicians and service professionals who need to control equipment operation in response to system pressure. It opens at 10 PSI and closes at 25 PSI for low-pressure control and condenser fan cycling applications.

The switch uses a snap-acting, hermetically sealed stainless steel sensor and a 1/4-inch SAE female flare connection with a valve core depressor. It is designed for direct mounting and operates on 24, 120, or 240 volts at 50/60 Hz. The pressure range is 0 to 650 PSI, with a 5,000 PSI burst pressure and a 100,000-cycle life rating. Rated ambient temperature is 20°F to 176°F, and rated fluid temperature is 60°F to 250°F.

Key Features:

• 10 PSI open point: Provides low-pressure switching when pressure falls to 10 PSI.
• 25 PSI close point: Restores the circuit when pressure rises to 25 PSI.
• SPST snap action: Delivers a responsive on/off switching action.
• 1/4-inch SAE flare connection: Supports connection to compatible systems with a valve core depressor.
• Hermetically sealed sensor: Uses a stainless steel sensor designed for pressure-switch operation.
• Direct-mount design: Small, lightweight construction supports direct installation.

Choose this pressure switch for compatible HVAC pressure-control setups requiring SPST operation with 10 PSI opening and 25 PSI closing points.
