J-Shank Interchangeable-Head Torque Wrench, 20–100 Nm

This J-shank interchangeable-head torque wrench helps maintenance and industrial technicians apply controlled torque during fastening work. Its adjustable 20–100 Nm range supports accurate tightening where consistent torque is required.

The wrench has a single scale, dual-direction operation, and a positive lock with a spring-loaded pull-down lock ring. Its flex head pivots 15 degrees in either direction, and laser-marked scale markings are designed for clear reading. Clockwise accuracy is rated at ±3% of indicated value from 20% to 100% of full scale. The wrench measures 17.375 in. deep, 3.78 in. wide, and 2.51 in. high.

Key Features:

• 20–100 Nm range: Provides an adjustable torque range for controlled fastening tasks.
• Dual-direction operation: Allows torque application in either direction.
• Positive locking ring: Helps keep the selected setting in place during use.
• 15-degree flex head: Supports access and positioning in constrained work areas.

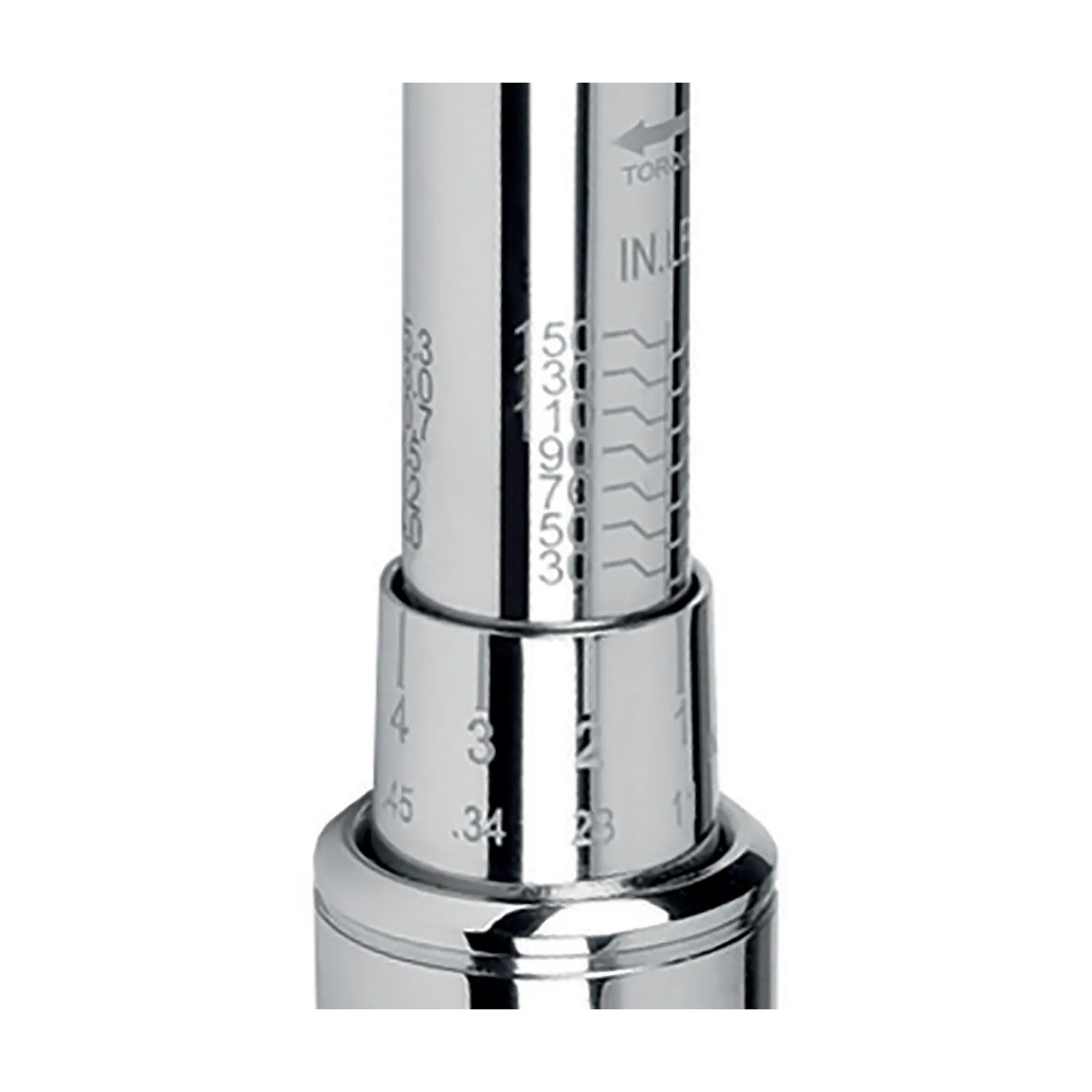

• Laser-marked scale: Makes the torque setting easier to read.
• Documented accuracy: Rated at ±3% clockwise accuracy from 20% to 100% of full scale and supplied with a matching calibration certificate traceable to NIST.

Choose this torque wrench for industrial fastening work requiring a J-shank interchangeable-head design, dual-direction operation, and a 20–100 Nm adjustment range.
