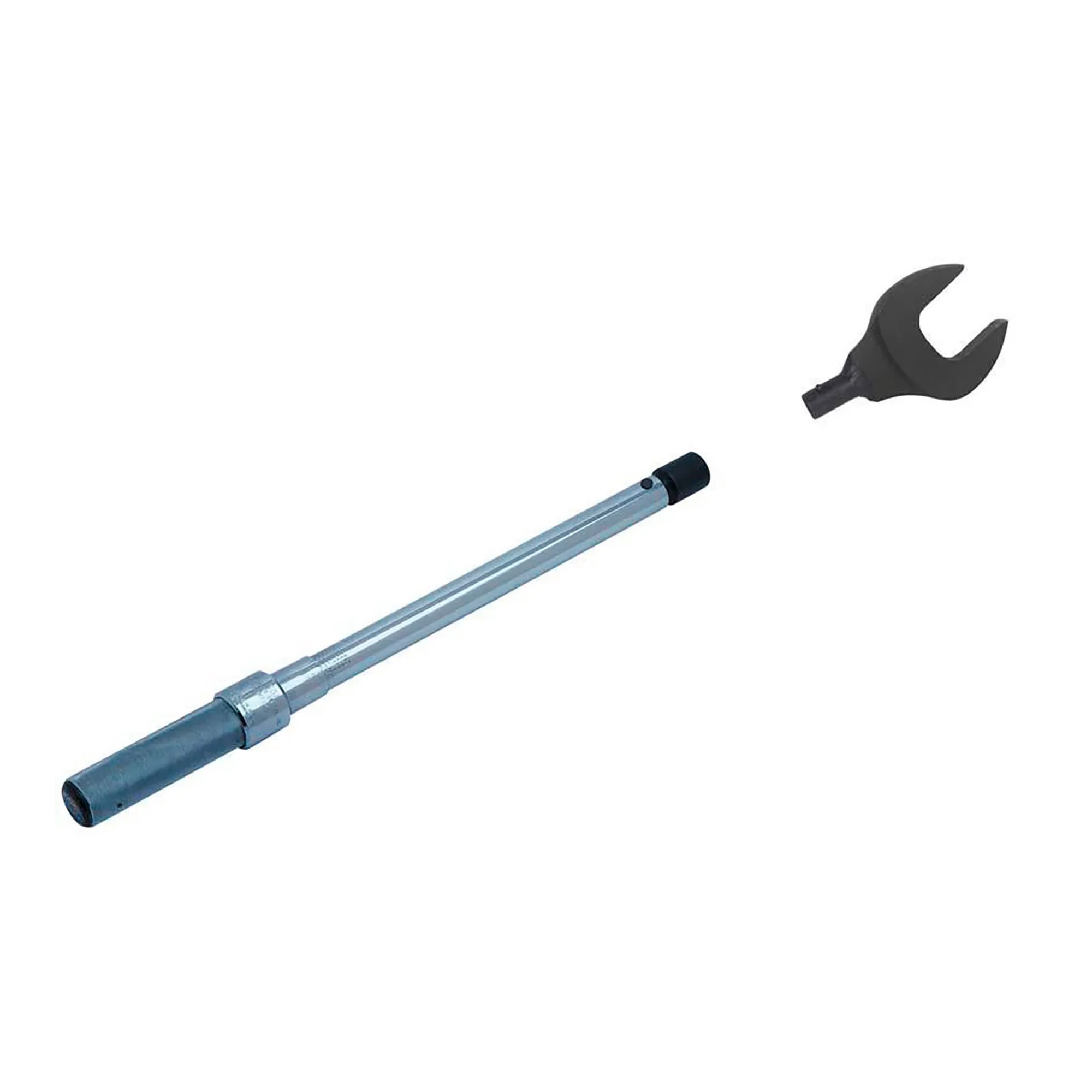

This interchangeable-head torque wrench is designed for maintenance and industrial professionals who need controlled fastener tightening. Its 5–75 ft-lb range supports torque-setting work where repeatable application is important.
The wrench has a single scale, dual-direction operation, and a positive lock with a spring-loaded pull-down lock ring. Its flex head pivots 15 degrees in either direction, and laser-marked scale markings are designed for easy reading. Clockwise accuracy is ±3% of the indicated value from 20% to 100% of full scale. The tool measures 17 inches long, 3.75 inches wide, and 2.46 inches high.
Key Features:
- 5–75 ft-lb range: Supports controlled torque settings across a range of fastening tasks.
- Dual-direction operation: Allows torque application in either direction.
- Positive locking ring: Helps hold the selected torque setting during use.
- 15-degree pivoting flex head: Provides added access when working around obstructions.
- Laser-marked scale: Makes torque settings easier to read.
- Calibration documentation: Includes a matching calibration certificate traceable to NIST.
Choose this torque wrench for industrial tightening tasks requiring an interchangeable head, readable settings, and controlled clockwise torque performance.
| Color/Finish: |
Silver |
| Country of Origin: |
US |
| Product Depth: |
3.75 |
| Product Height: |
2.46 |
| Product Type: |
Torque Wrenches & Multipliers |
| Product Width: |
17 |
| Quantity Included: |
1 |
| Manufacturer Part Number: |
75MFIMHSSW |
| Color: |
Silver |
| Length: |
16 in |
| Drive Size: |
J Shank in |
| Max Torque: |
900 lb-in |
| Manufacturers Part Number: |
75MFIMHSSW |
| Type: |
Interchangeable Head Torque Wrench |
| Certifications: |
Calibration Certificate, ASME Standards, ISO 6789 |
| Shipping Method: |
Parcel |
| Width: |
3.75
in
|
| Height: |
2.46
in
|
| Depth: |
17.00
in
|
