Floor Boxes

Floor boxes provide floor-level locations for power, communication, and cable connections in commercial electrical installations. This category includes floor boxes and compatible components for raised, wood, tile, open-space, and poke-through floor applications, helping electrical installers and facility teams configure accessible service points and organize routed cables.

Product Display:
Helpful Buying Guide

Choose floor box components for the installation you are building

Floor-level electrical and communication installations can require more than a box alone. Compare the floor construction, system format, gang size, device connection needs, cable-access features, and compatibility details before selecting a floor box, plate, flange, housing, or retrofit component.

Visual Guide

Popular examples in this category

Floor Box Barrier KitFloor Box Barrier KitWBB8835781-Gang Poke-Through Conduit Housing Assembly, 3/4 Inch1-Gang Poke-Through Conduit Housing Assembly, 3/4 InchWBB8836986-Port Communication Plate for CRFB Series Floor Boxes6-Port Communication Plate for CRFB Series Floor BoxesWBB884191White Floor Box with Communication Flange and Slide HolderWhite Floor Box with Communication Flange and Slide HolderWBB884199
Use Cases

Bring connections to floor level

Use floor boxes and related components to create accessible locations for power, communication, audio/video devices, receptacles, and cable routing through the floor.

How to Choose

Match the system and opening

Confirm whether the project uses a compatible floor box series, poke-through system, cellular raceway system, 3/4-inch conduit, or an 8-inch core-hole system. Also compare gang configuration and listed dimensions.

Applications

Consider the floor environment

Available options support raised and wood floors, tile-floor applications, open-space installations, and qualifying air-handling spaces. Some components also support floors rated up to 2 hours.

Additional Information

Plan for access and protection

Some components include flip-top coverage, recessed self-closing handles, auto-closing egress doors, lock-open positions, scrub water protection, or the listed protection feature for installed assemblies.

2-gangTile flange option

A two-gang floor box format is available for tile-floor installations.

6 portsCommunication capacity

A communication plate provides six positions for compatible communication devices.

3/4 in.Conduit compatibility

One poke-through housing assembly matches installations using 3/4-inch conduit.

Up to 2 hoursFloor rating support

Specified poke-through components support installation in floors rated up to 2 hours.

Comparison Guide

Compare the main floor box product types

Use the installation format and connection requirements to narrow the type of component needed.

Product typeRepresentative configurationsKey selection factors
Floor boxesTwo-gang tile flange box; communication floor box for raised or wood floorsFloor type, gang requirement, communication configuration, cover compatibility
Poke-through componentsConduit housing, activate plate, flange assembly, retrofit kit, device platesCore-hole or conduit requirement, cable access, air-handling-space suitability, floor rating support
Device and communication platesSingle-receptacle plate, AAP plate, decorator plate, six-port communication plateCompatible floor box series, device type, port count, listed dimensions
Planning Guide

Plan the right fit before choosing

Start with the floor box format

Choose a box or component that fits the installation approach

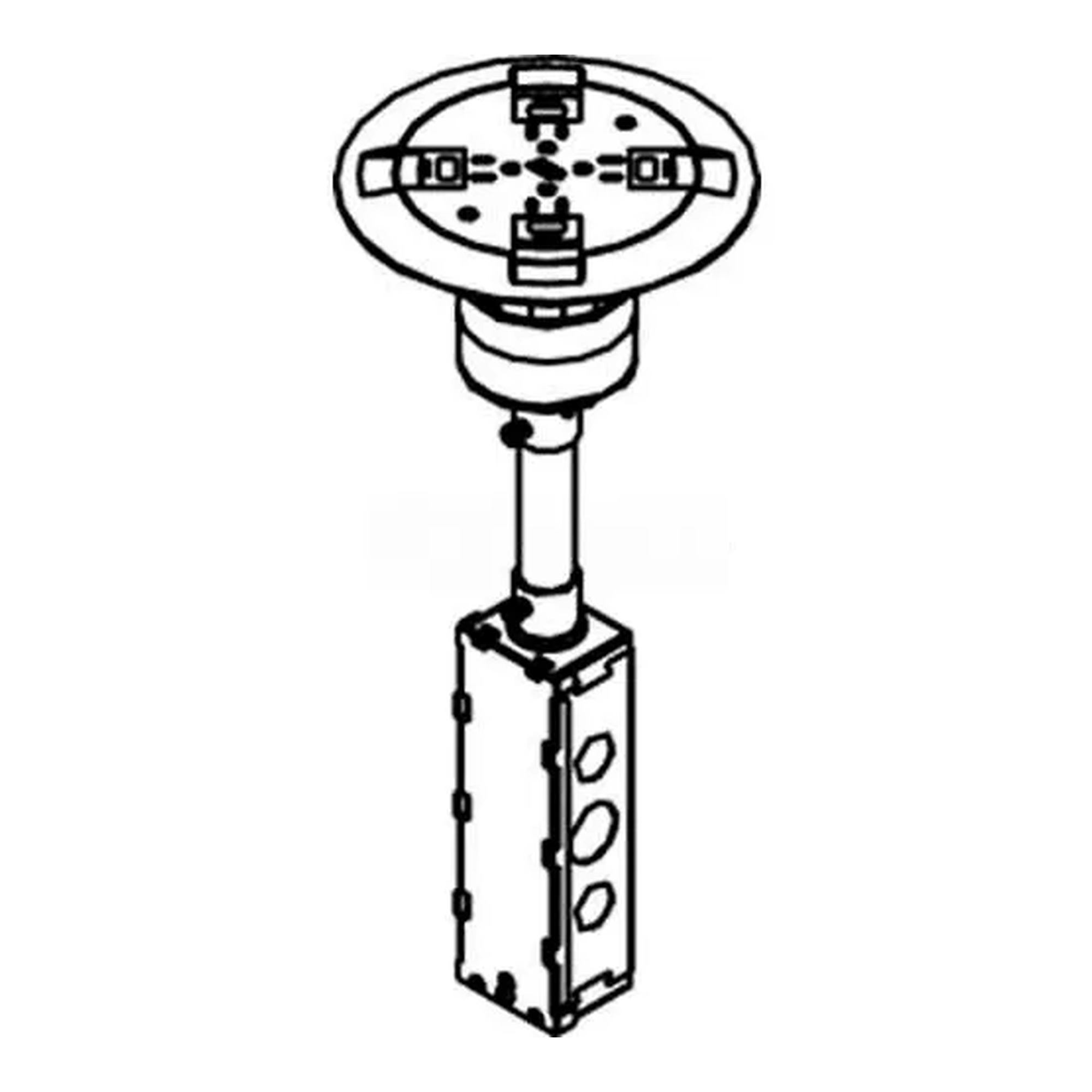

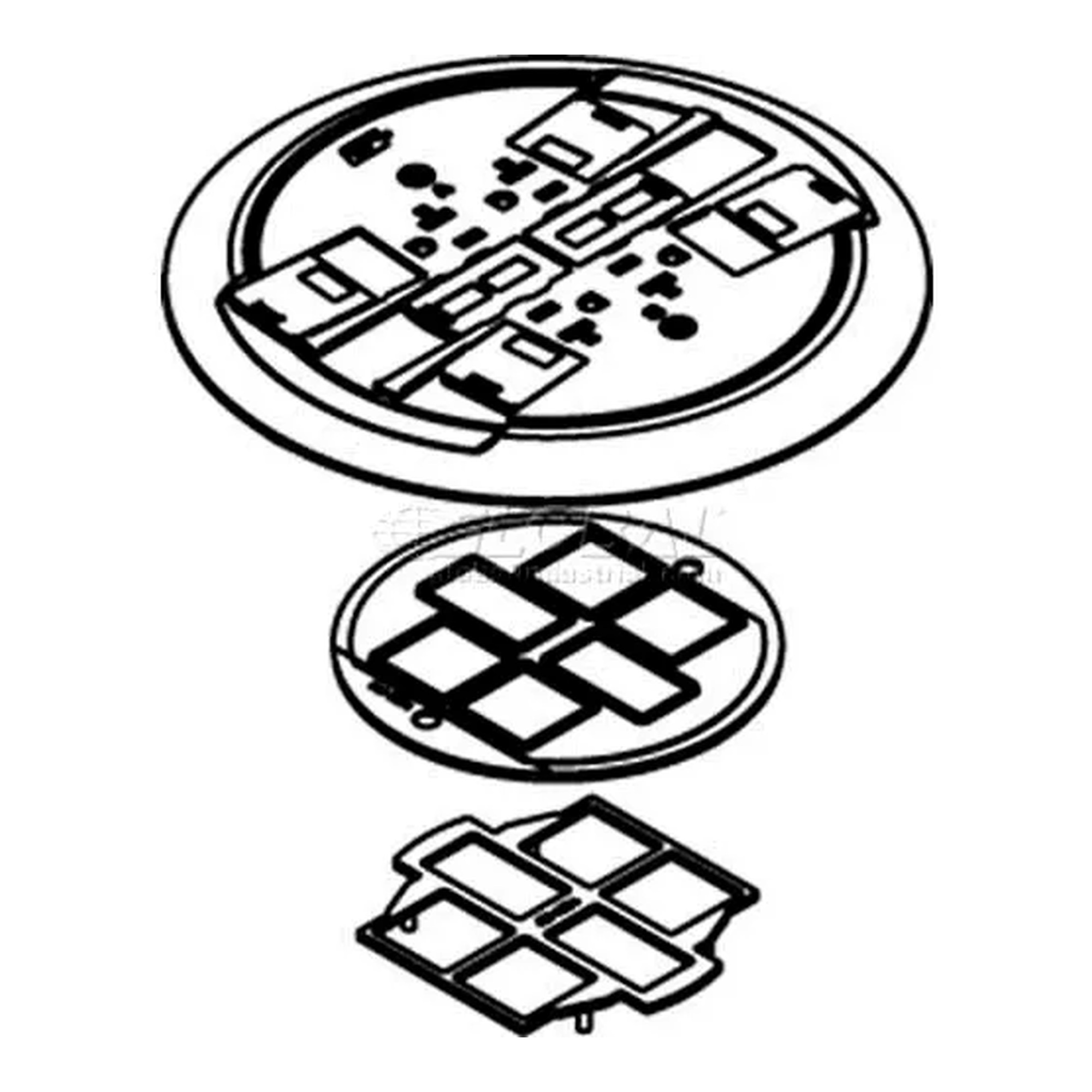

Floor box options in this category include a two-gang tile flange box and a white floor box with a communication flange and slide holder for raised or wood floors. Poke-through components include conduit housings, activate plates, flanges, slide holder assemblies, retrofit kits, and device plates.

  • Choose two-gang capacity where a two-gang floor box format is required.

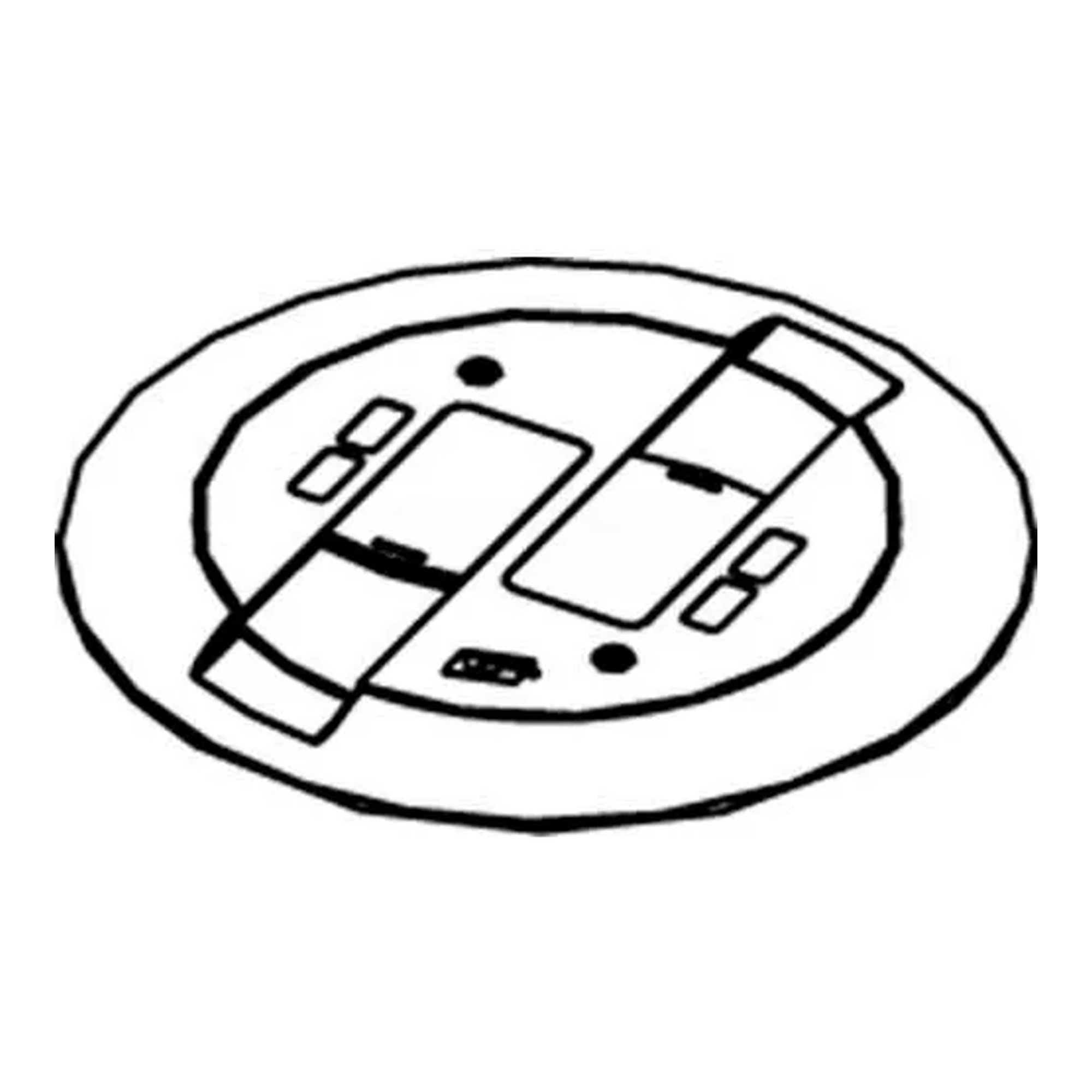

  • For raised or wood floors, consider a floor box with a communication flange, slide holder, and flip-top cover plate.
  • For tile applications, select a tile flange configuration.
  • For poke-through work, verify the required housing, activate plate, flange, device plate, or retrofit component.
Configure services and cable access

Match plates and access features to the connections being installed

Device and communication plates help configure compatible floor boxes for receptacles, decorator-style devices, AAP devices, and audio/video devices. Cable-access components with egress doors can close around installed cables and lock open during cable positioning.

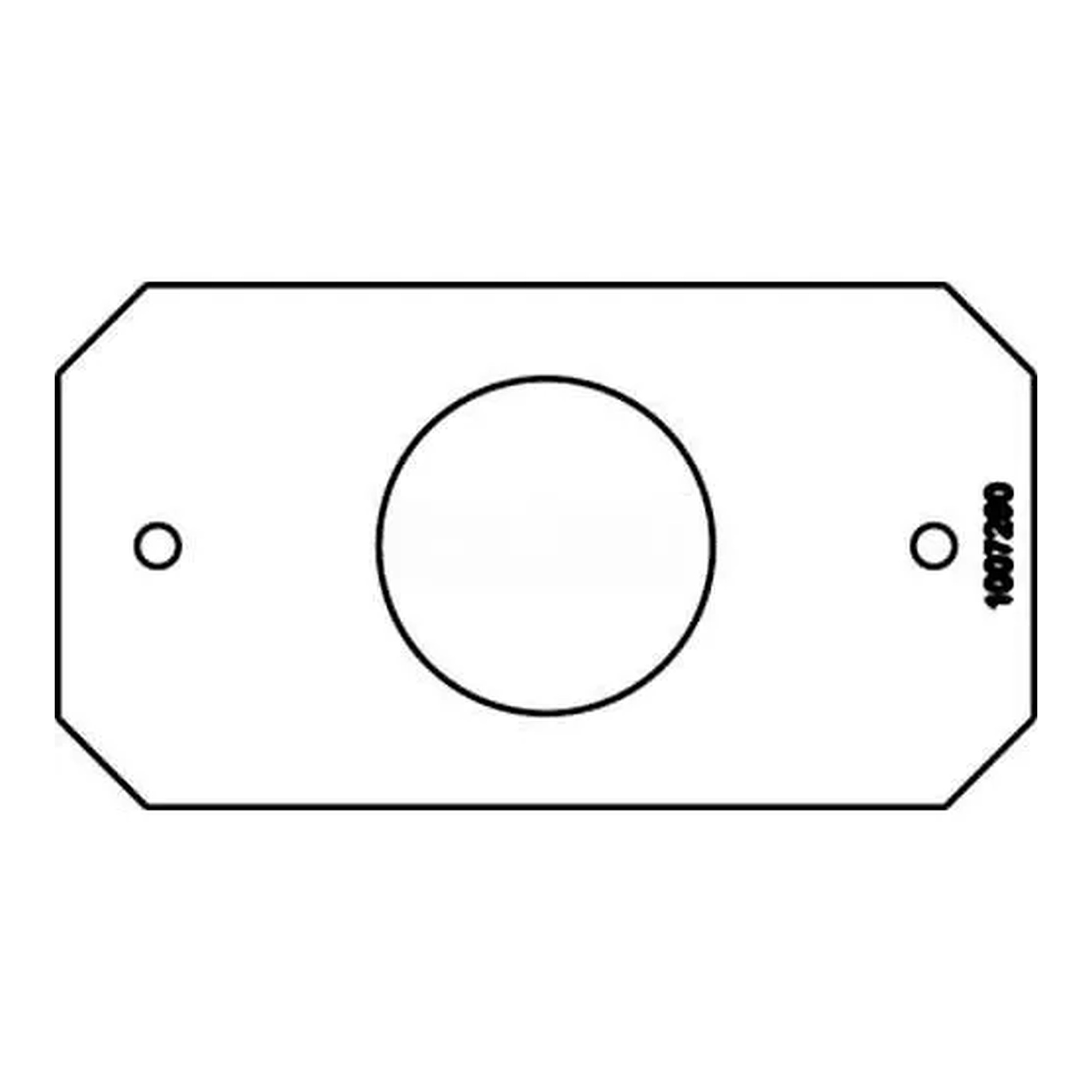

  • Select a single-receptacle device plate when a defined 1.6-inch receptacle opening is needed.
  • Choose a six-port communication plate for multiple communication-device connection positions.
  • Consider a device plate with independent compartments when organized power and communication routing is needed.
  • Use auto-closing egress doors when routing cables through a poke-through opening.
Confirm compatibility and project conditions

Review dimensions, ratings, and installation details before purchase

Several components are made for specific compatible floor box series or systems. Listed sizes, conduit compatibility, core-hole requirements, cover compatibility, and floor conditions help determine the appropriate selection. Certain poke-through assemblies and retrofit kits are suitable for qualifying air-handling spaces in accordance with NEC Section 300.22(C) and support floors rated up to 2 hours.

  • Compare listed dimensions with the planned floor box or project opening.
  • Verify 3/4-inch conduit compatibility where applicable.

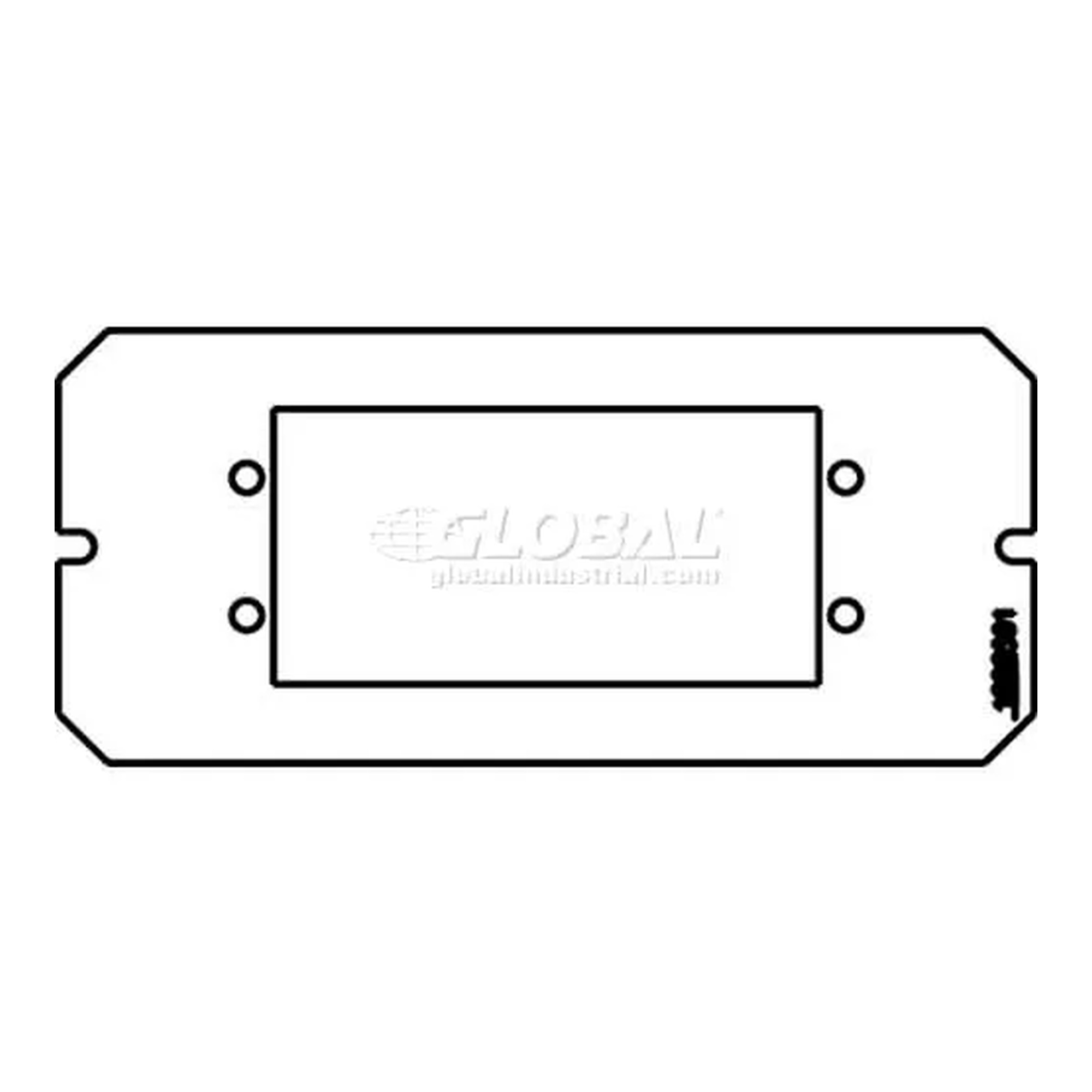

  • Match an 8-inch core-hole system when selecting the applicable poke-through AAP plate.
  • Check whether existing covers, round covers, or mounting brackets are compatible with the selected configuration.
FAQ

Common questions before buying

What types of floor box products are included?

The category includes floor boxes, poke-through housings and plates, flanges, device plates, communication plates, barrier kits, and retrofit kits.

Which options support cable routing through a floor opening?

Poke-through conduit housings and activate plates provide cable access with egress doors that close around cables; the doors can also lock open while cables are positioned.

How do I choose a communication plate?

Match the plate to the compatible floor box series and the required device layout, such as six communication ports or support for audio/video devices.

Are any components intended for rated floors or air-handling spaces?

Specified poke-through flange and retrofit components support floors rated up to 2 hours and are suitable for qualifying air-handling spaces in accordance with NEC Section 300.22(C).

!
