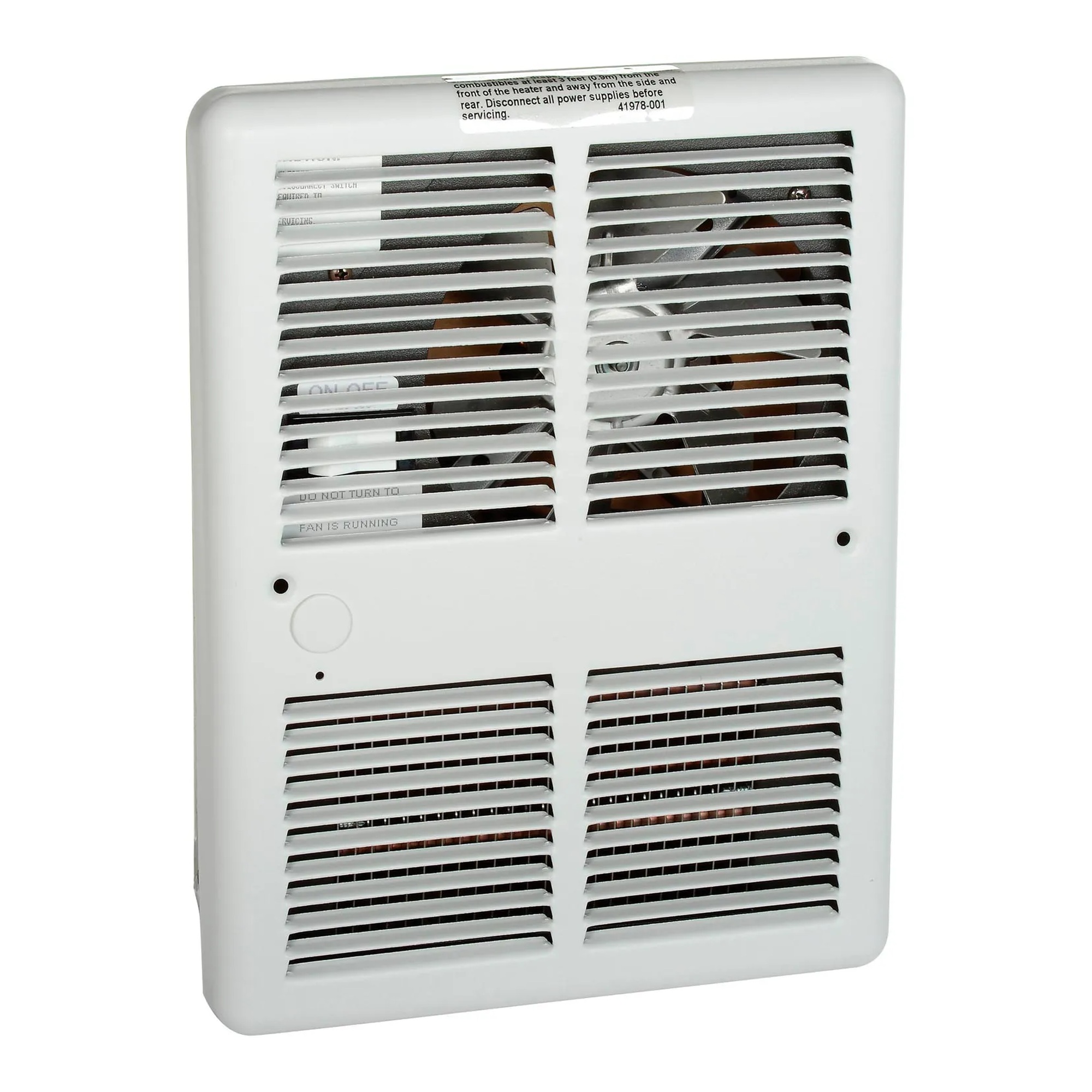

White fan-forced ceiling heater with grille

Fan-Forced Ceiling Heater, 750-2000W, 240/208V, White

SKU:
WBB45376
Our Price:
$415.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Airflow (CFM): 100 CFM
Color/Finish: White
Country of Origin: US
Material: Steel
Product Depth: 3.625"
Product Height: 9.25"
Product Type: Ceiling Mounted Heaters
Product Width: 9.25"
Quantity Included: 1
Shipping Weight: 6 lbs
Voltage: 240/208 V
Warranty: 1 yr
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Airflow (CFM): 100 CFM
Color/Finish: White
Country of Origin: US
Material: Steel
Product Depth: 3.625"
Product Height: 9.25"
Product Type: Ceiling Mounted Heaters
Product Width: 9.25"
Quantity Included: 1
Shipping Weight: 6 lbs
Voltage: 240/208 V
Warranty: 1 yr

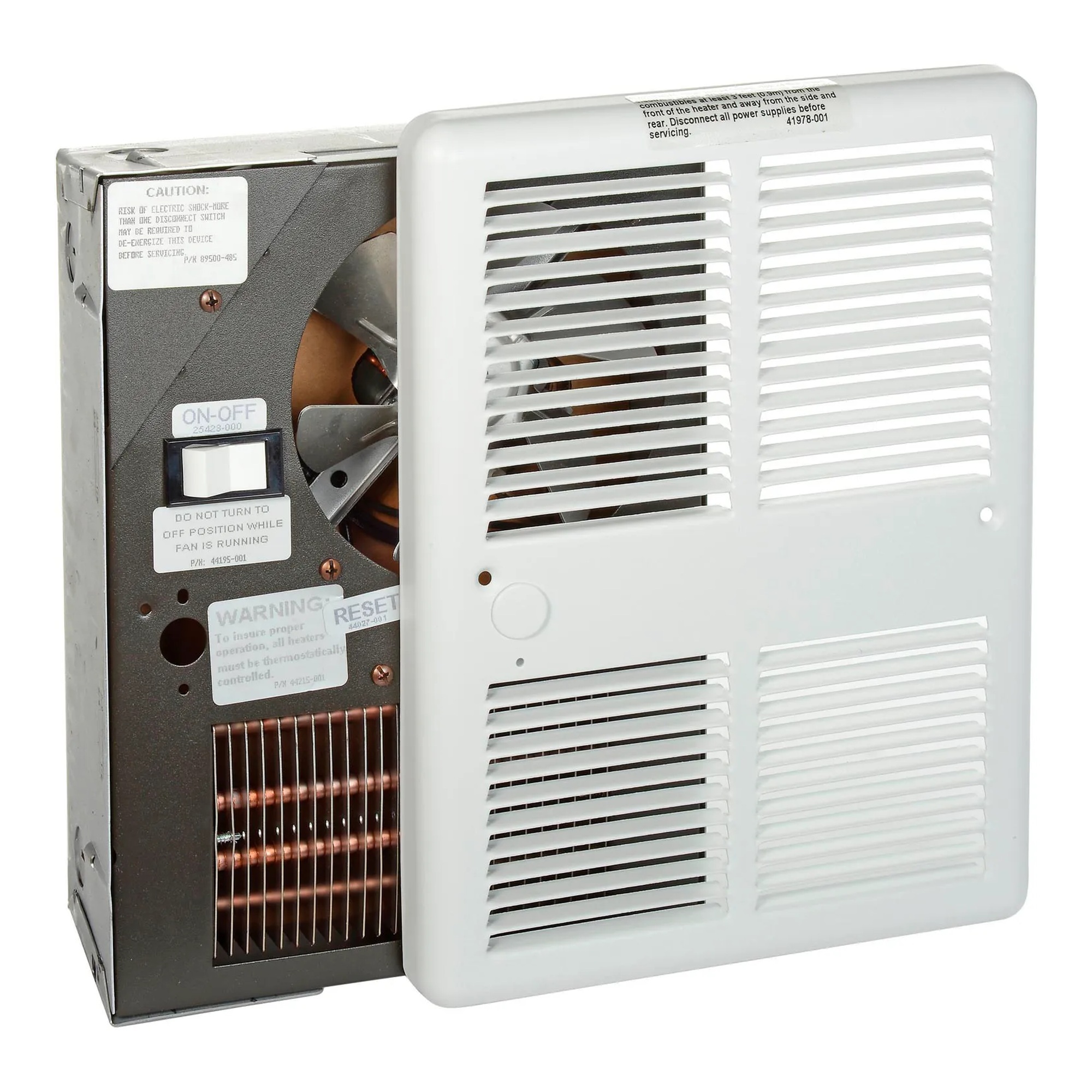

This fan-forced ceiling heater is an electric heating unit for commercial buyers who need overhead heat while preserving floor space. It installs in the ceiling and circulates warmed air with a propeller-style fan.

Select 2000, 1500, 1000, or 750 watts during installation; the heater ships wired for the highest wattage. It operates on 240/208V and delivers 100 CFM through a 1060 RPM motor. The unit has an 18-gauge steel front with a white powder-coated finish, a steel block-fin element, and a manual-reset thermal limit. Rough-in dimensions are 12-1/8 in. L x 9-1/4 in. W x 3-5/8 in. D, and the grille measures 13 in. L x 9-13/16 in. W. A remote single-pole wall thermostat requires a 4-wire supply and is not included.

Key Features:

  • Selectable wattage: Lets installers choose 750, 1000, 1500, or 2000 watts during installation.
  • Fan-forced airflow: Provides 100 CFM of air movement to distribute heat.
  • Steel front panel: Offers durable construction with a white powder-coated finish.
  • Manual-reset thermal limit: Adds a resettable thermal safety control.

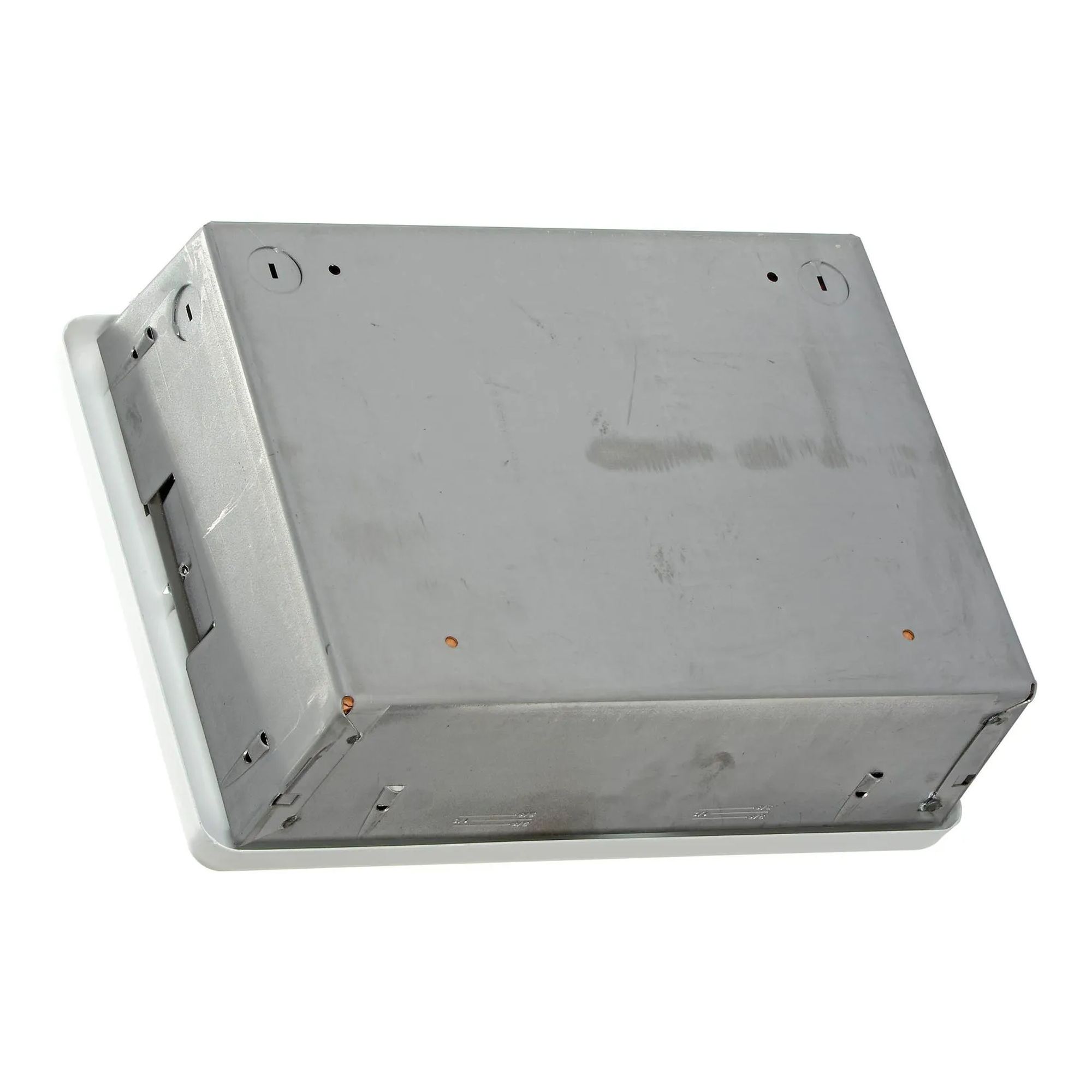

  • Ceiling rough-in design: Includes drywall-depth embossments on the back can to assist installation.

Choose this ceiling-mounted electric heater when selectable wattage, fan-forced circulation, and a compact ceiling rough-in are required. It is suited for 240/208V installations using the specified dimensions and thermostat wiring requirements.

Airflow (CFM): 100 CFM
Color/Finish: White
Country of Origin: US
Material: Steel
Product Depth: 3.625"
Product Height: 9.25"
Product Type: Ceiling Mounted Heaters
Product Width: 9.25"
Quantity Included: 1
Shipping Weight: 6 lbs
Voltage: 240/208 V
Warranty: 1 yr
Manufacturer Part Number: H3032DWBW
Color: White
Length: 12-1/8 in
Width: 9-1/4 in
Depth: 3-5/8 in
Height: 12-1/8 in
Weight: 6 lbs
Amperage: 8.3 A
BTU: 6826 BTU
Brand: TPI
CFM: 100 CFM
Manufacturers Part Number: H3032DWBW
Mounting Style: Recessed or Surface
Phase: 1
Thermostat: No
Type: Forced Air Heater
Wattage: 750/1500/1000/2000 W
Watts High: 750/1000/1500/2000 W
Certifications: cETLus
Width: 3.63 in
Height: 9.25 in
Depth: 12.13 in
!
