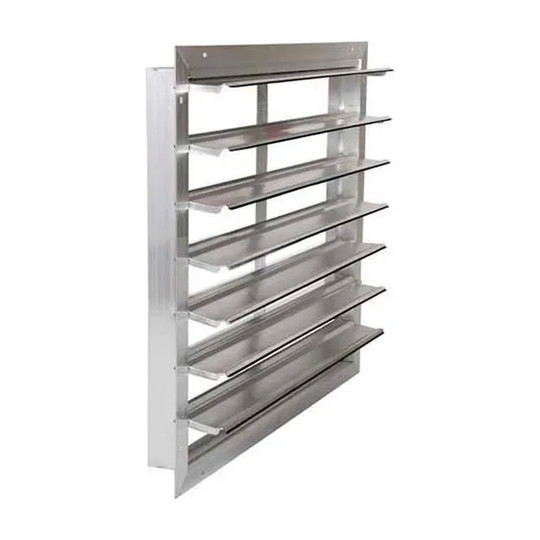

This front-flange wall exhaust shutter is used with exhaust fan installations to help manage airflow through vertical wall openings. It is suited for commercial buyers seeking a shutter for cabinet fans or flush-mounted direct-drive and belt-driven exhaust fans in areas where corrosion may be a concern.
The shutter has a mill-finish aluminum frame and blades, with galvanized reinforcement strips along the top of each blade. Felt seals on the blade leading edges support quiet closing and weather protection. It measures 21 inches wide by 21 inches high by 2.5 inches deep and is recommended for vertical-mount exhaust applications only.
Key Features:
Choose this 18-inch aluminum shutter for vertical wall exhaust applications requiring a front-flange design and compatibility with common cabinet or flush-mounted exhaust fan configurations.
| Country of Origin: | US |
| Material: | Aluminum |
| Product Depth: | 21" |
| Product Height: | 21" |
| Product Type: | Louvers & Vents |
| Product Width: | 2.5" |
| Quantity Included: | 1 |
| Shipping Weight: | 7.5 lbs |
| Manufacturer Part Number: | EASR-MF 18 |
| Length: | 2-1/2 in |
| Width: | 21 in |
| Height: | 21 in |
| Inside Width: | 18 in |
| Inside Height: | 18 in |
| Weight: | 8 lbs |
| Free Area: | 1.82 ft³ |
| Inside Dimensions: | 2-1/2 (Length) in |
| Max Pressure In W.G.: | 1 in |
| Max Velocity (per Minute): | 2500 ft/min |
| Rough Opening: | 18.5 x 18.5 in |
| Brand: | Air Conditioning Products |
| Finish: | Mill Finish |
| Flange Style: | Front Flange |
| For Use With: | 18" Exhaust Fans |
| Manufacturers Part Number: | EASR-MF 18 |
| Mounting Location: | Vertical |
| Number of Panels: | 1 |
| Type: | Gravity |
| Warranty: | 1 yr |
| Width: | 21.00 in |
| Height: | 21.00 in |
| Depth: | 2.50 in |
