12-inch flanged motorized volume control damper

12-Inch Flanged Motorized Volume Control Damper

SKU:
WBB771581
Model/MPN:
AMD 12
Our Price:
$309.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: US
Material: Aluminum
Product Depth: 9
Product Height: 15
Product Type: Dampers
Product Width: 16
Quantity Included: 1
Manufacturer Part Number: AMD 12
Weight: 10 lbs
Diameter: 12 in
Free Area: 0.84 ft³
Max Pressure In W.G.: 4 in
Max Velocity: 3500 ft/min
Rough Opening: 13 x 13 in
Brand Name: Air Conditioning Products
For Use With: 12" Exhaust or Supply Fans
Manufacturers Part Number: AMD 12
Mounting Location: Vertical or Horizontal
Number of Panels: 1
Type: Motorized
Warranty: 1 yr
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: US
Material: Aluminum
Product Depth: 9
Product Height: 15
Product Type: Dampers
Product Width: 16
Quantity Included: 1
Manufacturer Part Number: AMD 12
Weight: 10 lbs
Diameter: 12 in
Free Area: 0.84 ft³
Max Pressure In W.G.: 4 in
Max Velocity: 3500 ft/min
Rough Opening: 13 x 13 in
Brand Name: Air Conditioning Products
For Use With: 12" Exhaust or Supply Fans
Manufacturers Part Number: AMD 12
Mounting Location: Vertical or Horizontal
Number of Panels: 1
Type: Motorized
Warranty: 1 yr
Shipping Method: Parcel

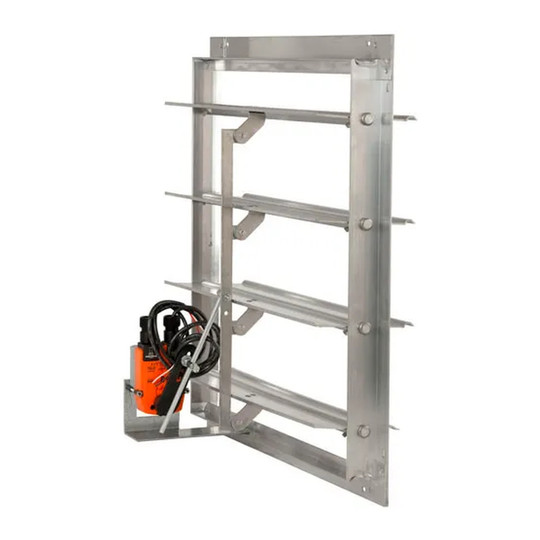

This motorized volume control damper is designed for HVAC professionals and facility teams managing airflow in supply or exhaust systems. It provides powered opening and spring-assisted closing to help regulate airflow at wall or curb installations.

The damper has a 1-1/2-inch flanged frame with welded corners, 6-inch-wide center-pivoted blades, and parallel blade action through a 90-degree rotation. Stainless steel jamb seals help limit light air and moisture entry. An internally mounted, factory-installed 100-240V power-open/spring-close motor with end switches is included. The damper can be mounted vertically or horizontally.

Key Features:

  • Motorized operation: Power-open and spring-close operation supports controlled airflow management.
  • End switches: Provides position-switching capability with the installed motor.
  • Center-pivoted blades: Allows blades to rotate through 90 degrees with parallel movement.
  • Flanged welded frame: Welded frame corners add strength for installation.
  • Stainless steel jamb seals: Helps reduce entry of light air and moisture.
  • Flexible mounting: Can be installed in vertical or horizontal positions on walls or curbs.

Choose this 12-inch flanged motorized damper for supply or exhaust airflow control where powered operation, parallel blade action, and vertical or horizontal mounting are needed.

Country of Origin: US
Material: Aluminum
Product Depth: 9
Product Height: 15
Product Type: Dampers
Product Width: 16
Quantity Included: 1
Manufacturer Part Number: AMD 12
Weight: 10 lbs
Diameter: 12 in
Free Area: 0.84 ft³
Max Pressure In W.G.: 4 in
Max Velocity: 3500 ft/min
Rough Opening: 13 x 13 in
Brand Name: Air Conditioning Products
For Use With: 12" Exhaust or Supply Fans
Manufacturers Part Number: AMD 12
Mounting Location: Vertical or Horizontal
Number of Panels: 1
Type: Motorized
Warranty: 1 yr
Shipping Method: Parcel
Width: 9.00 in
Height: 15.00 in
Depth: 16.00 in
!
